Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front combination lamp. Refer to , "REMOVAL AND INSTALLATION ".
  2. Remove fender protector. Refer to , "REMOVAL AND INSTALLATION ".
  3. Remove front half of center mud guard. Refer to , "REMOVAL AND INSTALLATION ".
  4. Remove front fender.
  5. Installation is in the reverse order of removal.

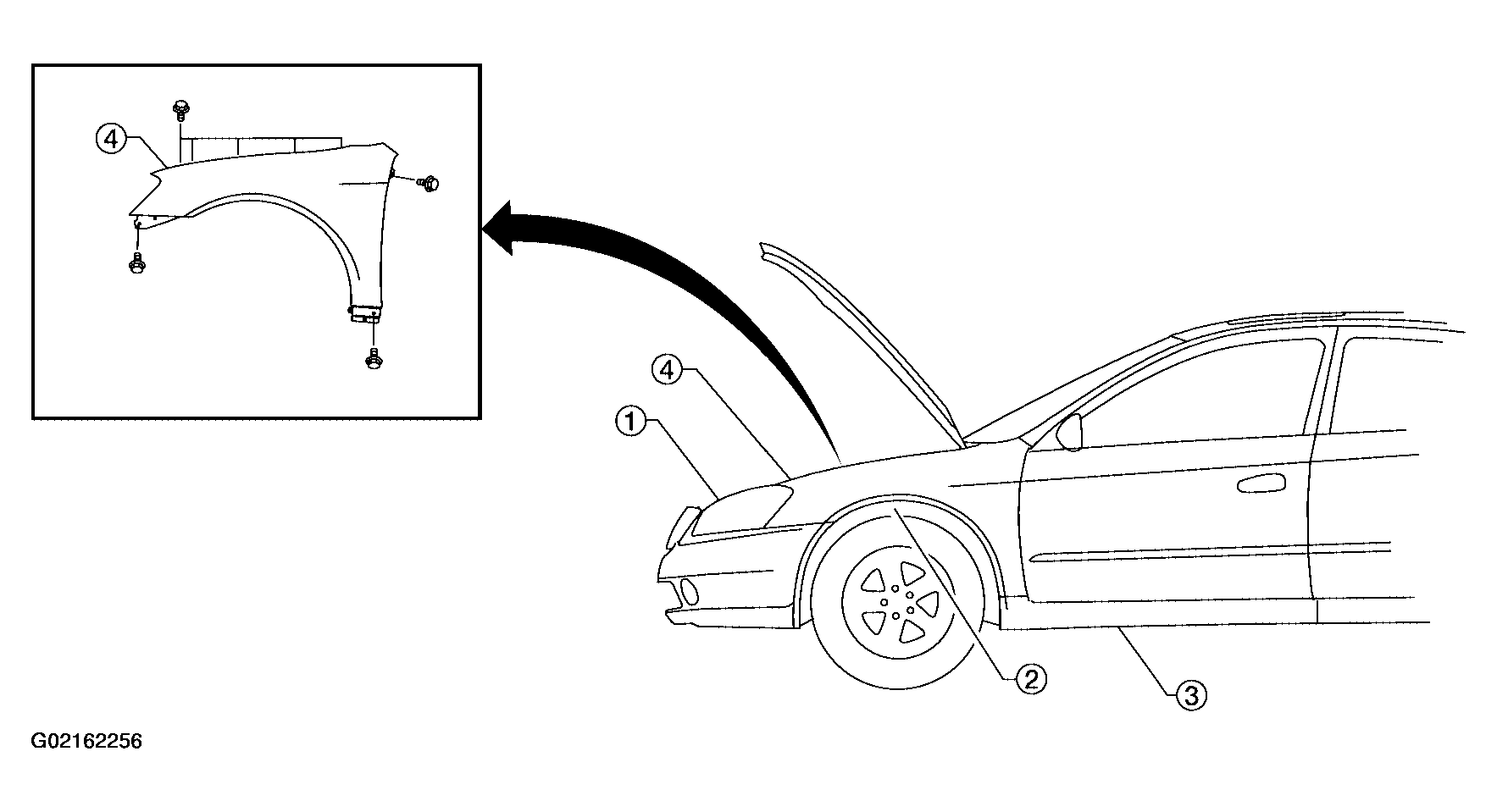

    Fig 1: Removing And Installing Front Fender
    G02162256Courtesy of NISSAN MOTOR CO., U.S.A.
