Removal and Installation
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

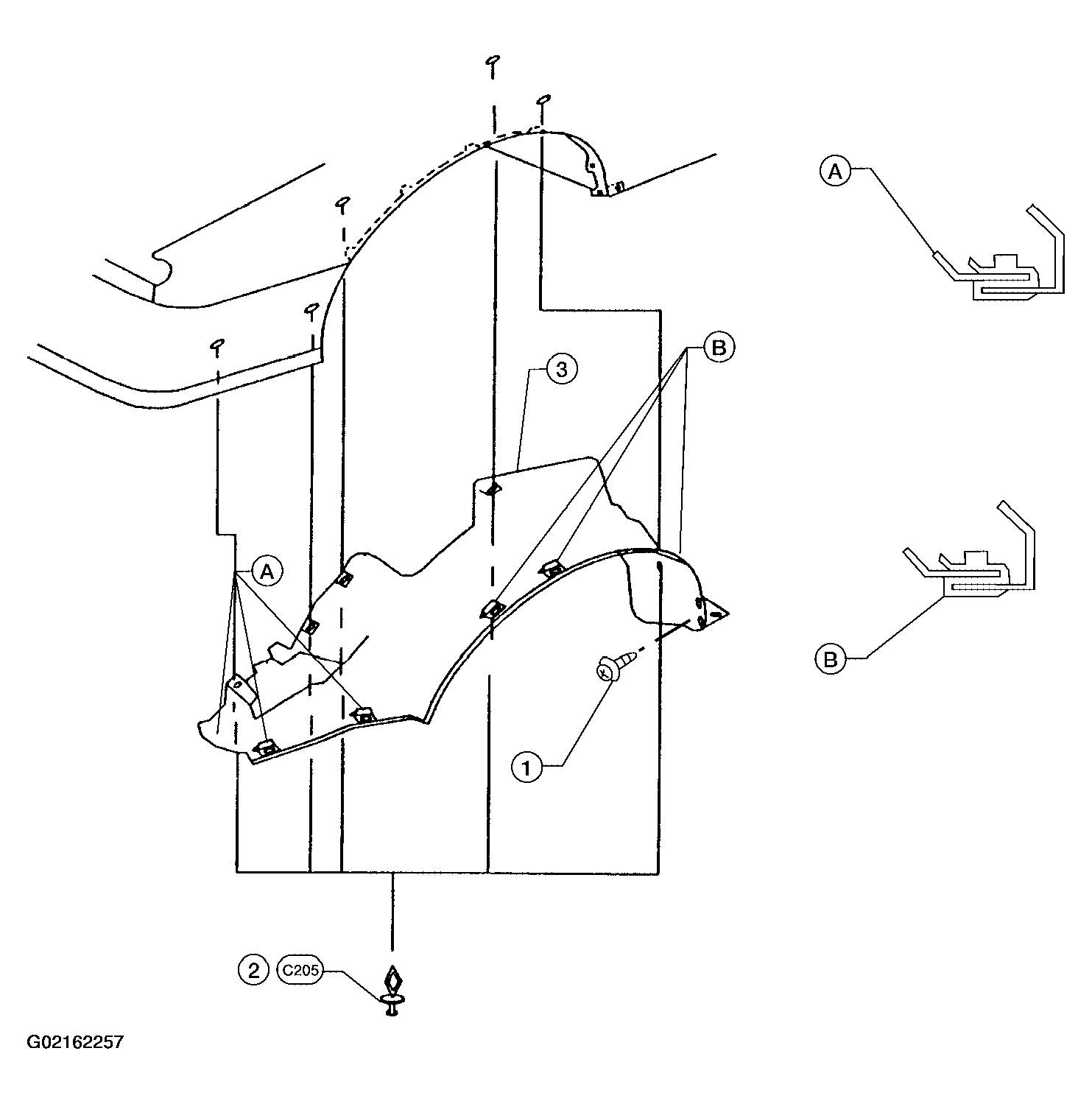

For clips and/or fasteners identified in repair procedures and/or figures, refer to the corresponding numbers in Figure-Figure
Courtesy of NISSAN MOTOR CO., U.S.A.
- Remove screw from center mudguard.
- Remove pushpins.
- Remove fender protector.
- Installation is in the reverse order of removal.
