Removal and Installation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

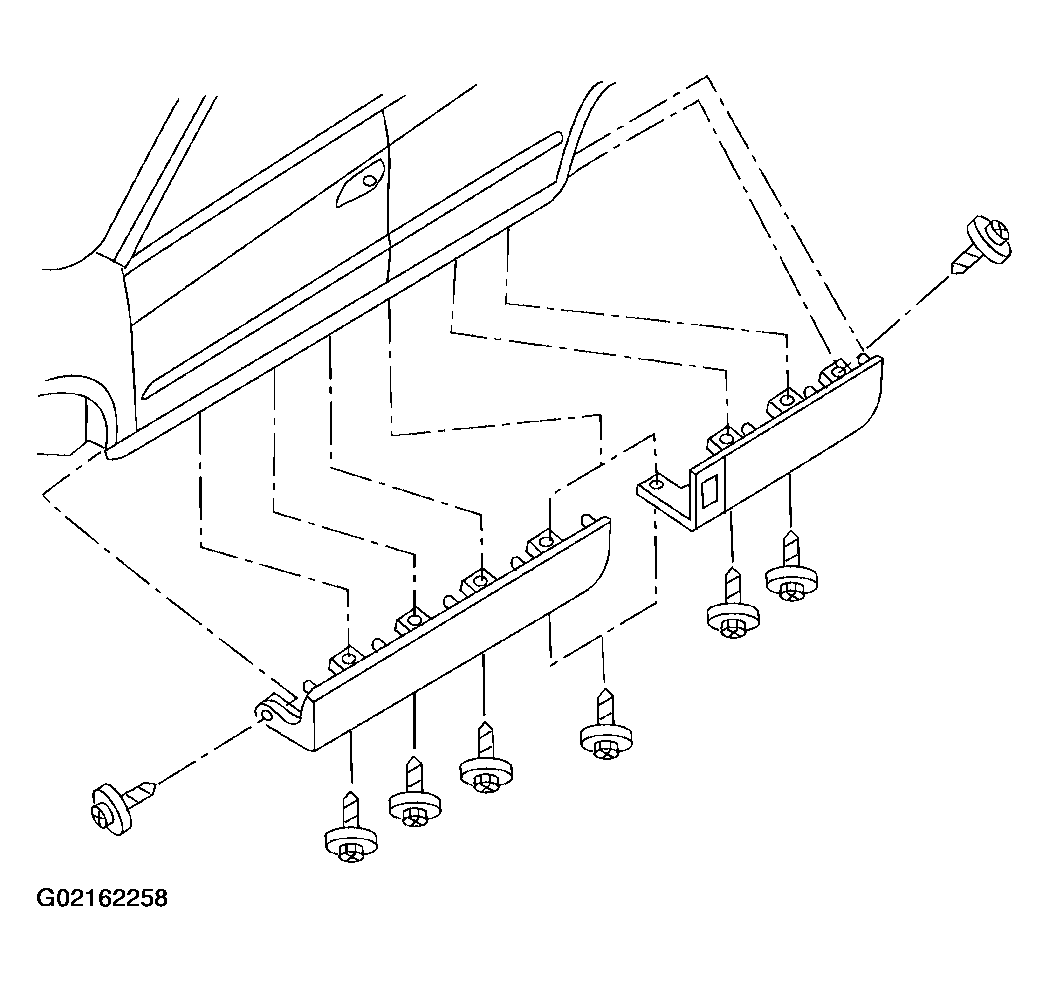

Fig 1: Removing And Installing Mudguard
G02162258Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove screws.
  2. Remove center mudguard.
  3. Installation is in the reverse order of removal.
