1. Check Before Engine Is Started

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK O/D OFF INDICATOR LAMP
    1. Park vehicle on flat surface.
    2. Move selector lever to P position.
    3. Turn ignition switch to OFF position. Wait at least 5 seconds.
    4. Turn ignition switch to ON position. (Do not start engine.)
    5. Does O/D OFF indicator lamp come on for about 2 seconds?

    Yes or No

    1. Yes: GO TO 2.
    2. No: Stop ROAD TEST. Go to 1. O/D OFF Indicator Lamp Does Not Come On .

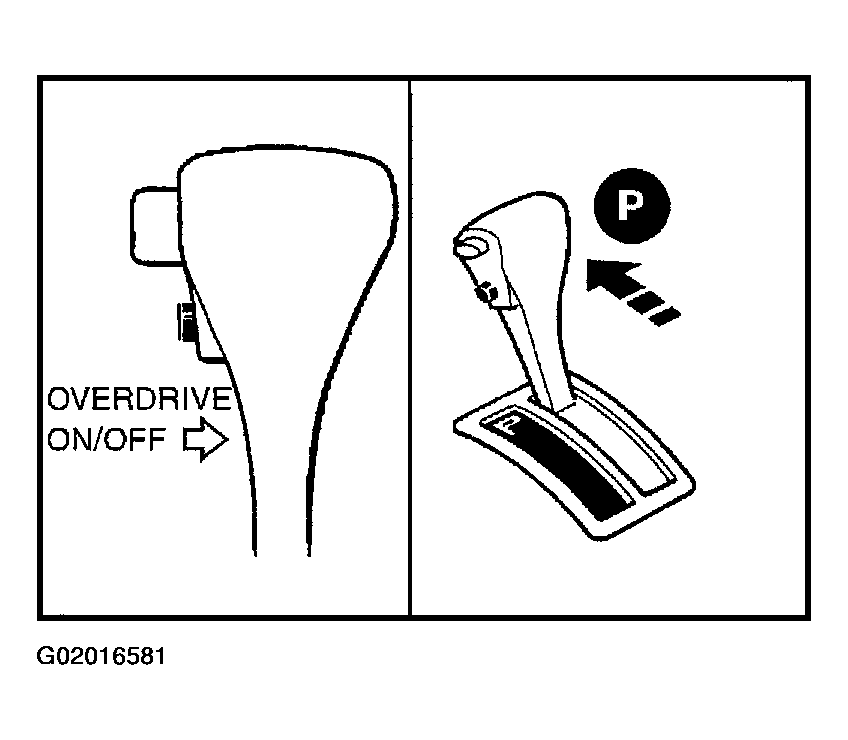

      Fig 1: Moving A/T Selector Lever To "P" Position
      G02016581Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK O/D OFF INDICATOR LAMP

    Does O/D OFF indicator lamp flicker for about 8 seconds?

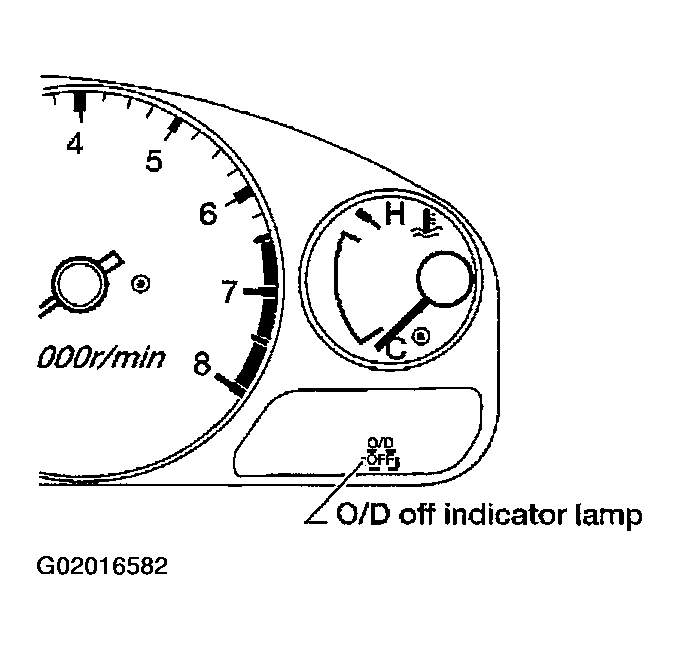

    Fig 2: Identifying Overdrive Off Indicator Lamp Display
    G02016582Courtesy of NISSAN MOTOR CO., U.S.A.

    Yes or No

    1. Yes: Perform self-diagnosis and check NG items on the Diagnostic Worksheet . Refer to TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) .
    2. No:
      1. Turn ignition switch to OFF position.
      2. Perform self-diagnosis and note NG items. Refer to TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) .
      3. Go to 2. CHECK AT IDLE .
