TCM Self-Diagnostic Procedure (No Tools)

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CHECK O/D OFF INDICATOR LAMP
1. Move selector lever to P position.

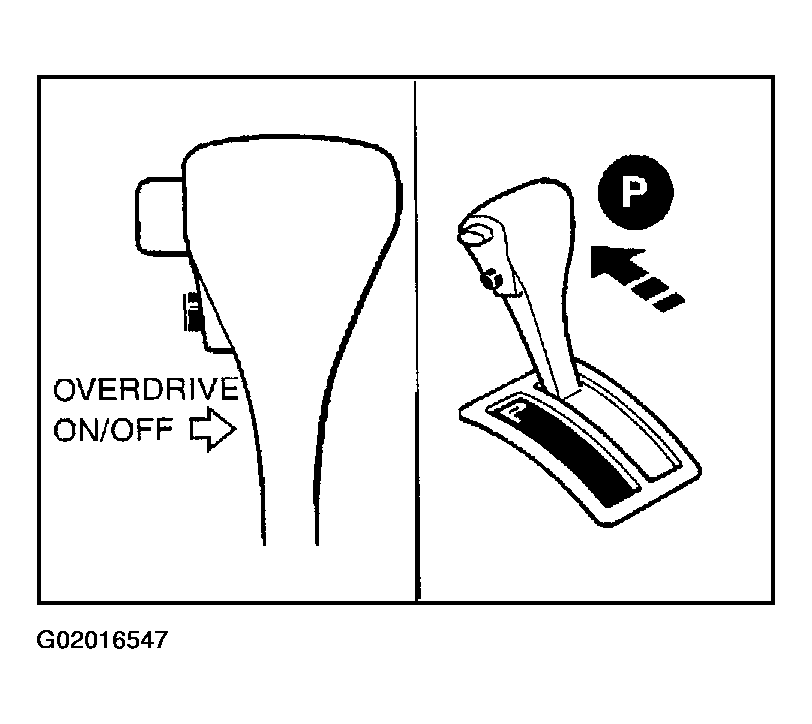

  Fig 1: Locating Overdrive On/Off Switch
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Start engine and warm it up to normal engine operating temperature.
2. Turn ignition switch to OFF position.
3. Wait 5 seconds.
4. Turn ignition switch to ON position.
  (Do not start engine.)
5. Does O/D OFF indicator lamp come on for about 2 seconds?

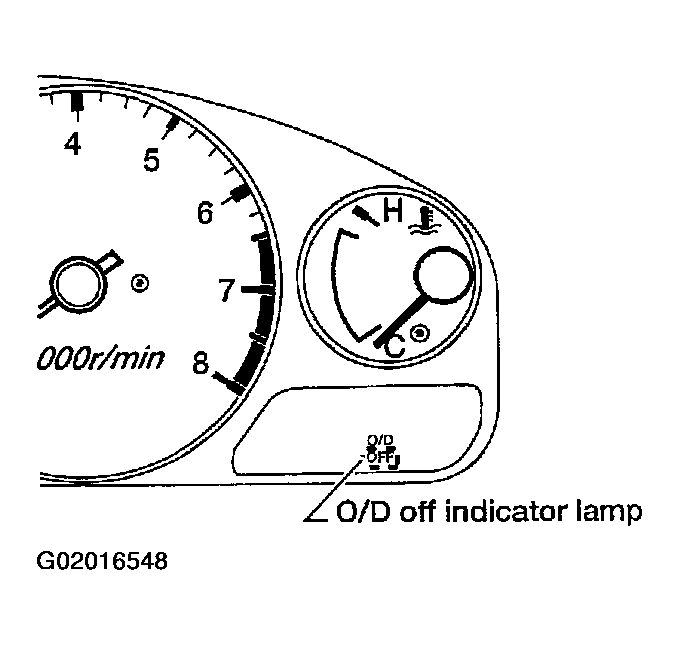

  Fig 2: Identifying Over Drive Off Indicator Lamp Display
  Courtesy of NISSAN MOTOR CO., U.S.A.
Yes or No
1. Yes: GO TO 2.
2. No: Stop procedure. Perform 1. O/D OFF Indicator Lamp Does Not Come On before proceeding.
JUDGEMENT PROCEDURE STEP 1
1. Turn ignition switch to OFF position.
2. Turn ignition switch to ACC position.
3. Move selector lever from P to D position.

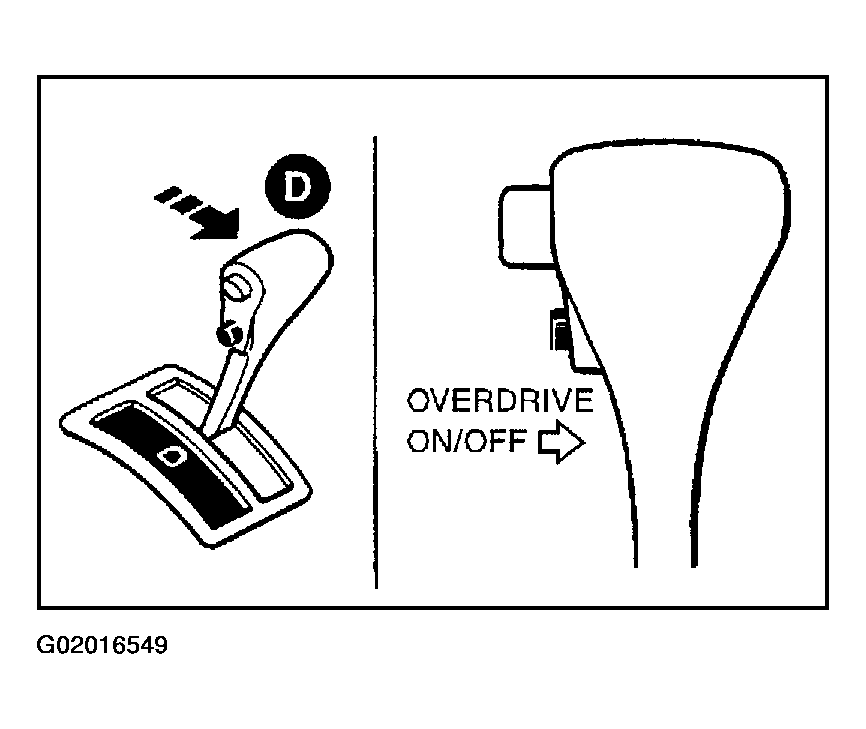

  Fig 3: Moving A/T Selector Lever To "D" Position
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Turn ignition switch to ON position.
  (Do not start engine.)
5. Depress and hold overdrive control switch in OFF position (the O/D OFF indicator lamp will be ON) until directed to release the switch. (If O/D OFF indicator lamp does not come on, refer to Steps 3 and 4 in 1. O/D OFF Indicator Lamp Does Not Come On ).
6. Turn ignition switch to OFF position.
7. Turn ignition switch to ON position (Do not start engine.)
8. Release the overdrive control switch (the O/D OFF indicator lamp will be OFF).
9. Wait 2 seconds.
10. Move selector lever to 2 position.

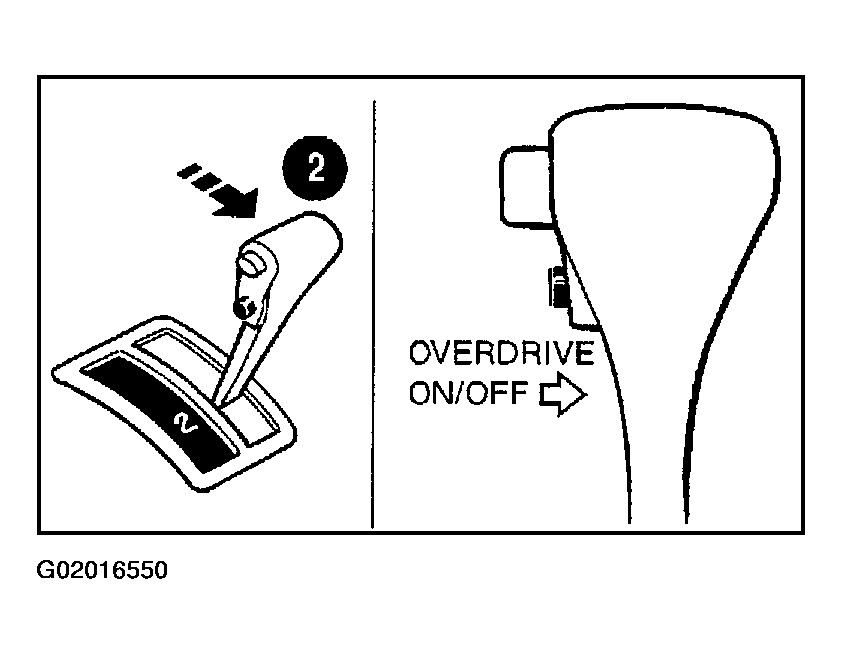

  Fig 4: Moving Selector Lever To 2 Position
  Courtesy of NISSAN MOTOR CO., U.S.A.
11. Depress and release overdrive control switch in ON position until next step is completed (the O/D OFF indicator lamp will be ON).
12. Depress and hold the overdrive control switch (the O/D OFF indicator lamp will be OFF) until directed to release the switch.
  1. GO TO 3.
JUDGEMENT PROCEDURE STEP 2
1. Move selector lever to 1 position.

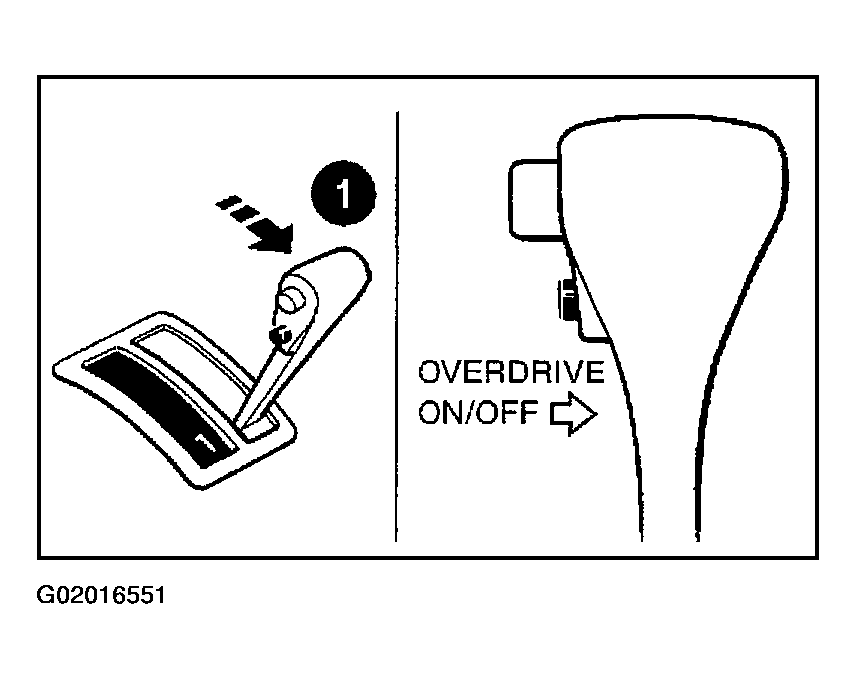

  Fig 5: Moving Selector Lever To 1 Position
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Release the overdrive control switch.
3. Depress and release the overdrive control switch (the O/D OFF indicator lamp will be ON).
4. Depress and release the overdrive control switch (the O/D OFF indicator lamp will be OFF).
5. Depress and hold the overdrive control switch (the O/D OFF indicator lamp will be ON) until directed to release the switch.
6. Depress accelerator pedal fully and release it.
7. Release the overdrive control switch (the O/D OFF indicator lamp will begin to flash ON and OFF).
  1. GO TO 4.
CHECK SELF-DIAGNOSTIC CODE
Check O/D OFF indicator lamp.

Fig 6: Identifying Over Drive Off Indicator Lamp Display
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to JUDGEMENT OF SELF-DIAGNOSIS CODE .
1. DIAGNOSIS END
