1. O/D OFF Indicator Lamp Does Not Come On

SYMPTOM: O/D OFF indicator lamp does not come on for about 2 seconds when turning ignition switch to ON  .

1. CHECK TCM POWER SOURCE
   1. Turn ignition switch to ON position.

      (Do not start engine.)

   2. Check voltage between TCM terminals 10, 19, 28 and ground.

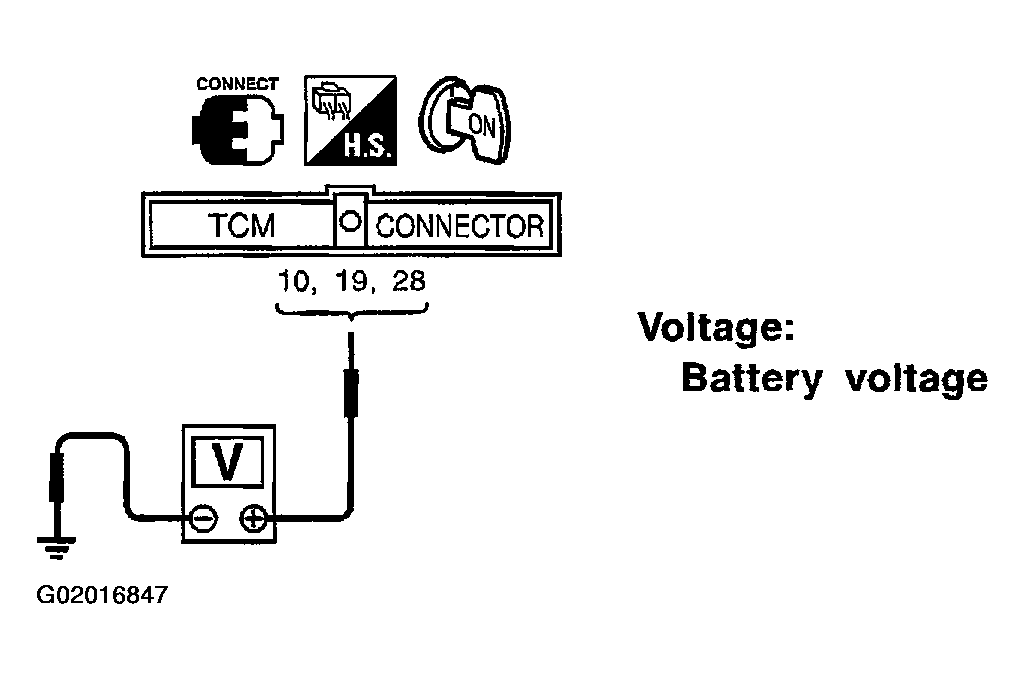

      Fig 1: Checking Transmission Control Module Power Source

      Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO 2.
   2. NG: GO TO  3.
2. CHECK POWER SOURCE STEP 2
   1. Turn ignition switch to OFF position.
   2. Check voltage between TCM terminal 28 and ground.

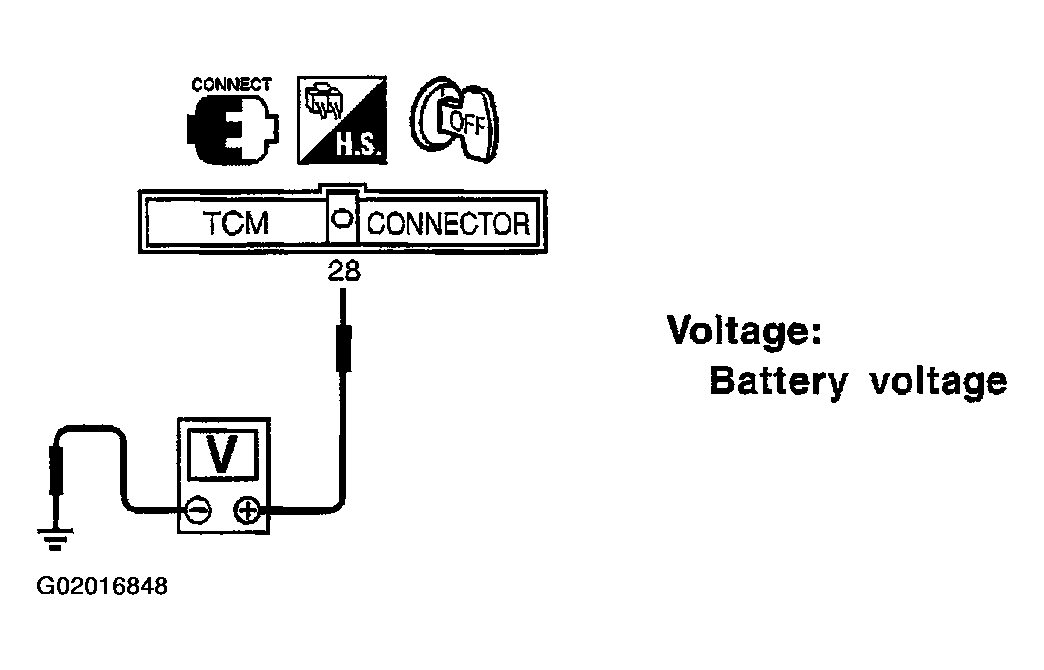

      Fig 2: Checking Transmission Control Module Power Source Step 2

      Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO  4.
   2. NG: GO TO 3.
3. DETECT MALFUNCTIONING ITEM

   Check the following items:

   • Harness for short or open between ignition switch and TCM (Main harness) Refer to WIRING DIAGRAM - AT - MAIN .
   • Ignition switch and fuse

     Refer to POWER DISTRIBUTION .

   OK or NG

   1. OK: GO TO 4.
   2. NG: Repair or replace damaged parts.
4. CHECK TCM GROUND CIRCUIT
   1. Turn ignition switch to OFF position.
   2. Disconnect TCM harness connector.
   3. Check continuity between TCM terminals 25, 48 and ground.

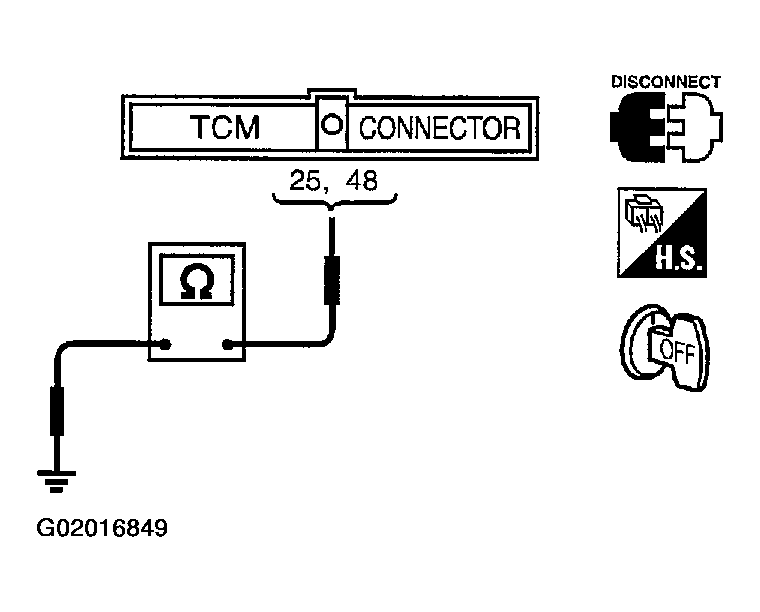

      Fig 3: Checking Transmission Control Module Ground Circuit

      Courtesy of NISSAN MOTOR CO., U.S.A.

      Continuity should exist.

   OK or NG

   1. OK: GO TO 5.
   2. NG: Repair open circuit or short to ground or short to power in harness or connectors. Refer to Wiring Diagram - AT - MAIN .
5. CHECK LAMP CIRCUIT
   1. Turn ignition switch to OFF position.
   2. Check resistance between TCM terminals 10 and 13.

      Resistance: 50-100Ω

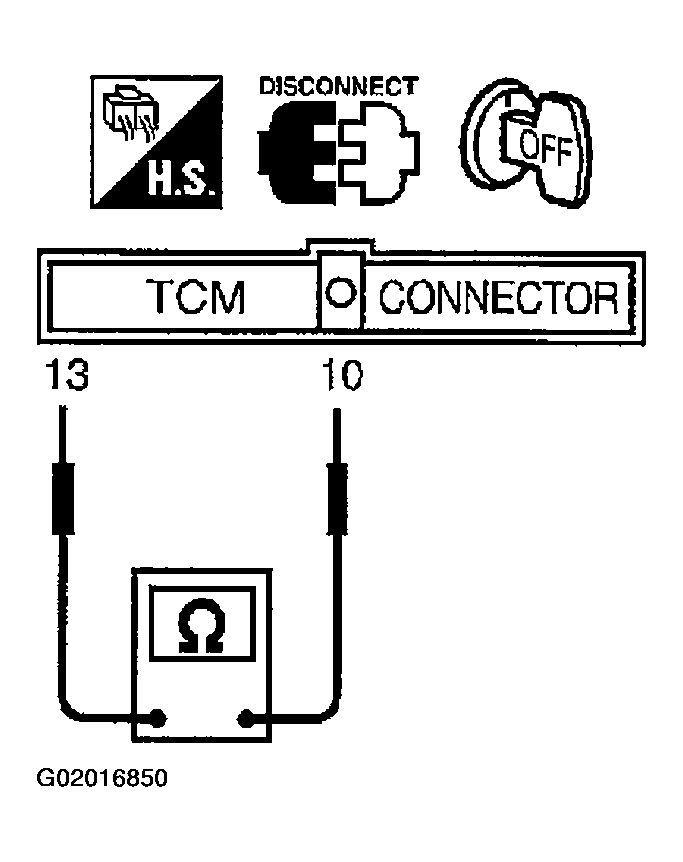

      Fig 4: Checking Lamp Circuit

      Courtesy of NISSAN MOTOR CO., U.S.A.
   3. Reinstall any part removed.

   OK or NG

   1. OK: GO TO  7.
   2. NG: GO TO 6.
6. DETECT MALFUNCTIONING ITEM

   Check the following items:

   • Harness and fuse for short or open between ignition switch and O/D OFF indicator lamp (Main harness) Refer to POWER DISTRIBUTION .
   • Harness for short or open between O/D OFF indicator lamp and TCM.

   OK or NG

   1. OK: GO TO 7.
   2. NG: Repair or replace damaged parts.
7. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG: GO TO 8.
8. CHECK TCM INSPECTION
   1. Perform TCM input/output signal inspection.
   2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

   OK or NG

   1. OK: INSPECTION END
   2. NG: Repair or replace damaged parts.
