1. Check Before Engine Is Started

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CHECK O/D OFF INDICATOR LAMP
1. Park vehicle on flat surface.
2. Move A/T selector lever to P position.
3. Turn ignition switch to OFF position. Wait at least 5 seconds.
4. Turn ignition switch to ON position. (Do not start engine.)
5. Does O/D OFF indicator lamp come on for about 2 seconds?

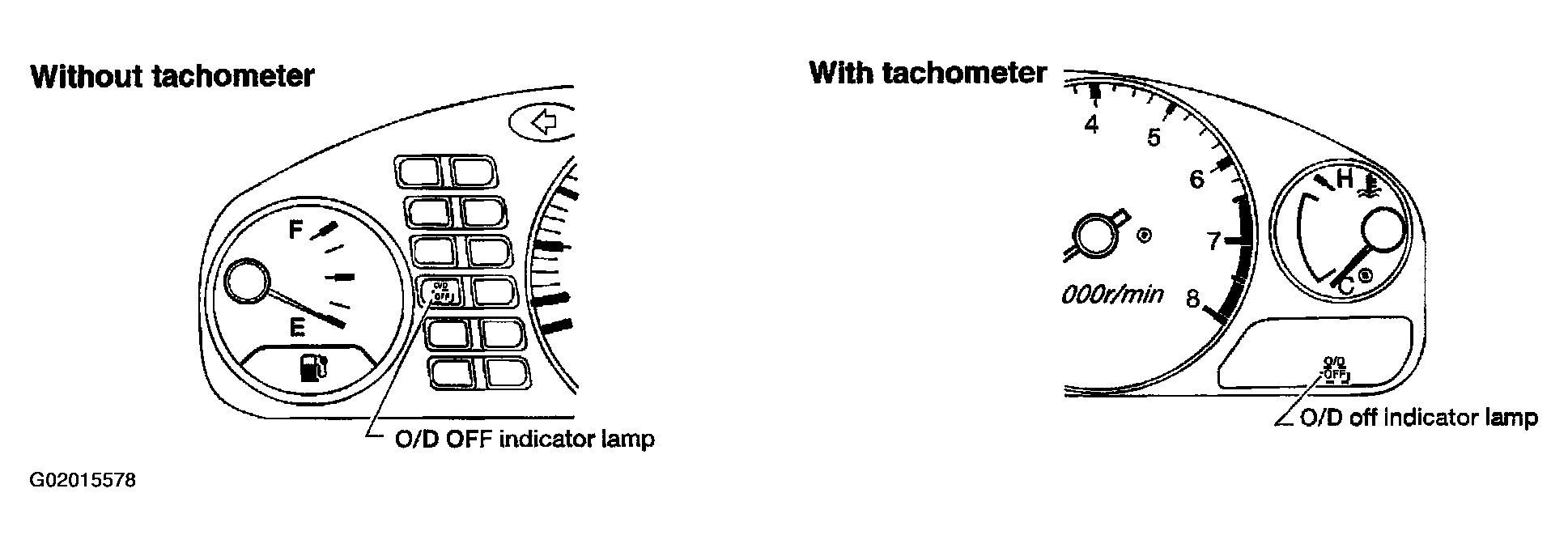

  Fig 1: Locating O/D Off Indicator Lamp
  Courtesy of NISSAN MOTOR CO., U.S.A.
Yes or No
1. Yes: GO TO 2.
2. No: Stop ROAD TEST. Go to 1. O/D OFF INDICATOR LAMP DOES NOT COME ON .
CHECK O/D OFF INDICATOR LAMP
Does O/D OFF indicator lamp flicker for about 8 seconds?

Fig 2: Locating O/D Off Indicator Lamp
Courtesy of NISSAN MOTOR CO., U.S.A.

Yes or No

Yes: Perform self-diagnosis and check NG items on the DIAGNOSTIC WORKSHEET . Refer to TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) .
No:
1. Turn ignition switch to OFF position.
2. Perform self-diagnosis and note NG items.
  Refer to TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) .
3. Go to 2. CHECK AT IDLE .
