Diagnostic Worksheet: Overview

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

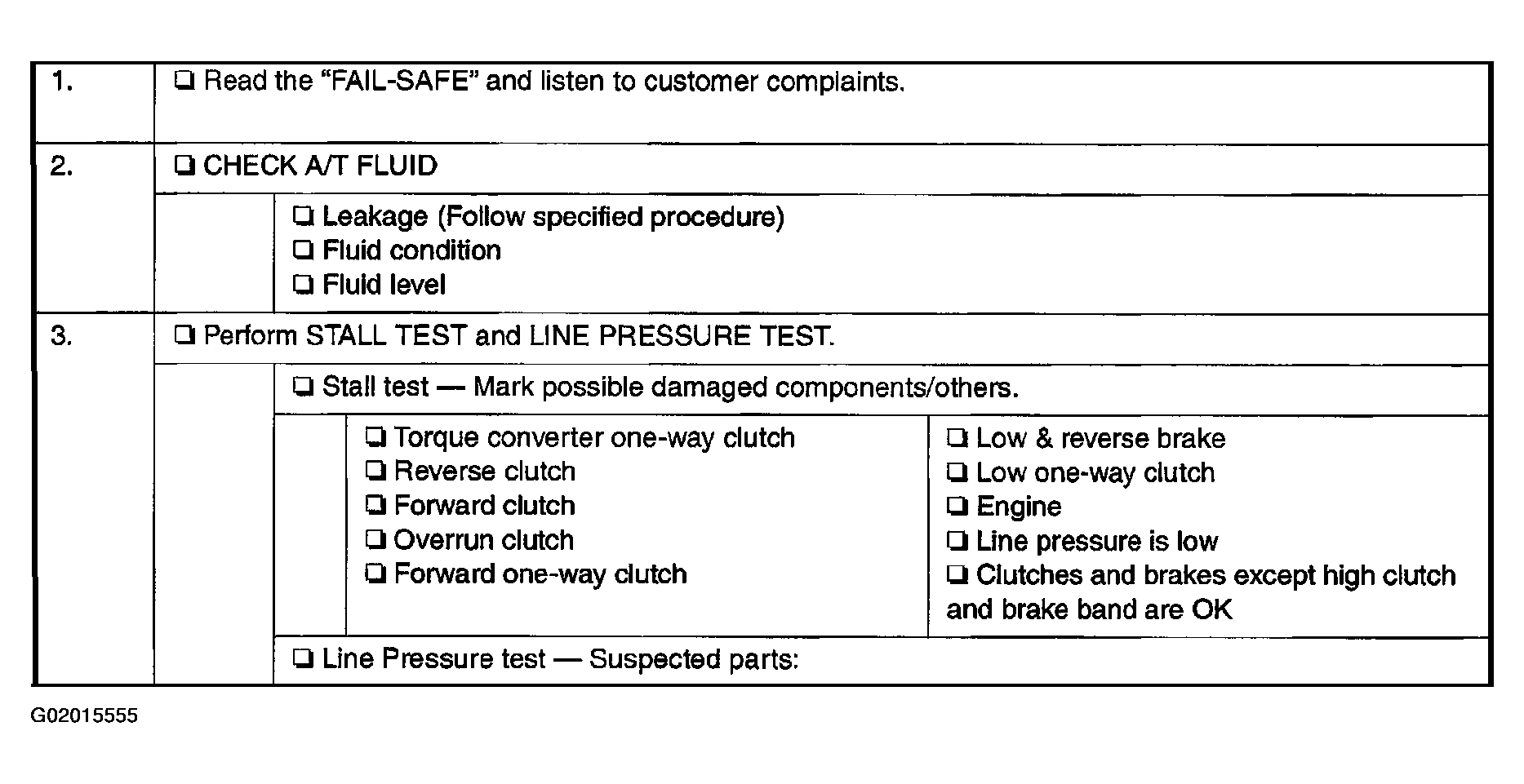

Fig 1: Diagnostic Worksheet (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

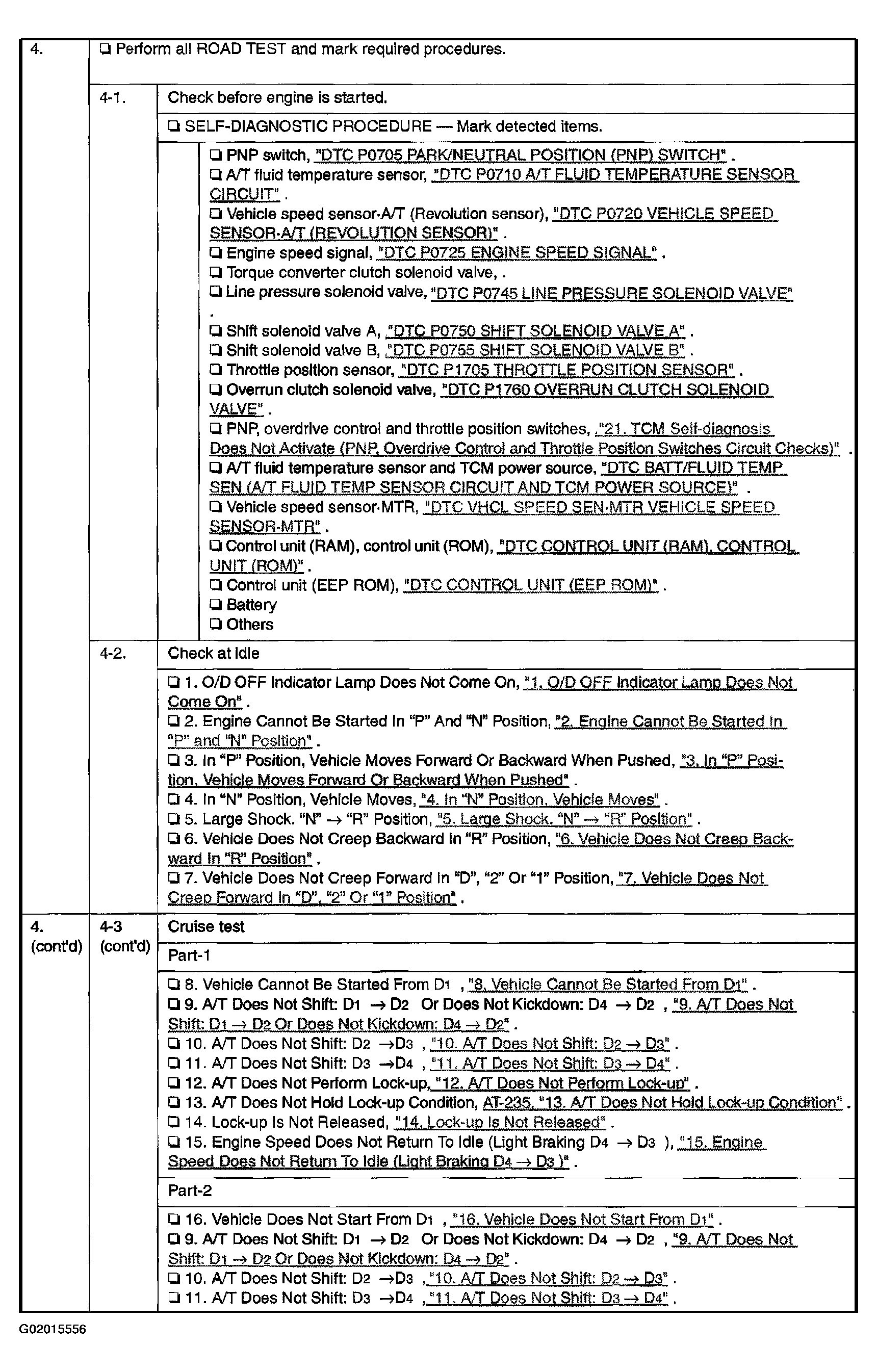

Fig 2: Diagnostic Worksheet (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

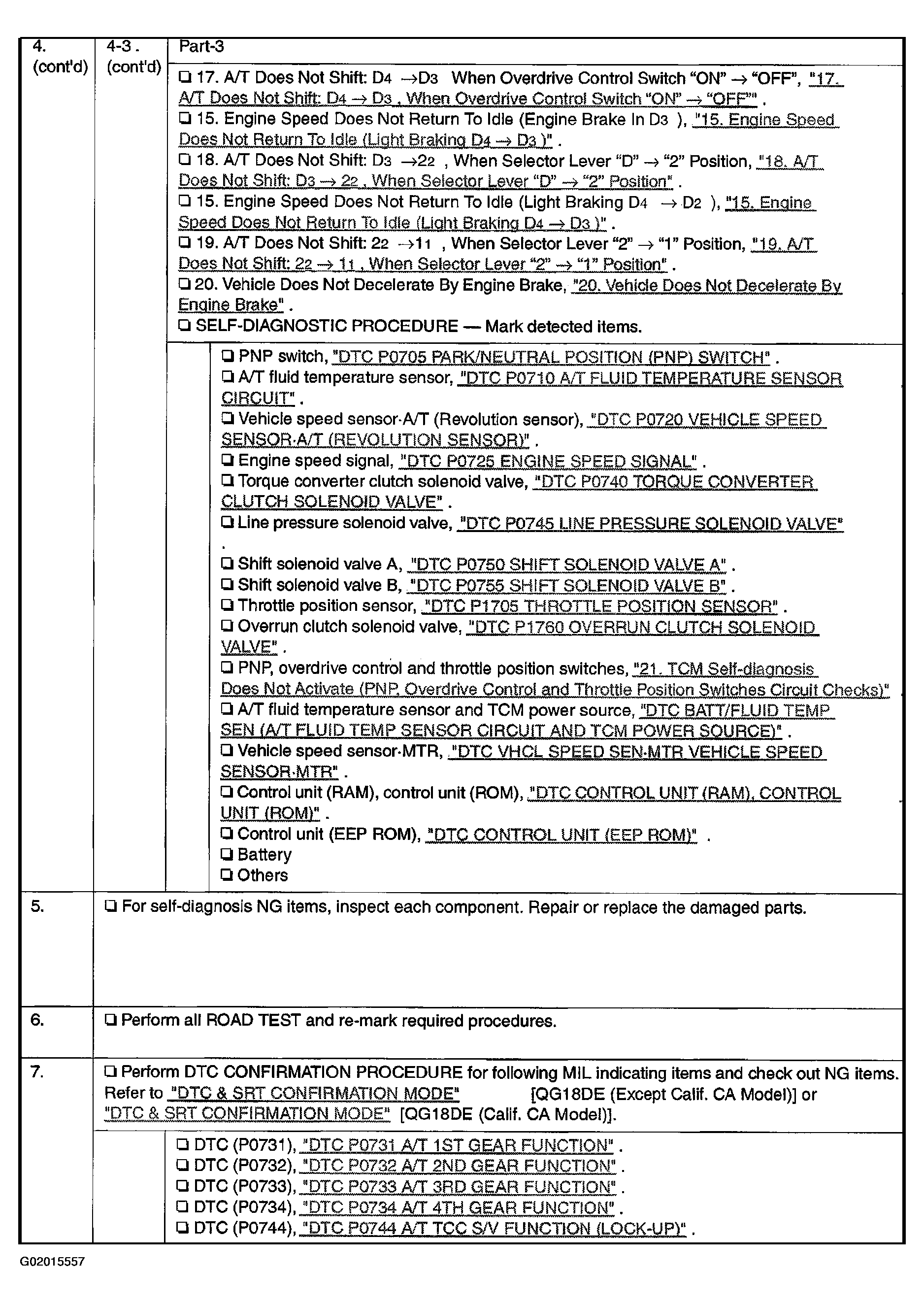

Fig 3: Diagnostic Worksheet (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

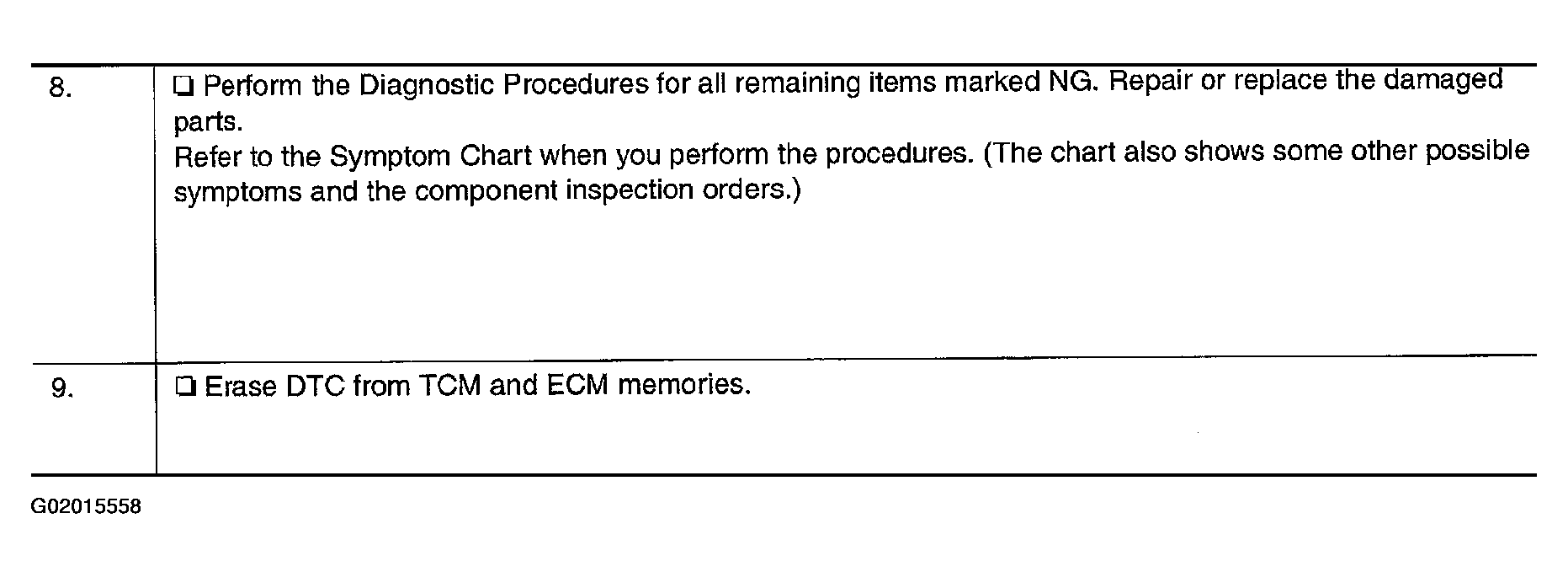

Fig 4: Diagnostic Worksheet (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
