Self-Diagnostic Result Mode: Notes

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Operation procedure

Perform "CONSULT-II SETTING PROCEDURE". Refer to "CONSULT-II SETTING PROCEDURE ".
Touch "SELF-DIAG RESULTS".
Display shows malfunction experienced since the last erasing operation.

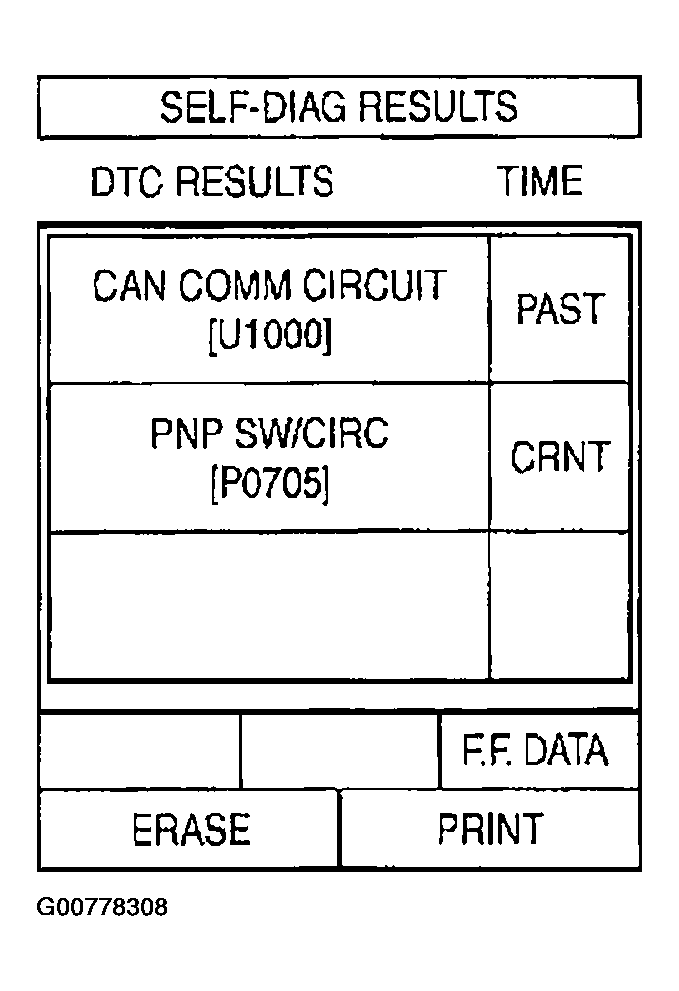

Fig 1: Consult-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
- The details for "TIME" are as follow:
  - "CRNT": Error currently detected with TCM.
  - "PAST": Error detected in the past and memorized with TCM.
- Touch "F.F.DATA" on "SELF-DIAG RESULTS" screen to display freeze frame data. Freeze frame data shows driving condition when malfunction is detected.
  For freeze frame data items, refer to "Display item list ".
