Display item list

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

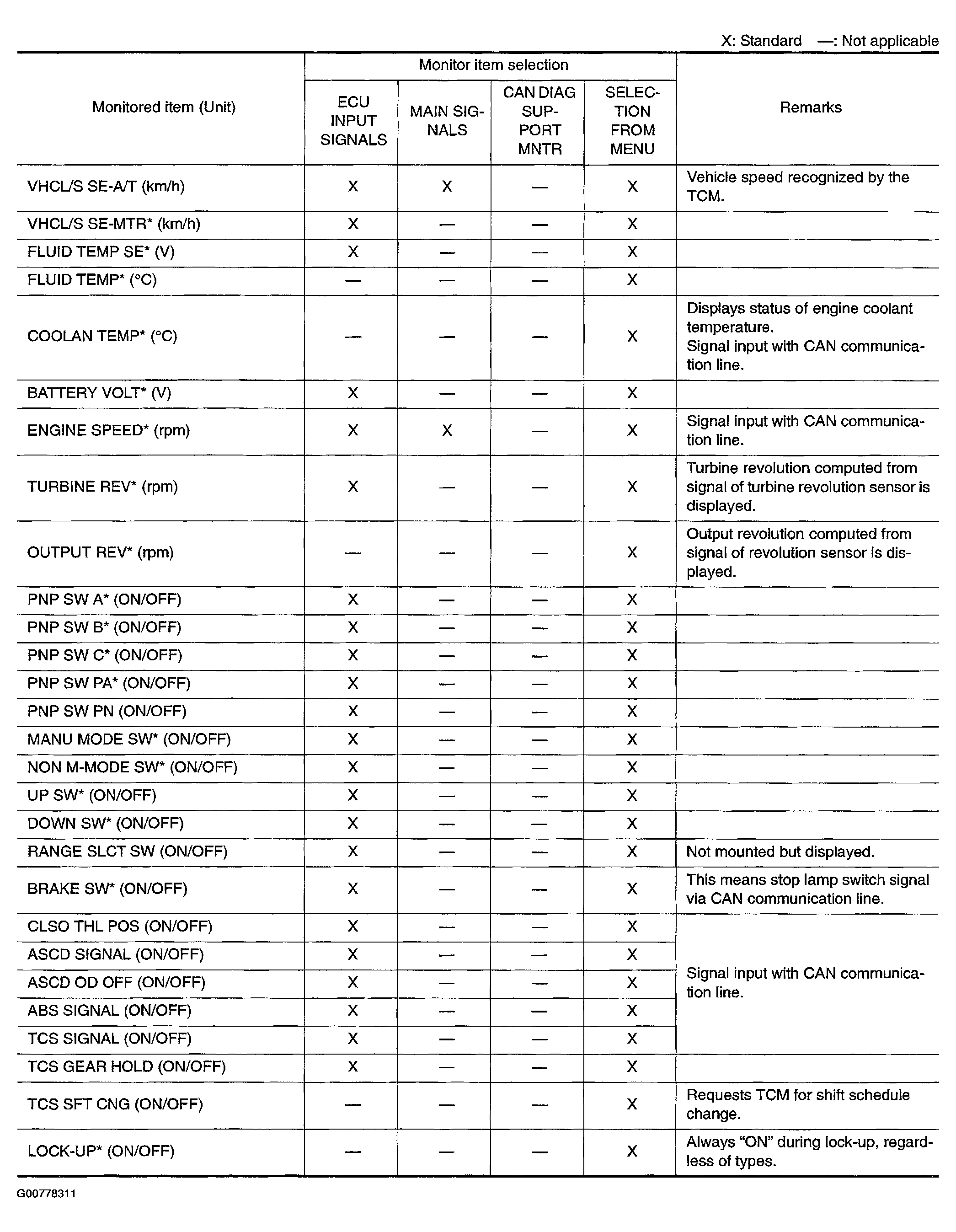

Fig 1: Display item list (1 Of 3)
G00778311Courtesy of NISSAN MOTOR CO., U.S.A.

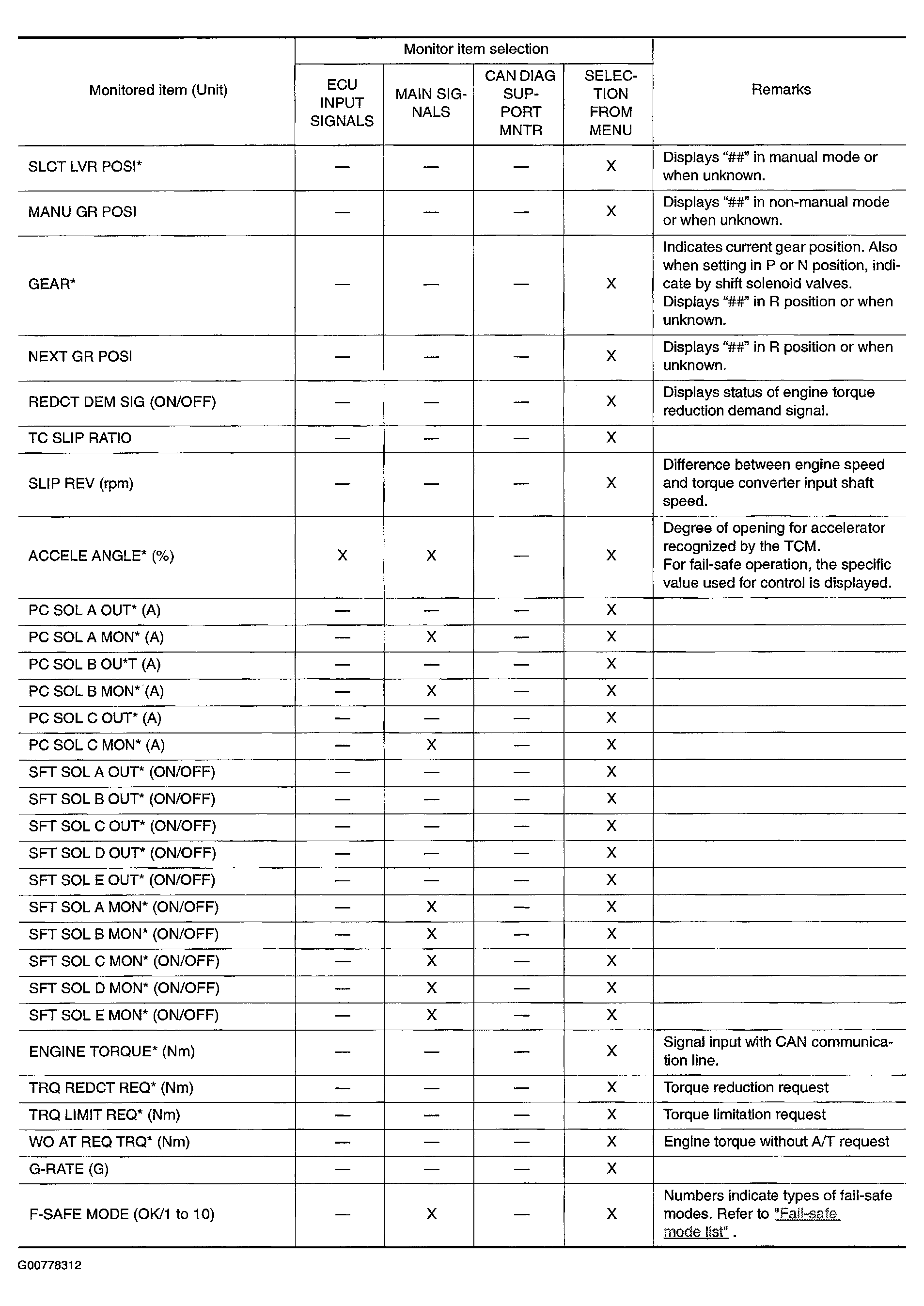

Fig 2: Display item list (2 Of 3)
G00778312Courtesy of NISSAN MOTOR CO., U.S.A.

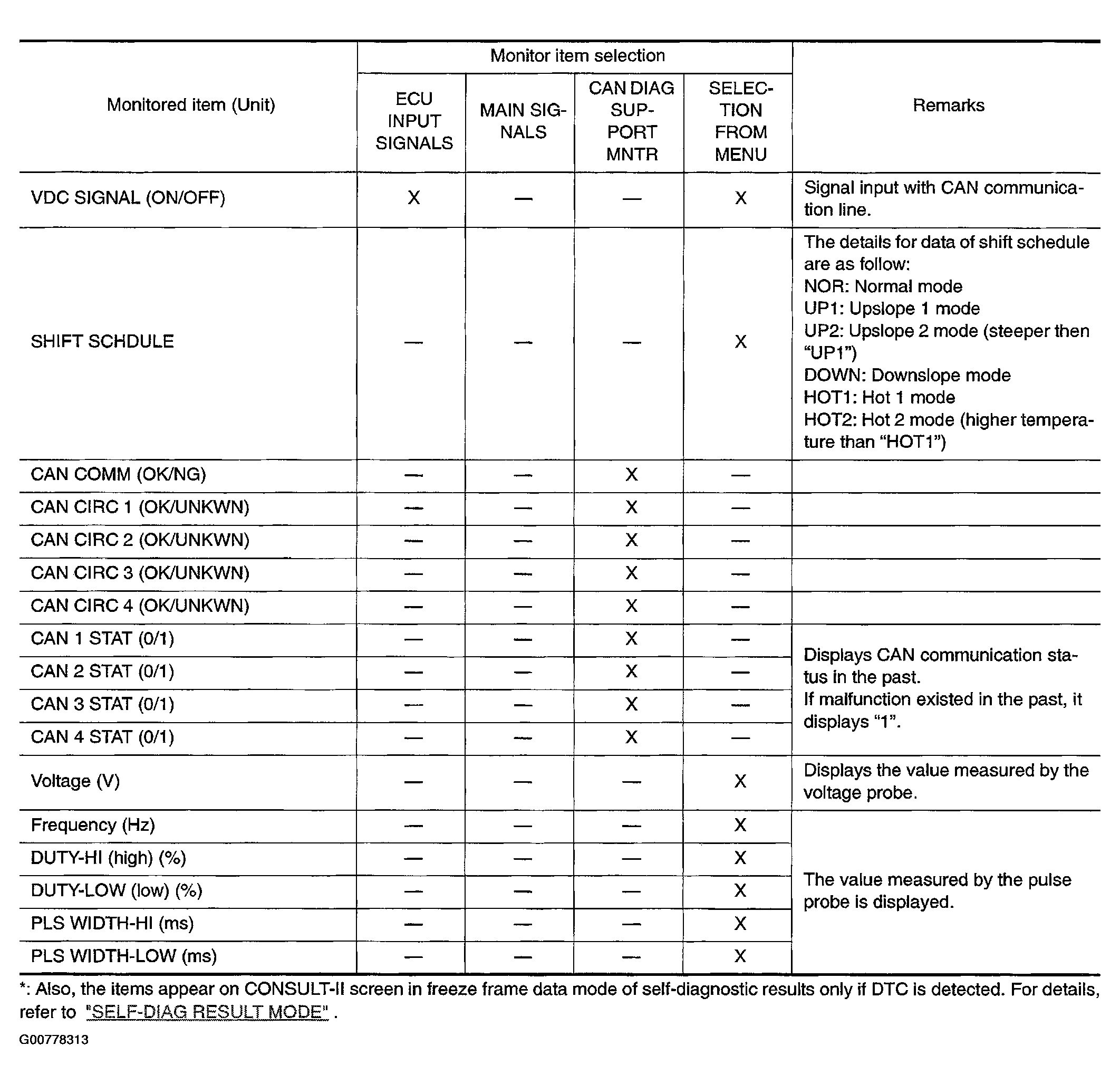

Fig 3: Display item list (3 Of 3)
G00778313Courtesy of NISSAN MOTOR CO., U.S.A.
