Consult-II Setting Procedure

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If Consult-II is used with no connection of Consult-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. Turn ignition switch "OFF".
  2. Connect Consult-II and Consult-II CONVERTER to data link connector, which is located in driver instrument panel (lower).

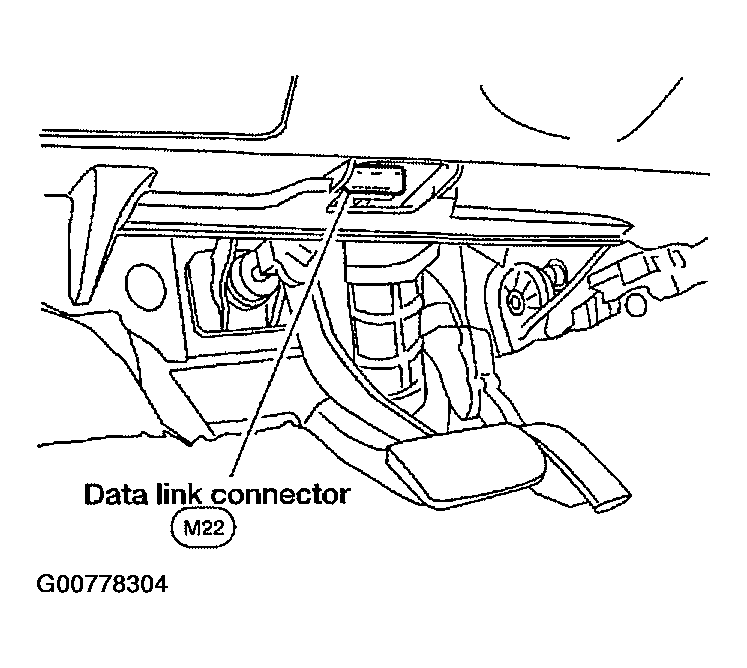

    Fig 1: Locating Data Link Connector (DLC)
    G00778304Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START (NISSAN BASED VHCL)".

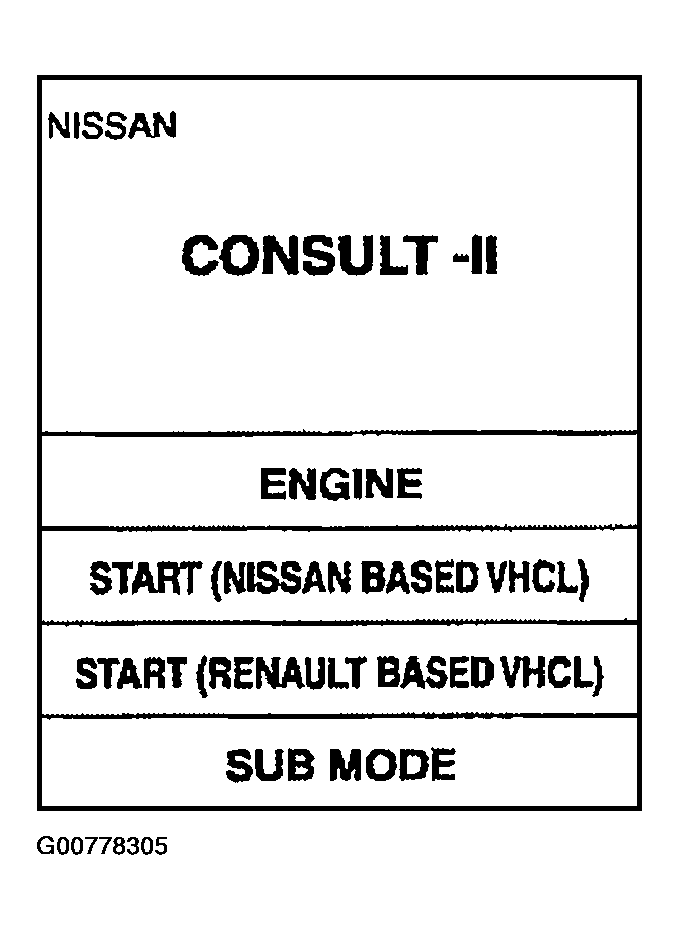

    Fig 2: Consult-II Display Screen
    G00778305Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "TRANSMISSION".

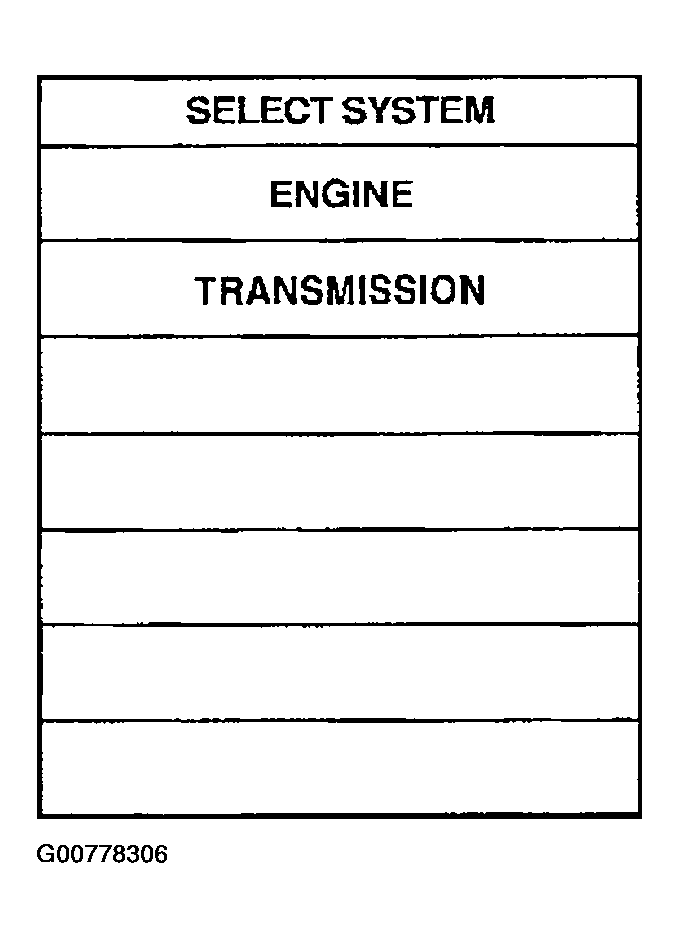

    Fig 3: Consult-II Display Screen
    G00778306Courtesy of NISSAN MOTOR CO., U.S.A.

    If "TRANSMISSION" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

  6. Perform each diagnostic test mode according to each service procedure.
