Center Stack Assembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove DVD-map disk to avoid damage.
Remove center console. Refer to "Center Console ".
Remove cluster lid C. Refer to "Cluster Lid C ".
Remove cluster lid D. Refer to "Cluster Lid D ".
Remove screws from front of NAVI control unit.

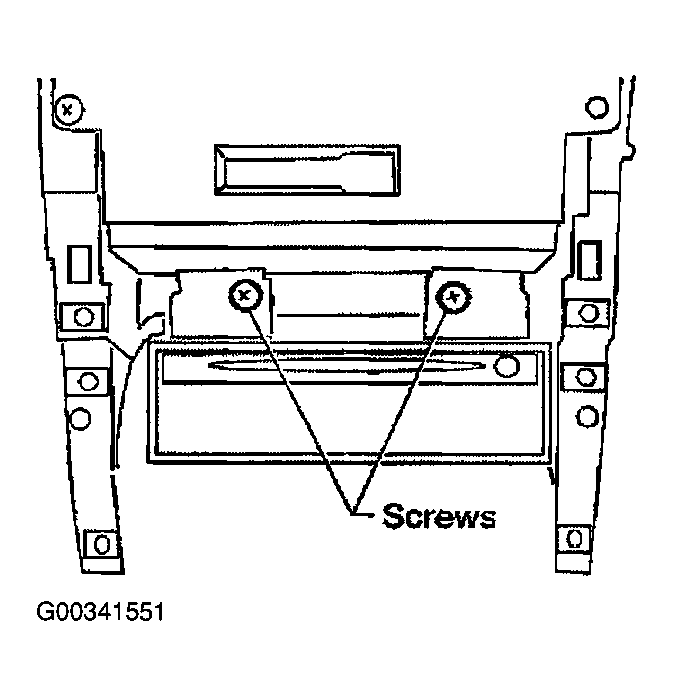

Fig 1: Locating NAVI Control Unit Fasteners (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Pull carpet left of console aside and remove screws.

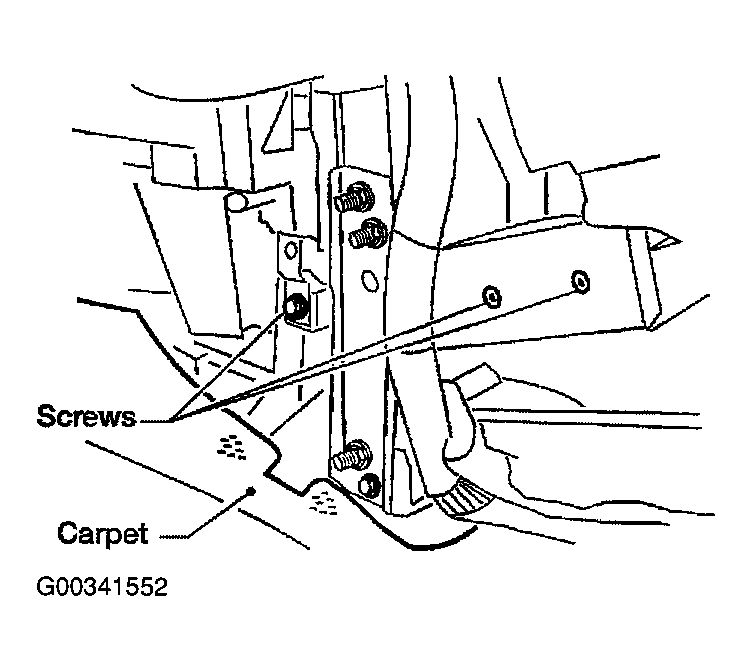

Fig 2: Locating NAVI Control Unit Fasteners (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect NAVI control unit connectors.
Remove NAVI control unit.
Installation is in the reverse order of removal

CAUTION: Cover NAVI control unit with a cloth and avoid contact with console box bracket that may cause scratches or damage to control unit.
Remove screws and remove center stack.
- Disconnect electrical harnesses.
- Unplug GPS antenna.

Installation is in the reverse order of removal.

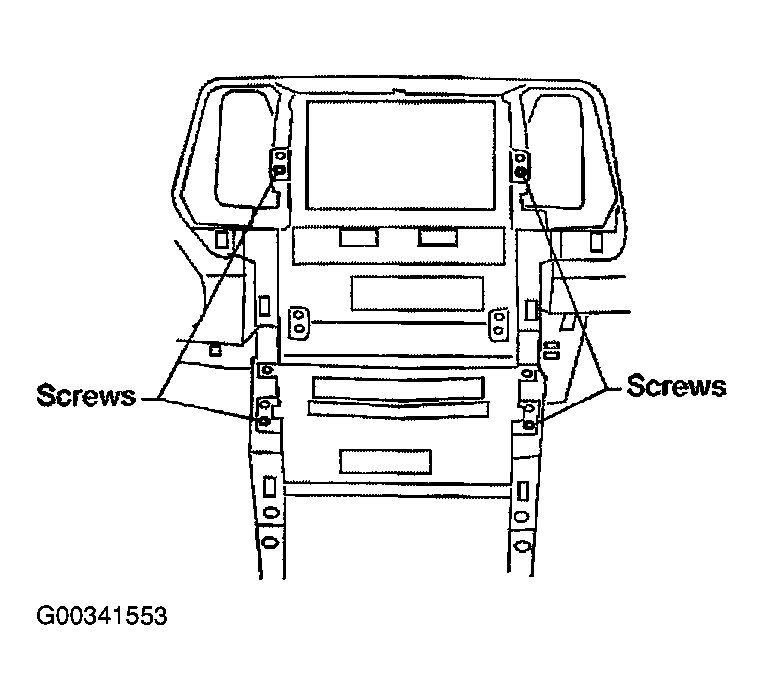

Fig 3: Locating Center Stack Fasteners

Courtesy of NISSAN MOTOR CO., U.S.A.
