Cluster Lid D

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

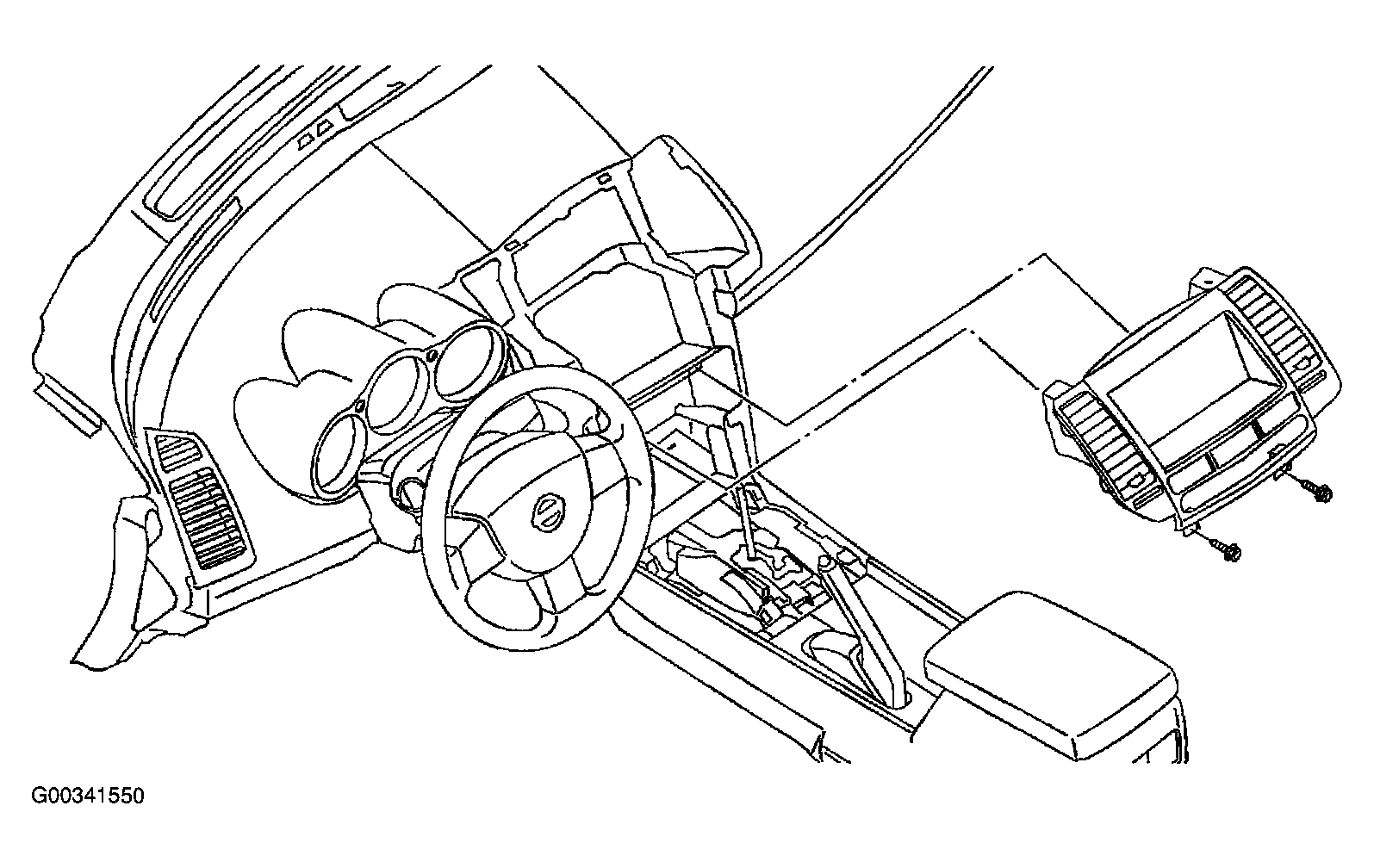

Fig 1: Exploded View Of Cluster Lid D

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove cluster lid C. Refer to "Cluster Lid C ".
Remove cluster lid D.
- Remove screws using power tool.
- Pull lid toward rear of vehicle to release clips.
- Disconnect electrical connector.

Installation is in the reverse order of removal.

CAUTION: When removing and installing, place shop cloths onto surrounding parts to protect A/T or M/T finisher and center console from damage.
