Cluster Lid C

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

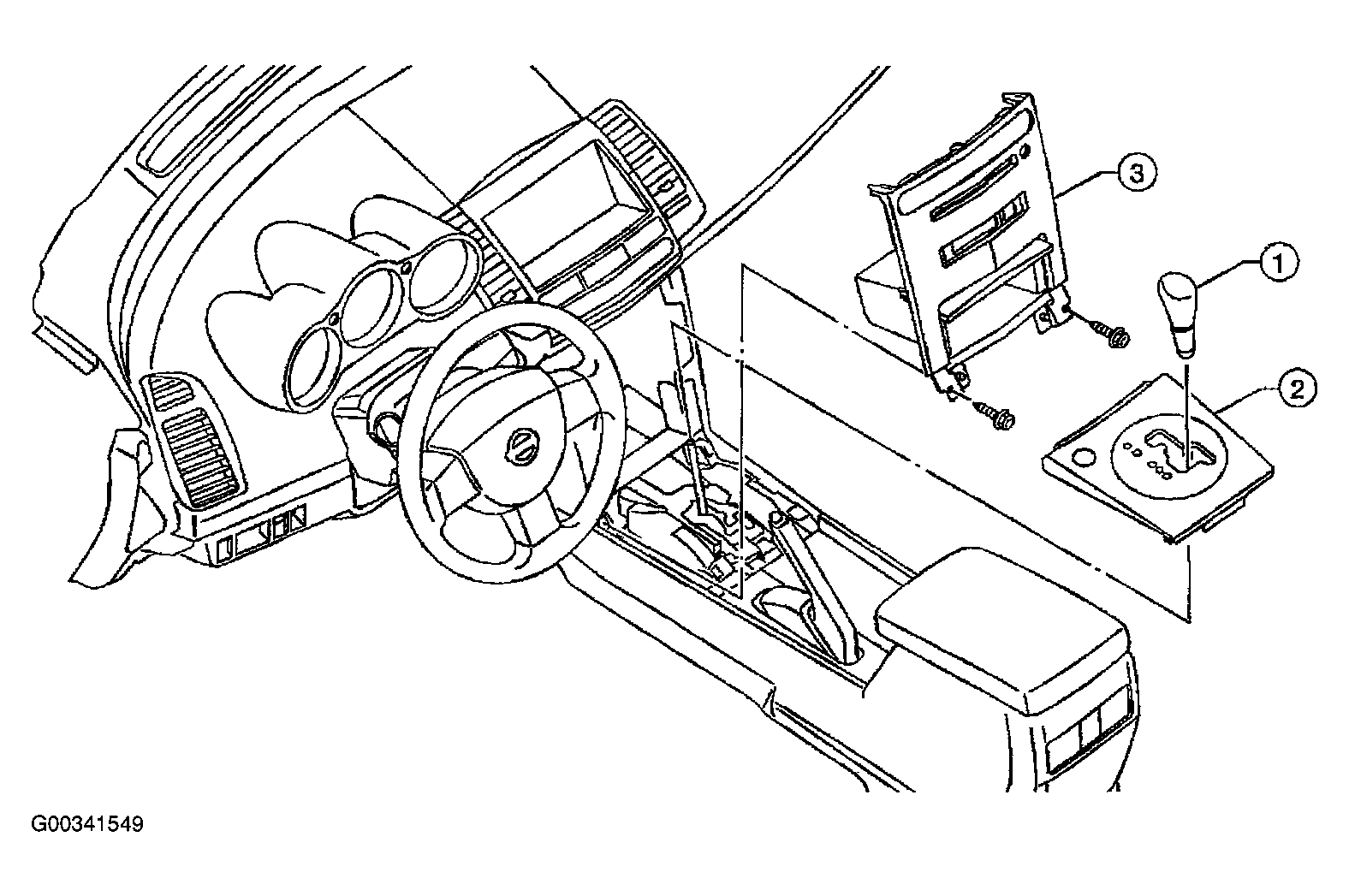

Fig 1: Exploded View Of Cluster Lid C

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove shift knob.
Remove A/T console finisher.
- Disconnect harnesses from bottom of finisher.
Remove screws from bottom of cluster lid C with power tool.
Pull lid towards rear of vehicle to release clips.
- Disconnect electrical connector.

Installation is in the reverse order of removal.

CAUTION: When removing and installing, place shop cloths onto surrounding parts to protect A/T or M/T finisher and center console from damage.
