Center Ventilator Grille

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove shift knob.
  2. Remove shift bezel.
  3. Remove cluster lid C. Refer to "CLUSTER LID C under REMOVAL AND INSTALLATION under GAUGES & INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT".
  4. Remove cluster lid D. Refer to "CLUSTER LID D under REMOVAL AND INSTALLATION under GAUGES & INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT".
  5. Release the tabs to remove each of the two center ventilator grilles.

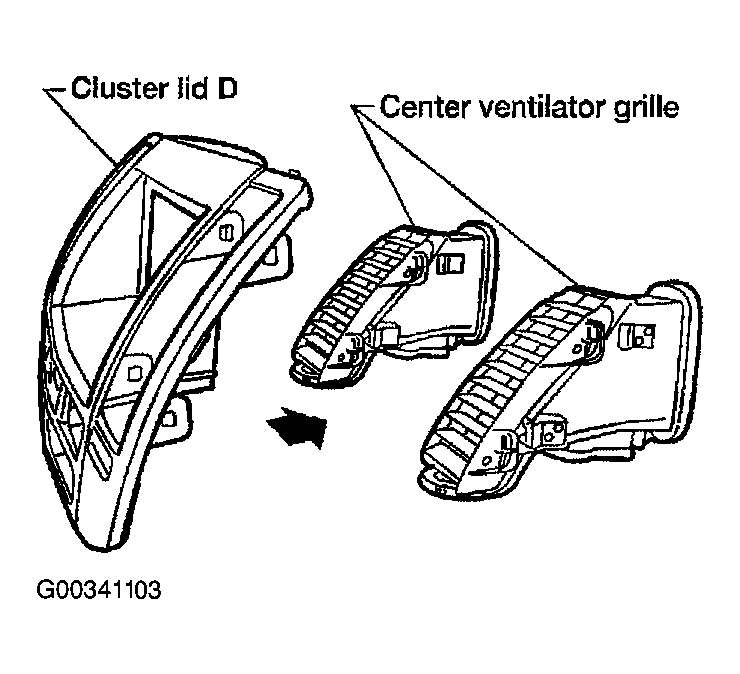

    Fig 1: Exploded View Of Cluster Lid "D"
    G00341103Courtesy of NISSAN MOTOR CO., U.S.A.
