Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove shift knob.
  2. Remove shift bezel.
  3. Remove cluster lid C. Refer to "CLUSTER LID C under REMOVAL AND INSTALLATION under GAUGES & INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT".
  4. Remove cluster lid D. Refer to "CLUSTER LID D under REMOVAL AND INSTALLATION under GAUGES & INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT".
  5. Remove the center stack. See Fig 1.
  6. Remove fasteners securing rear of unified meter and A/C auto amp. See Fig 1.
  7. Remove fasteners on either side of display screen. See Fig 1.
  8. Gently spread top of bracket and remove unified meter and A/C auto amp.

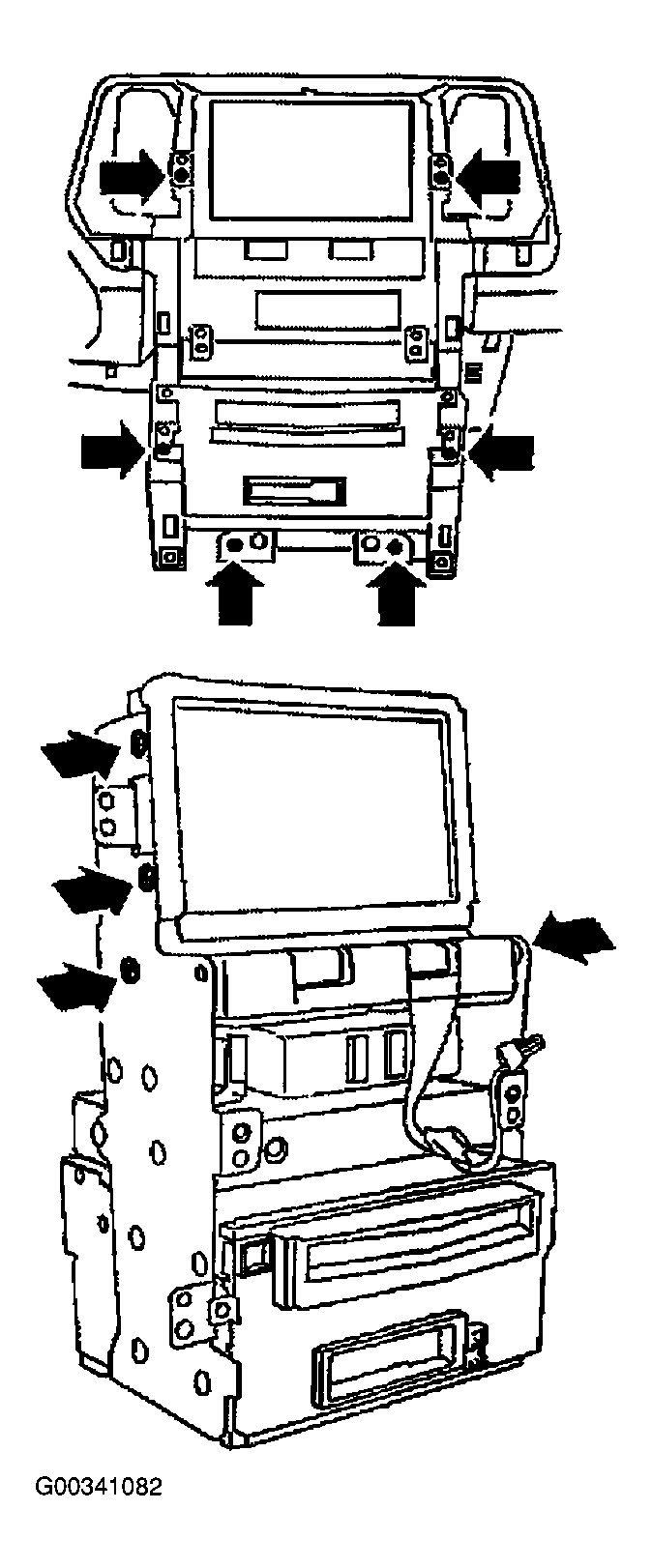

Fig 1: Removing Auto Amp.
G00341082Courtesy of NISSAN MOTOR CO., U.S.A.
