Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Disconnect both terminals from battery in advance.
  1. Remove driver air bag module and steering wheel. Refer to DRIVER-SIDE AIR BAG MODULE & SPIRAL CABLESTEERING WHEEL .
  2. Fully tilt front right and left seat backs backward.
  3. Remove front pillar garnish, front and rear kick plates. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove center pillar lower and upper garnish, and rear pillar garnish. Refer to "REMOVAL AND INSTALLATION ".
  5. Remove sun visors.
  6. Remove interior lamp.
  7. Remove assist grips. A
  8. Remove sunroof welt (if equipped) and door welts.
  9. Remove sunroof switch (if equipped) and map lamp assembly.
  10. Remove clips attached to roof.
  11. Take out headlining from the front passenger door.

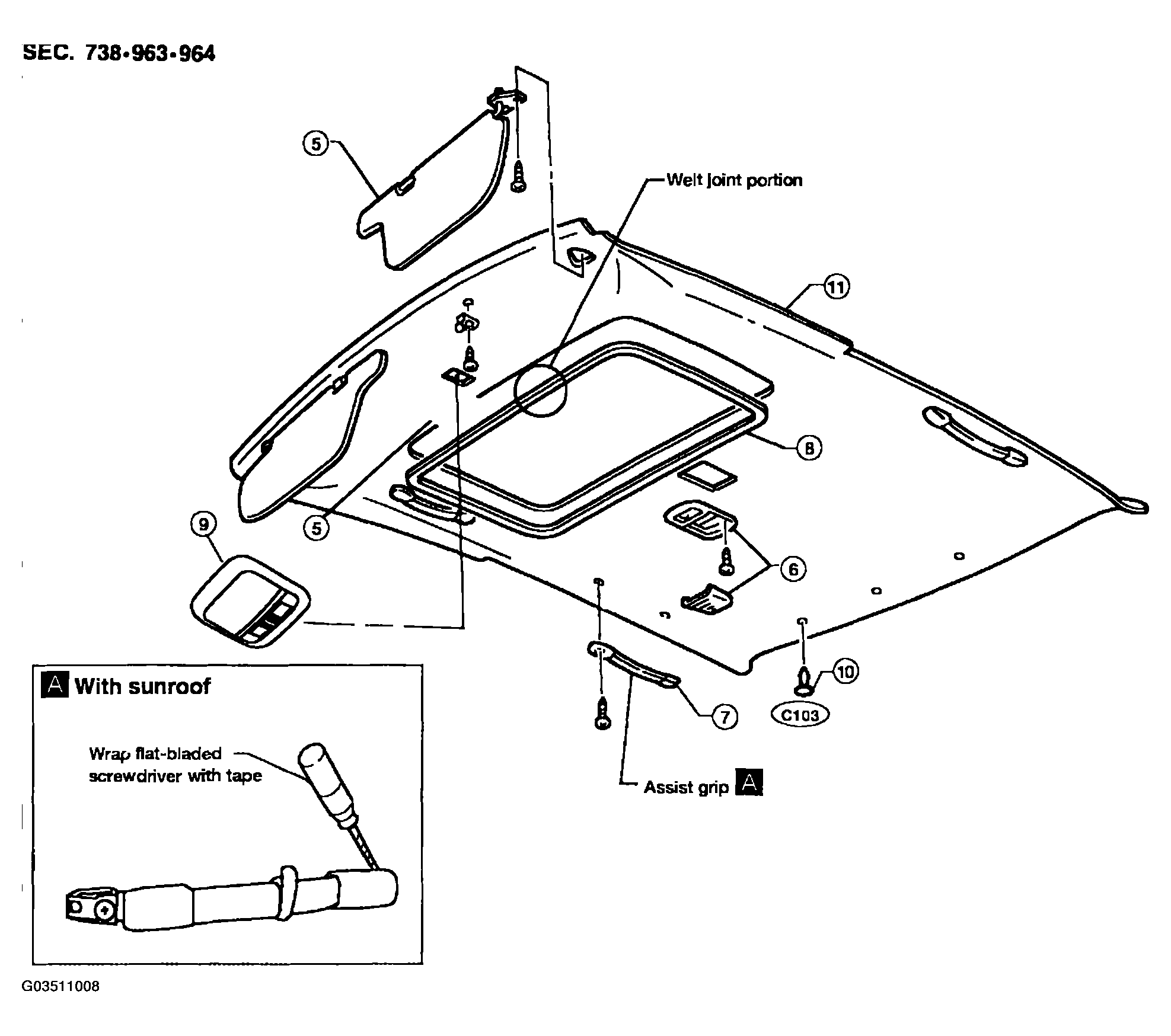

Fig 1: Removal And Installation - Roof Trim
G03511008Courtesy of NISSAN MOTOR CO., U.S.A.
