Steering Wheel

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove air bag module. Refer to DRIVER-SIDE AIR BAG MODULE & SPIRAL CABLE .
  2. Remove steering wheel mounting nut.
  3. Remove steering wheel using Tool.

    Tool number: ST27180001 (J25726-B)

  4. Installation is in the reverse order of removal.

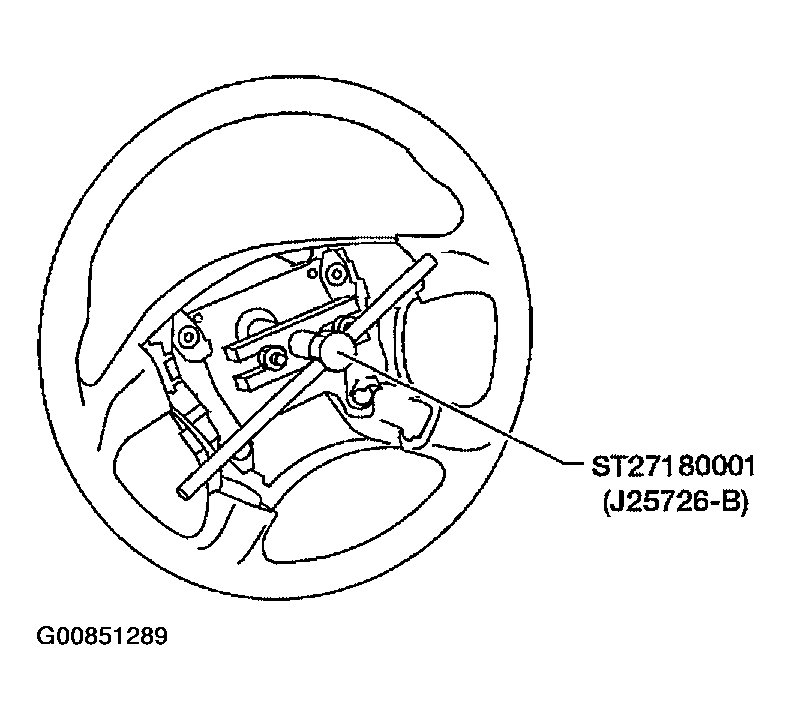

Fig 1: Removing Steering Wheel Using Tool
G00851289Courtesy of NISSAN MOTOR CO., U.S.A.
