Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.
  1. Remove A/T finisher or M/T shift lever boot. Refer to REMOVAL AND INSTALLATION
  2. Remove the console. Refer to INSTRUMENT PANEL ASSEMBLY .
  3. Remove front and rear seats. Refer to FRONT SEAT or REAR SEAT .
  4. Remove kick plates.
  5. Remove dash side lower garnish. A
  6. Remove body side welts.
  7. Remove front seat belt floor anchor bolt.
  8. Remove rear seat belt floor anchor bolt.
  9. Remove center pillar lower garnish.
  10. Remove adjuster cover and pillar shoulder bolt.
  11. Remove floor carpet.
  12. Remove center pillar upper garnish. C
  13. Remove front pillar garnish. B
  14. Remove rear pillar garnish. D
  15. Remove parcel shelf.
  16. Remove center rear seat back finisher.
  17. Remove side rear seat back finishers. E

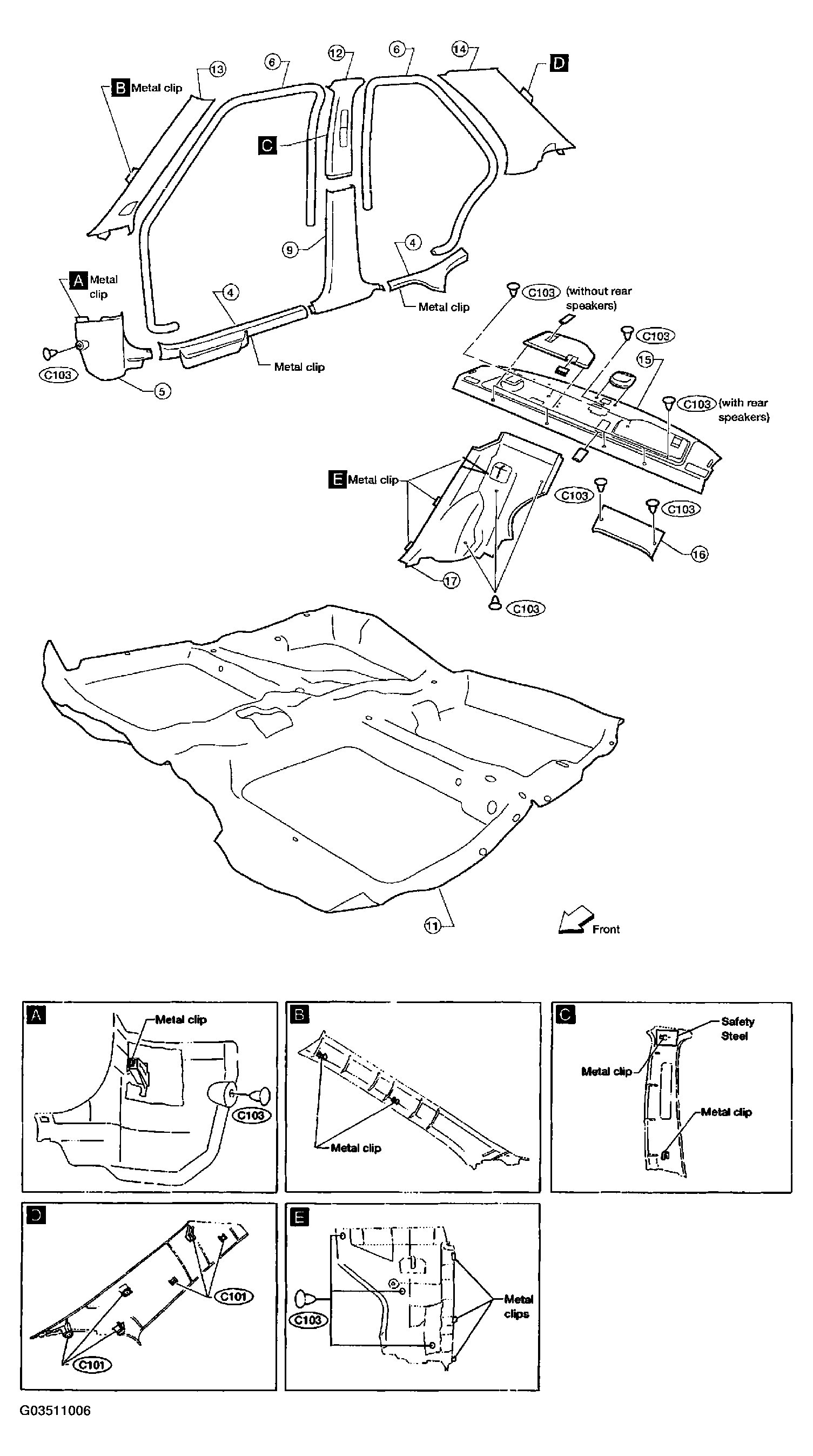

Fig 1: Removal And Installation - Side And Floor Trim Components
G03511006Courtesy of NISSAN MOTOR CO., U.S.A.
