10. A/T Does Not Shift: D2 --> D3

SYMPTOM:

A/T does not shift from D2 to D3 at the specified speed.

1. CHECK SYMPTOM

   Are "7. VEHICLE DOES NOT CREEP FORWARD IN D, 2 OR 1 POSITION  7. " and "8. VEHICLE CANNOT BE STARTED FROM D1 " OK?

   Yes or No

   1. Yes: GO TO 2.
   2. No: Go to "7. VEHICLE DOES NOT CREEP FORWARD IN D, 2 OR 1 POSITION " and "8. VEHICLE CANNOT BE STARTED FROM D1 ".
2. CHECK PARK/NEUTRAL POSITION (PNP) SWITCH CIRCUIT

   With CONSULT-II

   Does "TCM INPUT SIGNALS" in "DATA MONITOR" show damage to park/neutral position (PNP) switch circuit?

   Without CONSULT-II

   Does self-diagnosis show damage to park/neutral position (PNP) switch circuit?

   Yes or No

   1. Yes: Check park/neutral position (PNP) switch circuit. Refer to "DTC P0705 PARK/NEUTRAL POSITION SWITCH ".
   2. No: GO TO 3.

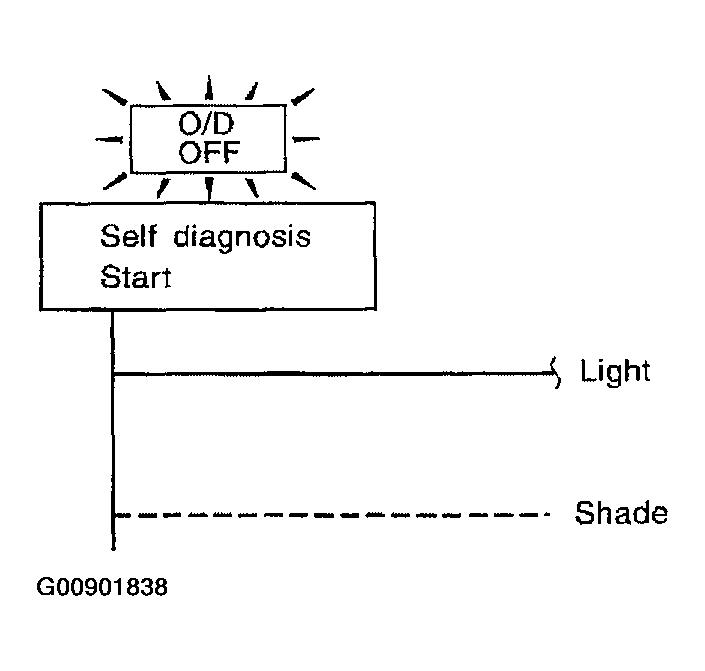

   Fig 1: Checking Park/Neutral Position (PNP) Switch Circuit

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. CHECK THROTTLE POSITION SENSOR [ACCELERATOR PEDAL POSITION (APP) SENSOR]

   Check throttle position sensor [accelerator pedal position (APP) sensor]. Refer to DTC P0122, P0123: TP SENSOR and DTC P2122, P2123: APP SENSOR .

   OK or NG

   1. OK: GO TO 4.
   2. NG: Repair or replace throttle position sensor [accelerator pedal position (APP) sensor].

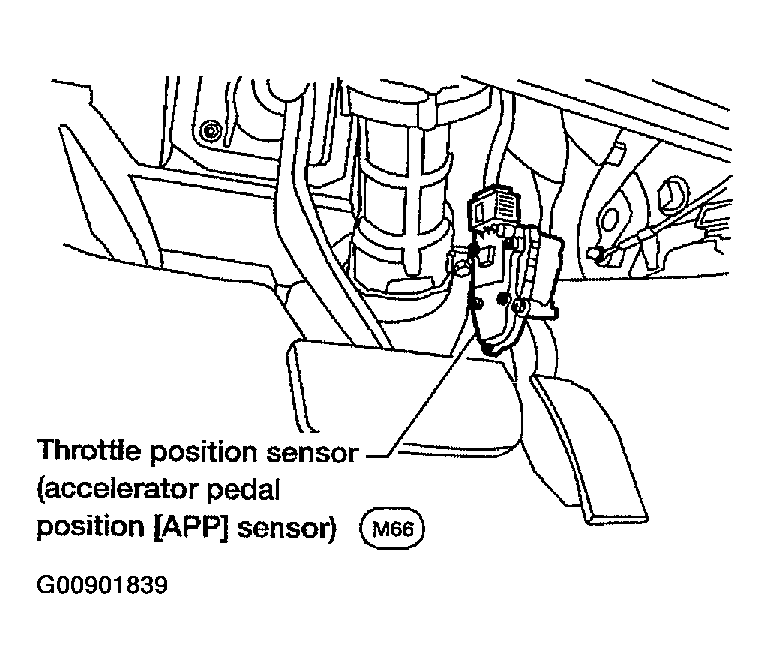

   Fig 2: Identifying Throttle Position Sensor [Accelerator Pedal Position (APP) Sensor]

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. CHECK A/T FLUID CONDITION
   1. Remove oil pan.
   2. Check A/T fluid condition.

   OK or NG

   1. OK: GO TO  6.
   2. NG: GO TO 5.
   Fig 3: Checking A/T Fluid Condition

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. DETECT MALFUNCTIONING ITEM
   1. Remove control valve assembly. Refer to "REMOVAL ".
   2. Check the following items:
      • Shift valve B
      • Shift solenoid valve B
      • Pilot valve
      • Pilot filter
   3. Disassemble A/T.
   4. Check the following items:
      • Servo piston assembly
      • High clutch assembly
      • Oil pump assembly

   OK or NG

   1. OK: GO TO  7.
   2. NG: Repair or replace damaged parts.
6. DETECT MALFUNCTIONING ITEM
   1. Remove control valve assembly. Refer to "REMOVAL ".
   2. Check the following items:
      • Shift valve B
      • Shift solenoid valve B
      • Pilot valve
      • Pilot filter

   OK or NG

   1. OK: GO TO 7.
   2. NG: Repair or replace damaged parts.
7. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG: GO TO 8.
8. CHECK TCM INSPECTION
   1. perform TCM input/output signal inspection.
   2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

   OK or NG

   1. OK: INSPECTION END
   2. NG: Repair or replace damaged parts.
