8. Vehicle Cannot Be Started From D1

SYMPTOM:

Vehicle cannot be started from D1 on Cruise test - Part 1.

1. CHECK SYMPTOM

   Is "6. Vehicle Does Not Creep Backward In R Position" OK?

   Yes or No

   1. Yes: GO TO 2.
   2. No: Go to "6. VEHICLE DOES NOT CREEP BACKWARD IN R POSITION ".
2. CHECK SELF-DIAGNOSTIC RESULTS

   Does self-diagnosis show damage to vehicle speed sensor, A/T (revolution sensor), shift solenoid valve A, B or vehicle speed sensor MTR after cruise test?

   Yes or No

   1. Yes: Check damaged circuit. Refer to "DTC P0720 VEHICLE SPEED SENSOR.A/T (REVOLUTION SENSOR) ""DTC P0750 SHIFT SOLENOID VALVE A ", or "DTC P0755 SHIFT SOLENOID VALVE B ".
   2. No: GO TO 3.

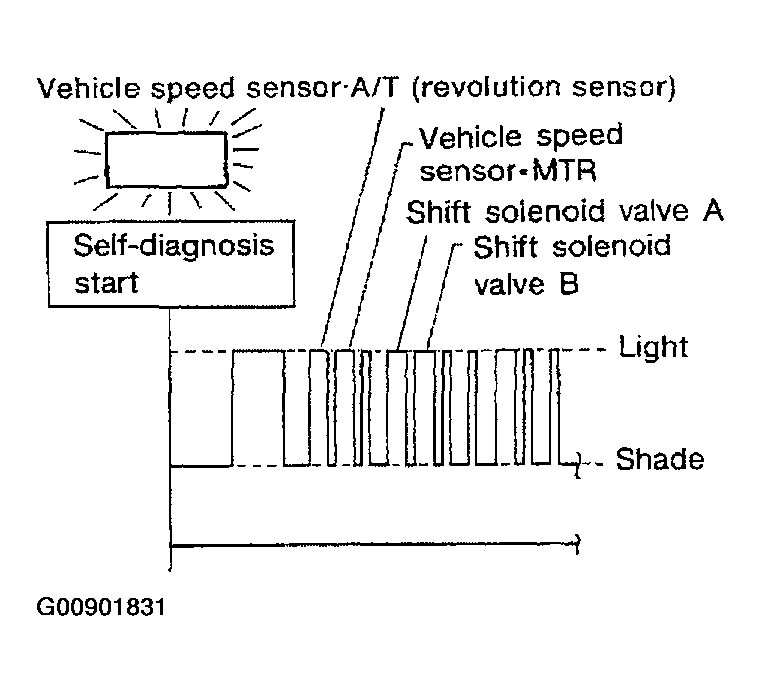

   Fig 1: Checking Self-Diagnostic Results

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. CHECK THROTTLE POSITION SENSOR [ACCELERATOR PEDAL POSITION (APP) SENSOR]

   Check throttle position sensor [accelerator pedal position (APP) sensor]. Refer to DTC P0122, P0123: TP SENSOR and DTC P2122, P2123: APP SENSOR .

   OK or NG

   1. OK: GO TO 4.
   2. NG: Repair or replace throttle position sensor [accelerator pedal position (APP) sensor].

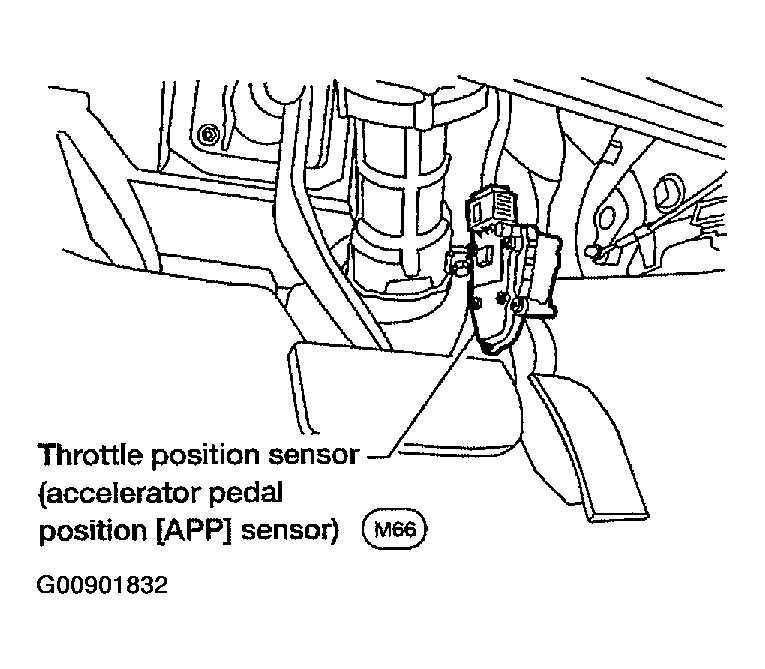

   Fig 2: Checking Throttle Position Sensor [Accelerator Pedal Position (APP) Sensor]

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. CHECK LINE PRESSURE

   Check line pressure at stall point with selector lever in D position. Refer to "LINE PRESSURE TEST ".

   OK or NG

   1. OK: GO TO  6.
   2. NG: GO TO 5.
   Fig 3: Checking Line Pressure

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. DETECT MALFUNCTIONING ITEM
   1. Remove control valve assembly. Refer to "REMOVAL ".
   2. Check the following items:
      • Shift valve A
      • Shift valve B
      • Shift solenoid valve A
      • Shift solenoid valve B
      • Pilot valve
      • Pilot filter
   3. Disassemble A/T.
   4. Check the following items:
      • Forward clutch assembly
      • Forward one-way clutch
      • Low one-way clutch
      • High clutch assembly
      • Torque converter
      • Oil pump assembly

   OK or NG

   1. OK: GO TO  8.
   2. NG: Repair or replace damaged parts.
6. CHECK A/T FLUID CONDITION
   1. Remove oil pan.
   2. Check A/T fluid condition.

   OK or NG

   1. OK: GO TO 7.
   2. NG: GO TO  5.
   Fig 4: Checking A/T Fluid Condition

   Courtesy of NISSAN MOTOR CO., U.S.A.
7. DETECT MALFUNCTIONING ITEM
   1. Remove control valve assembly. Refer to "REMOVAL ".
   2. Check the following items:
      • Shift valve A
      • Shift valve B
      • Shift solenoid valve A
      • Shift solenoid valve B
      • Pilot valve
      • Pilot filter

   OK or NG

   1. OK: GO TO 8.
   2. NG: Repair or replace damage parts.
8. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG: GO TO 9.
9. CHECK TCM INSPECTION
   1. perform TCM input/output signal inspection.
   2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

   OK or NG

   1. OK: INSPECTION END
   2. NG: Repair or replace damaged parts.
