7. Vehicle Does Not Creep Forward in D, 2 or 1 Position

SYMPTOM:

Vehicle does not creep forward when selecting D, 2 or 1 position.

1. CHECK A/T FLUID LEVEL

   Check A/T fluid level.

   OK or NG

   1. OK: GO TO 2.
   2. NG: Refill ATF.

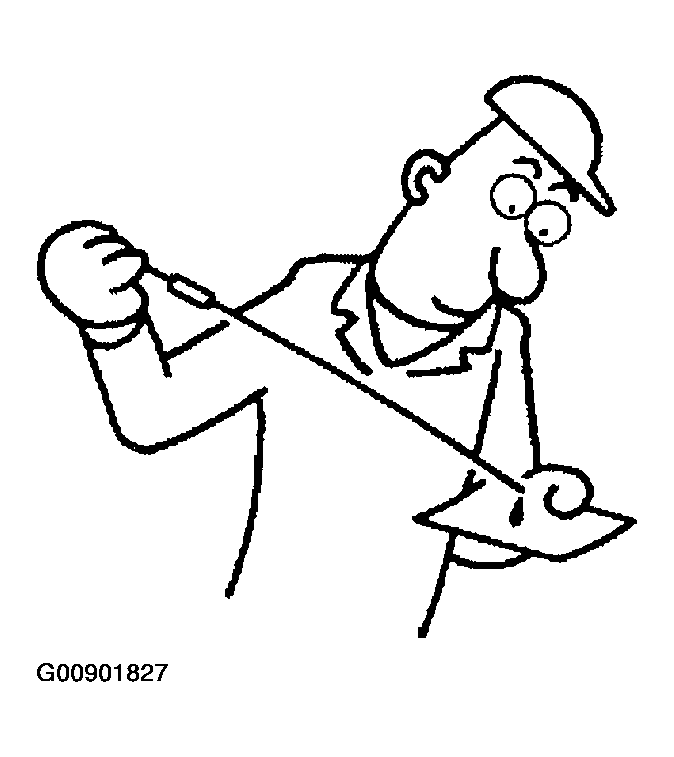

   Fig 1: Checking A/T Fluid Level

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. CHECK STALL REVOLUTION

   Check stall revolution with selector lever in D position. Refer to "STALL TEST "

   OK or NG

   1. OK: GO TO  4.
   2. NG: GO TO 3.

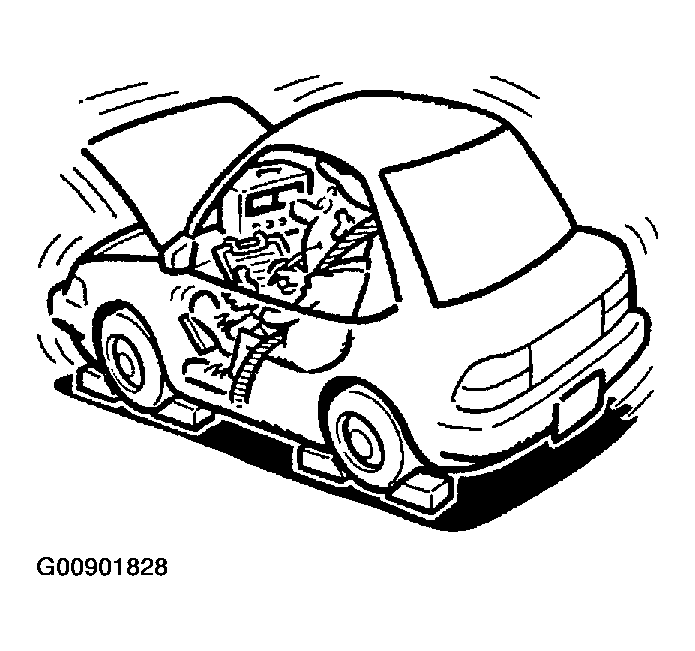

   Fig 2: Checking Stall Revolution

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. DETECT MALFUNCTIONING ITEM
   1. Remove control valve assembly. Refer to "REMOVAL ".
   2. Check the following items:
      • Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot filter)
      • Line pressure solenoid valve
   3. Disassemble A/T.
   4. Check the following items:
      • Oil pump assembly
      • Forward clutch assembly
      • Forward one-way clutch
      • Low one-way clutch
      • Low & reverse brake assembly
      • Torque converter

   OK or NG

   1. OK: GO TO 4.
   2. NG: Repair or replace damaged parts.
4. CHECK LINE PRESSURE

   Check line pressure at idle with selector lever in D position. Refer to "LINE PRESSURE TEST ".

   OK or NG

   1. OK: GO TO  6.
   2. NG: GO TO 5.
   Fig 3: Checking Line Pressure

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. DETECT MALFUNCTIONING ITEM
   1. Remove control valve assembly. Refer to "REMOVAL ".
   2. Check the following items:
      • Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot filter)
      • Line pressure solenoid valve
   3. Disassemble A/T.
   4. Check the following item:
      • Oil pump assembly

   OK or NG

   1. OK: GO TO 6.
   2. NG: Repair or replace damaged parts.
6. CHECK A/T FLUID CONDITION
   1. Remove oil pan.
   2. Check A/T fluid condition.

   OK or NG

   1. OK: GO TO  8.
   2. NG: GO TO 7.

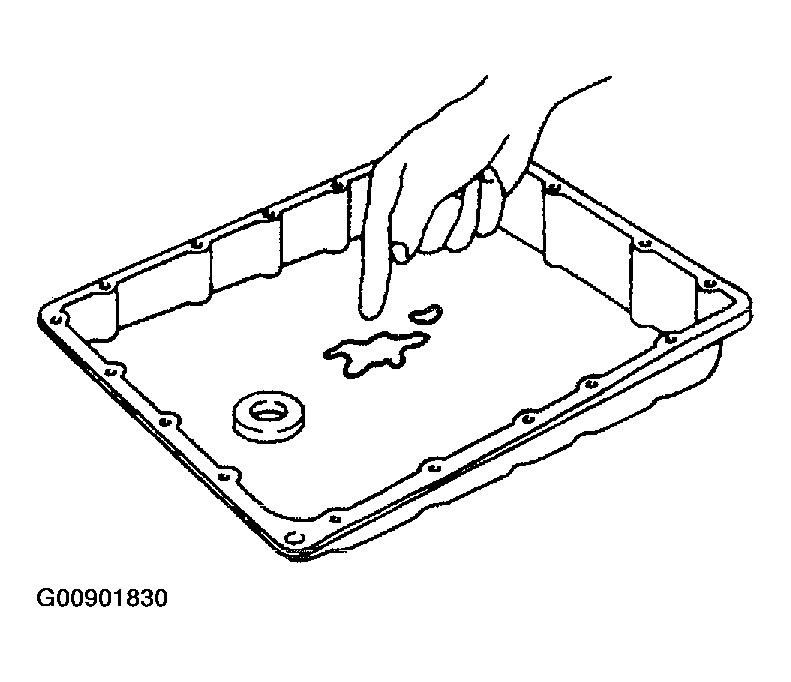

   Fig 4: Checking A/T Fluid Condition

   Courtesy of NISSAN MOTOR CO., U.S.A.
7. DETECT MALFUNCTIONING ITEM
   1. Remove control valve assembly. Refer to "REMOVAL ".
   2. Check the following items:
      • Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot filter)
      • Line pressure solenoid valve
   3. Disassemble A/T.
   4. Check the following items:
      • Oil pump assembly
      • Forward clutch assembly
      • Forward one-way clutch
      • Low one-way clutch
      • Low & reverse brake assembly
      • Torque converter

   OK or NG

   1. OK: GO TO 8.
   2. NG: Repair or replace damaged parts.
8. CHECK SYMPTOM

   Check again.

   OK or NG

   1. OK: INSPECTION END
   2. NG: GO TO 9.
9. CHECK TCM INSPECTION
   1. perform TCM input/output signal inspection.
   2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

   OK or NG

   1. OK: INSPECTION END
   2. NG: Repair or replace damaged parts.
