16. Vehicle Does Not Start From D1

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

SYMPTOM:

Vehicle does not start from D1 on Cruise test - Part 2.

CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to vehicle speed sensor.A/T (revolution sensor), shift solenoid valve A, B or vehicle speed sensor. MTR after cruise test?

Yes or No
1. Yes: Check damaged circuit. Refer to "DTC P0720 VEHICLE SPEED SENSOR. A/T (REVOLUTION SENSOR) ", "DTC P0750 SHIFT SOLENOID VALVE A ", "DTC P0755 SHIFT SOLENOID VALVE B ", "DTC VHCL SPEED SEN.MTR VEHICLE SPEED SENSOR.MTR ".
2. No: GO TO 2.

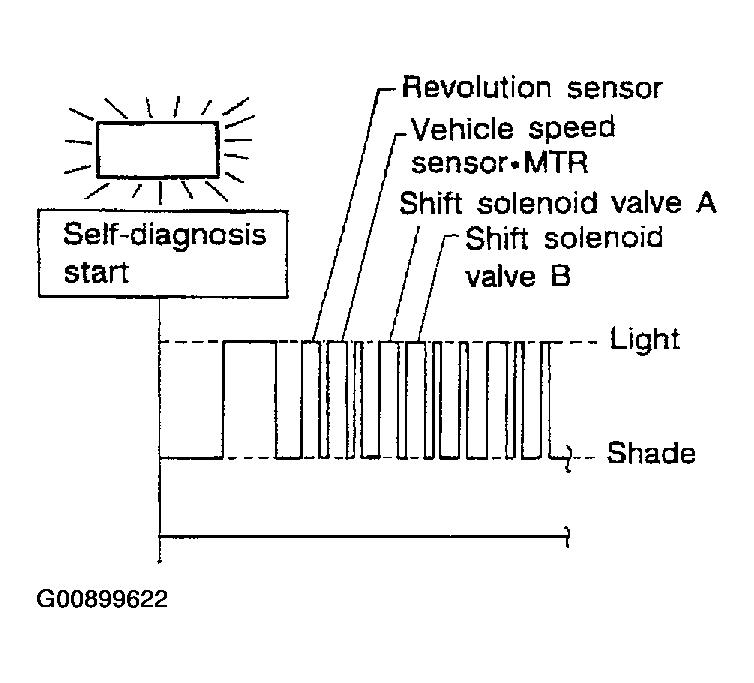

Fig 1: Checking Self-Diagnostic Results
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK SYMPTOM
Check again.

OK or NG
1. OK: Go to "8. VEHICLE CANNOT BE STARTED FROM D1 ".
2. NG:
  1. Perform TCM input/output signal inspection. See INPUT/OUTPUT SIGNAL OF TCM .
  2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
