Cruise Test - Part 3

1. Confirm overdrive control switch is in "ON" position.
2. Confirm selector lever is in "D" position.
3. Accelerate vehicle using half-throttle to D4.
   1. GO TO 2.

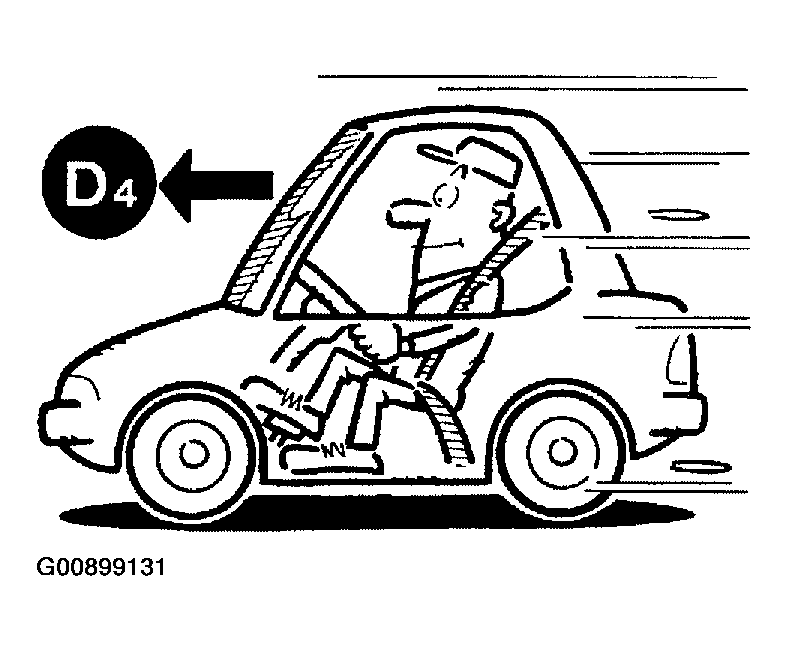

Fig 1: Accelerating Vehicle Using Half-Throttle To D4

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Release accelerator pedal.
2. Set overdrive control switch to "OFF" position while driving in D4
3. Does A/T shift from D4 to D3 (O/D OFF)?

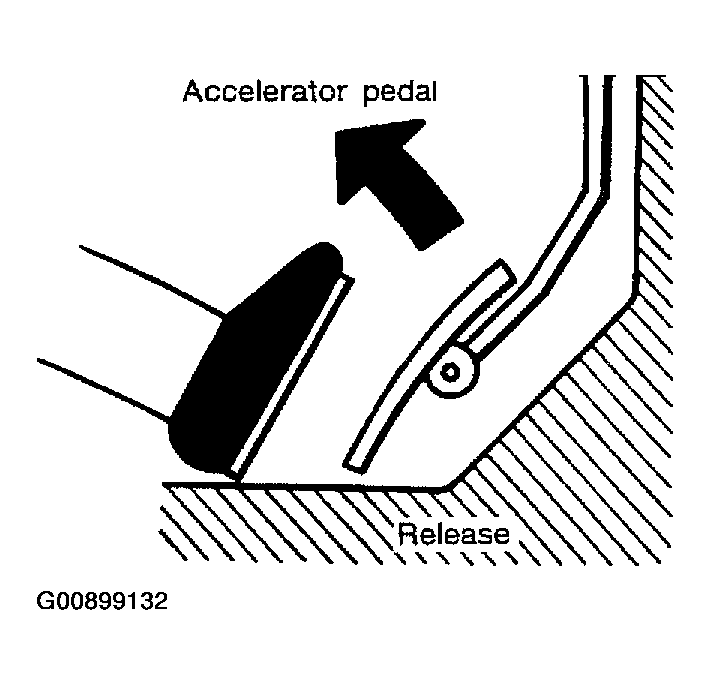

Fig 2: Releasing Accelerator Pedal

Courtesy of NISSAN MOTOR CO., U.S.A.

Read gear position and vehicle speed.

Yes or No

1. Yes: GO TO 3.
2. No: Go to , 17. A/T DOES NOT SHIFT: D4 --> D3. WHEN OVERDRIVE CONTROL SWITCH "ON" --> "OFF" . Continue ROAD TEST.

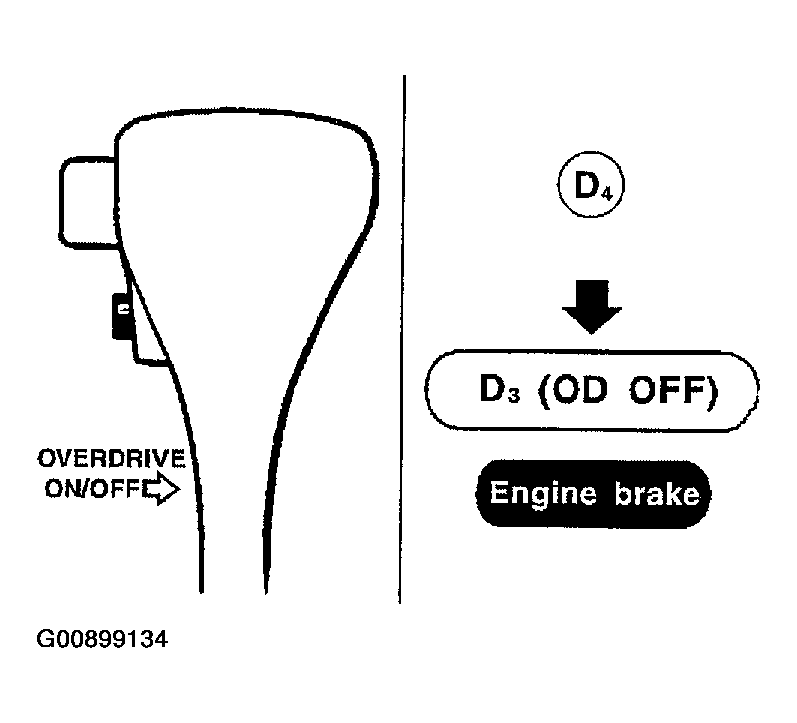

Fig 3: Checking Shift Down (D

Courtesy of NISSAN MOTOR CO., U.S.A.

Does vehicle decelerate by engine brake?

Yes or No

1. Yes: GO TO 4.
2. No: Go to "15. ENGINE SPEED DOES NOT RETURN TO IDLE (LIGHT BRAKING D4 --> D3 )". Continue ROAD TEST.

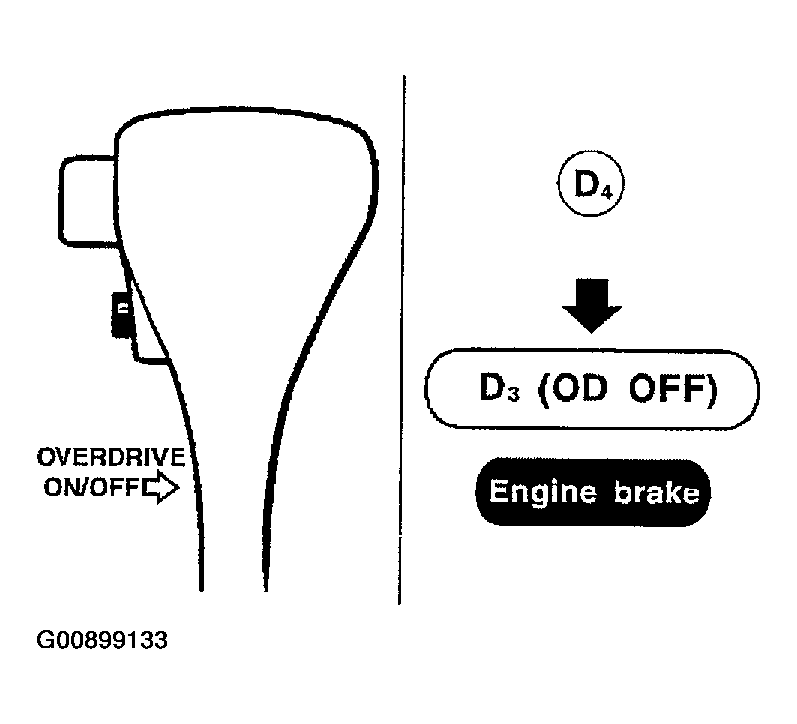

Fig 4: Checking Engine Brake

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Move A/T selector lever from "D" to "2" position while driving in D3 (O/D OFF).
2. Does A/T shift from D3 (O/D OFF) to D2?

Read gear position.

Yes or No

1. Yes: GO TO 5.
2. No: Go to "18. A/T DOES NOT SHIFT: D3 --> 22, WHEN SELECTOR LEVER "D" --> "2" POSITION ". Continue ROAD TEST.

Fig 5: Checking Shift Down

Courtesy of NISSAN MOTOR CO., U.S.A.

Does vehicle decelerate by engine brake?

Yes or No

1. Yes: GO TO 6.
2. No: Go to "15. ENGINE SPEED DOES NOT RETURN TO IDLE (LIGHT BRAKING D4 --> D3 )". Continue ROAD TEST.

Fig 6: Checking Engine Brake

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Move A/T selector lever from "2" to "1" position while driving in 22.
2. Does A/T shift from 22 to 11 position?

Read gear position.

Yes or No

1. Yes: GO TO 7.
2. No: Go to "19. A/T DOES NOT SHIFT: 22 --> 11, WHEN SELECTOR LEVER "2" --> "1" POSITION ". Continue ROAD TEST.

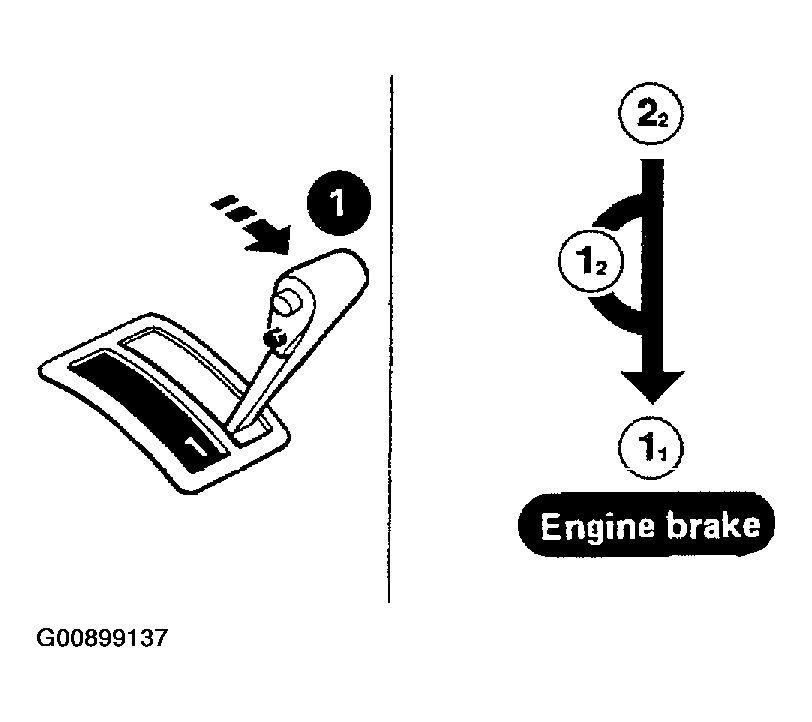

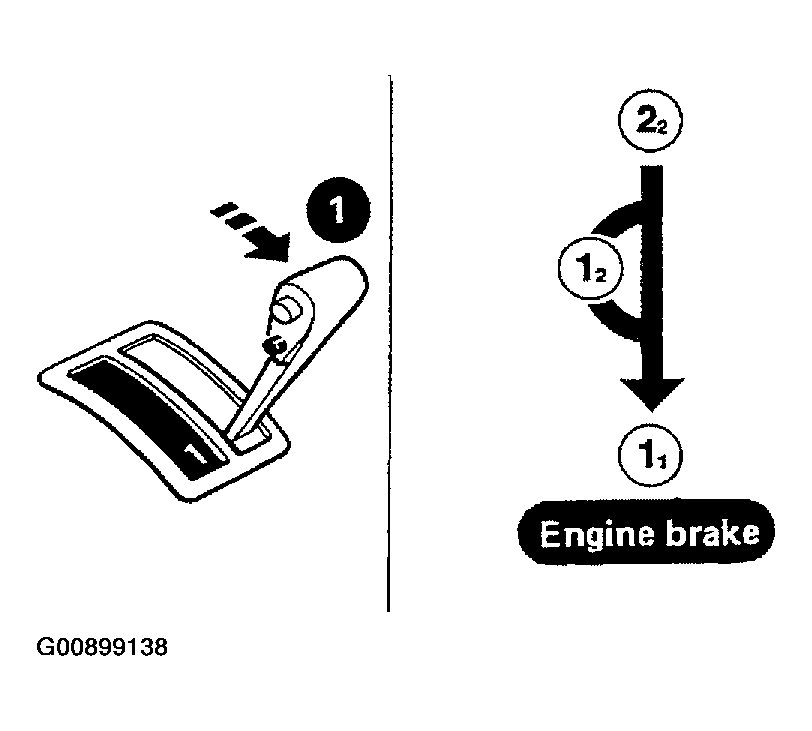

Fig 7: Moving A/T Selector Lever From "2" To "1" Position While Driving In 2

Courtesy of NISSAN MOTOR CO., U.S.A.

Does vehicle decelerate by engine brake?

Yes or No

1. Yes:
   1. Stop vehicle.
   2. Perform self-diagnosis. Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".
2. No: Go to "20. VEHICLE DOES NOT DECELERATE BY ENGINE BRAKE ". Continue ROAD TEST.
