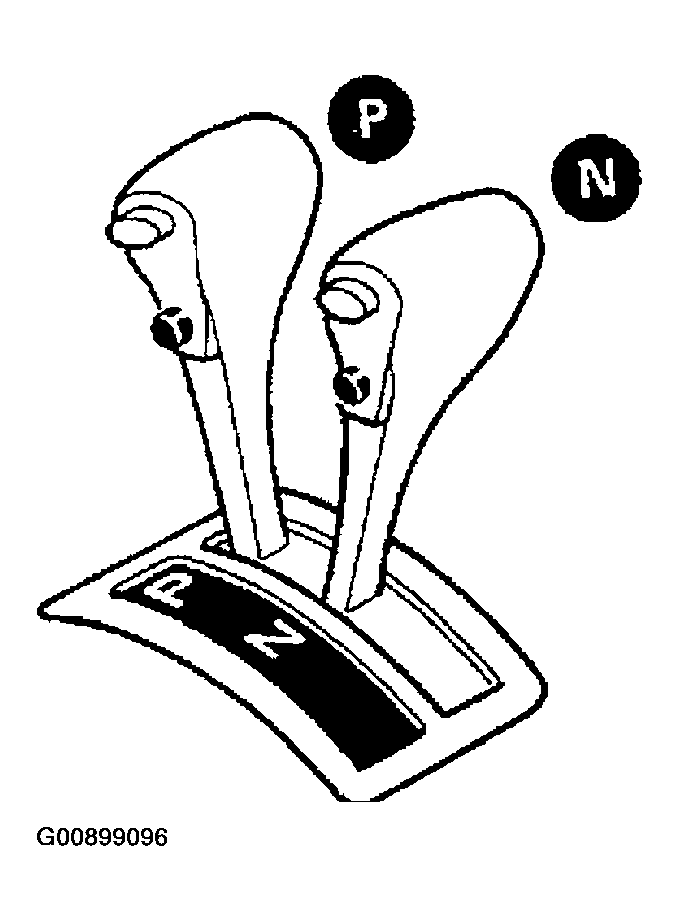

2. Check At Idle

1. Park vehicle on flat surface.
2. Move A/T selector lever to "P" position.
3. Turn ignition switch to "OFF" position.
4. Turn ignition switch to "START" position.
5. Is engine started?

Yes or No

1. Yes: GO TO 2.
2. No: Stop ROAD TEST. Mark the box on the DIAGNOSTIC WORKSHEET. Go to "2. ENGINE CANNOT BE STARTED IN "P" and "N" Position ".

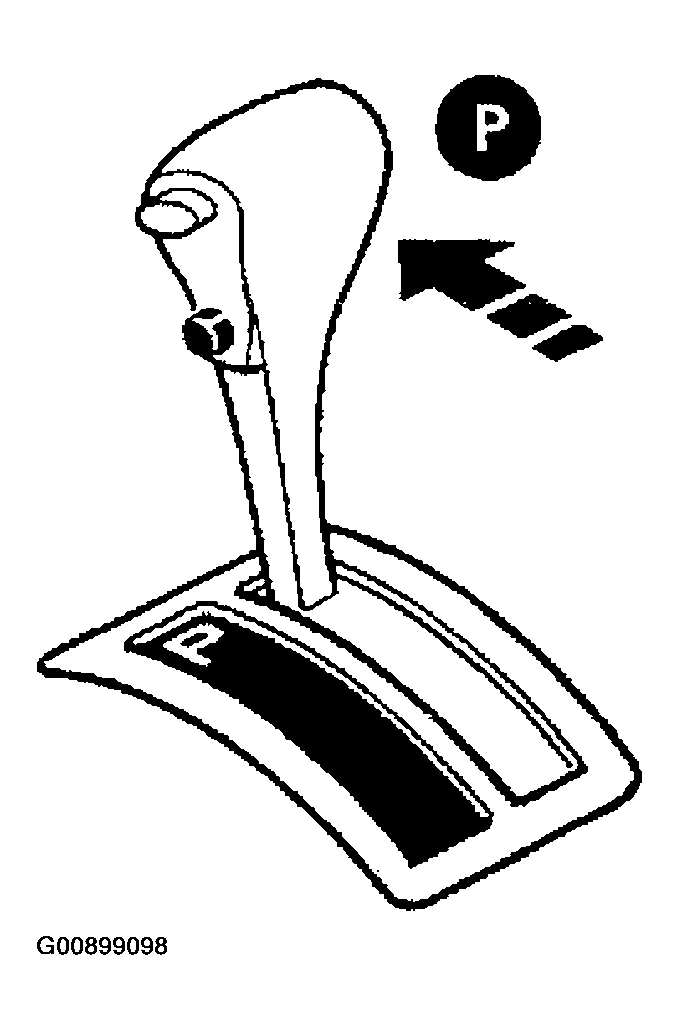

Fig 1: Moving A/T Selector Lever To "P" Position

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Turn ignition switch to "ACC" position.
2. Move A/T selector lever to "D", "1""2" or "R" position.
3. Turn ignition switch to "START" position.
4. Is engine started?

Yes or No

1. Yes: Stop ROAD TEST. Mark the box on the DIAGNOSTIC WORKSHEET. Go to "2. ENGINE CANNOT BE STARTED IN "P" and "N" Position ".
2. No: GO TO 3.

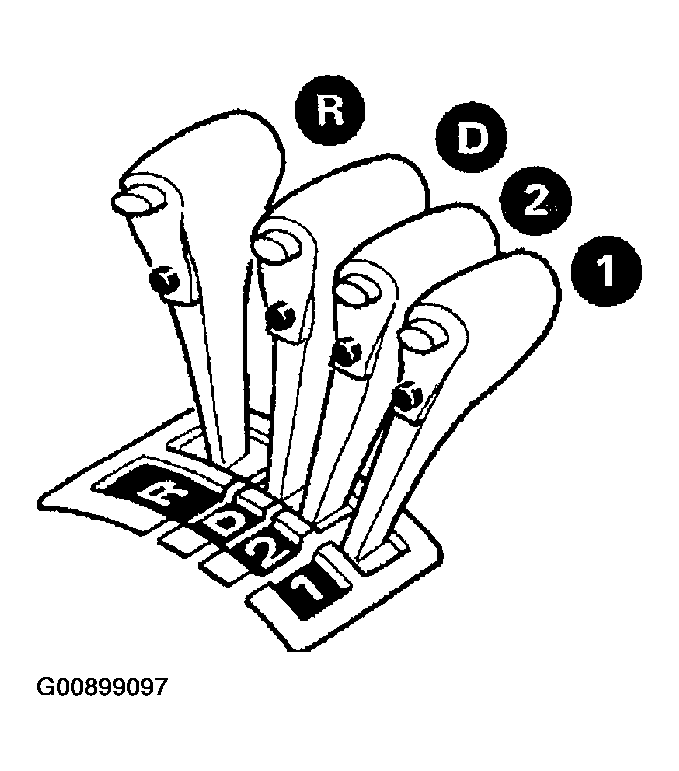

Fig 2: Moving A/T Selector Lever To "D""1", "2" Or "R" Position

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Move A/T selector lever to "P" position.
2. Turn ignition switch to "OFF" position.
3. Release parking brake.
   1. GO TO 4.

Fig 3: Moving A/T Selector Lever To "P" Position

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Push vehicle forward or backward.
2. Does vehicle move when it is pushed forward or backward?
3. Apply parking brake.

Yes or No

1. Yes: Mark the box on the DIAGNOSTIC WORKSHEET. Go to "3. IN "P" POSITION, VEHICLE MOVES FORWARD OR BACKWARD WHEN PUSHED ". Continue ROAD TEST.
2. No: GO TO 5.

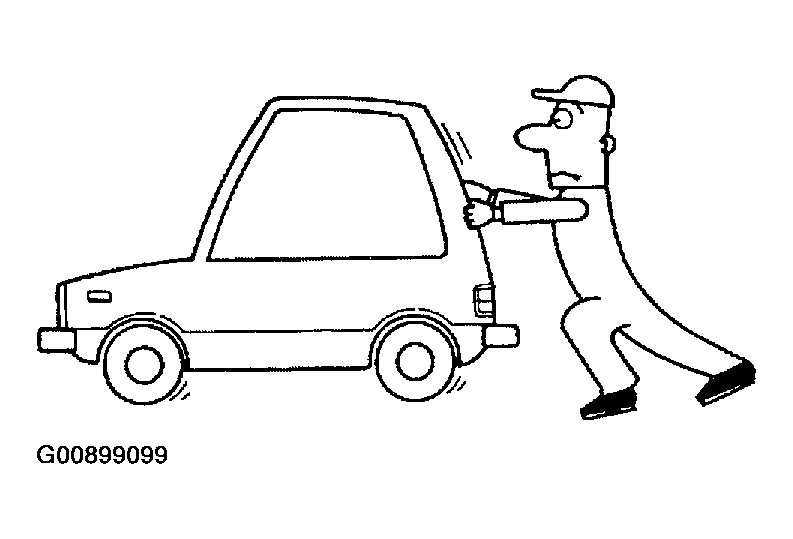

Fig 4: Pushing Vehicle Forward

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Start engine.
2. Move A/T selector lever to "N" position.
3. Release parking brake.
4. Does vehicle move forward or backward?

Yes or No

1. Yes: Mark the box on the DIAGNOSTIC WORKSHEET. Go to "4. IN "N" POSITION, VEHICLE MOVES ". Continue ROAD TEST.
2. No: GO TO 6.

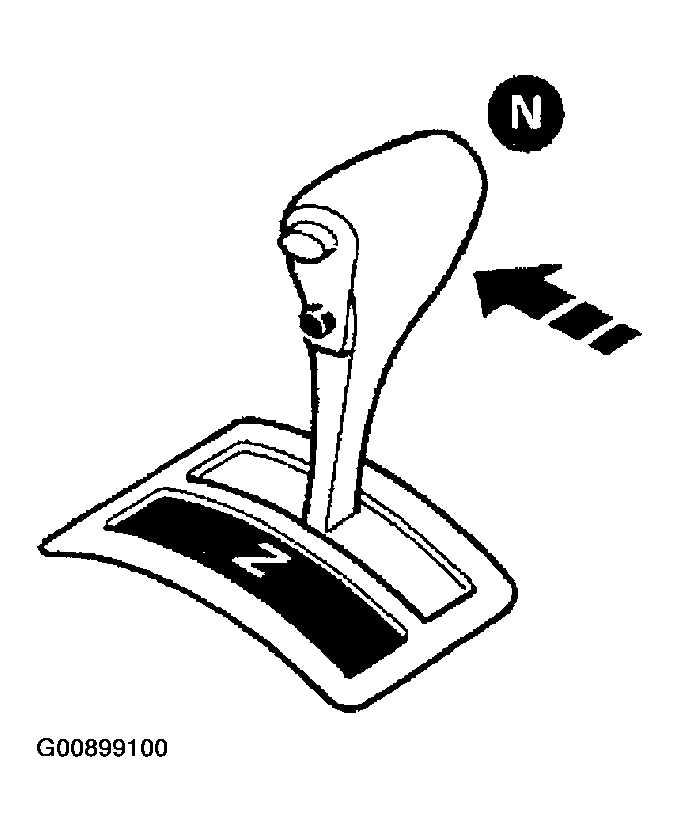

Fig 5: Moving A/T Selector Lever To "N" Position

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Apply foot brake.

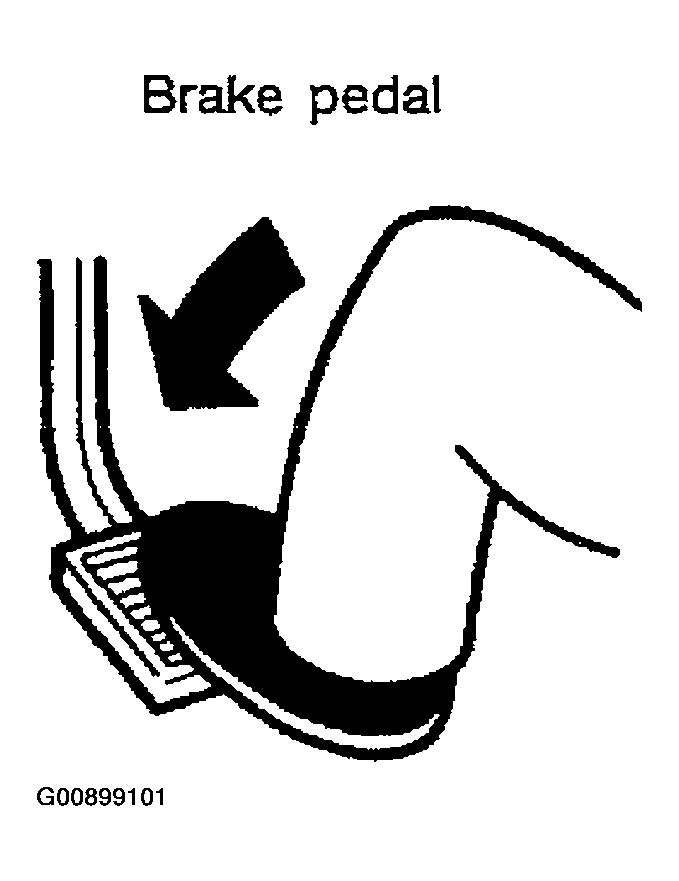

   Fig 6: Applying Foot Brake

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Move A/T selector lever to "R" position.
3. Is there large shock when changing from "N" to "R" position?

Yes or No

1. Yes: Mark the box on the DIAGNOSTIC WORKSHEET. Go to "5. LARGE SHOCK"N" "R" POSITION ". Continue ROAD TEST.
2. No: GO TO 7.

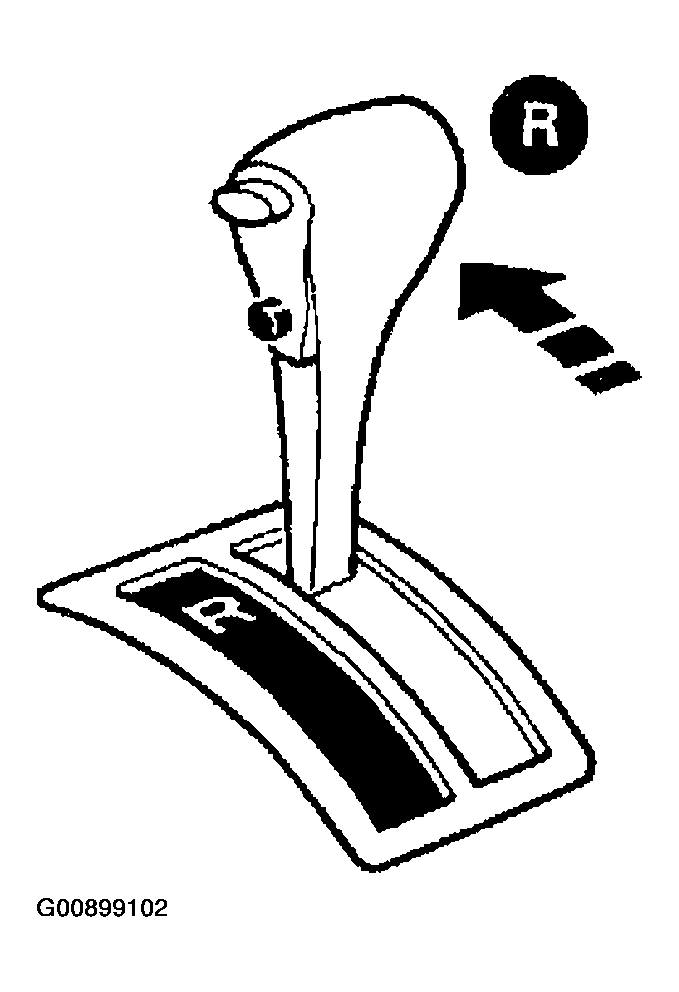

Fig 7: Moving A/T Selector Lever To "R" Position

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Release foot brake for several seconds.
2. Does vehicle creep backward when foot brake is released?

Yes or No

1. Yes: GO TO 8.
2. No: Mark the box on the DIAGNOSTIC WORKSHEET. Go to "6. VEHICLE DOES NOT CREEP BACKWARD IN "R" Position ". Continue ROAD TEST.

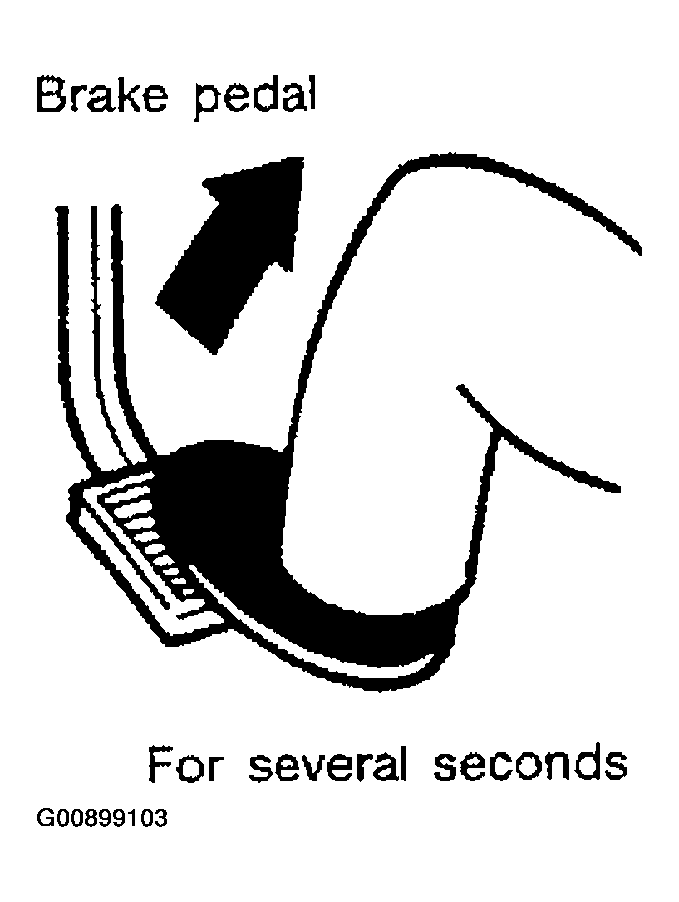

Fig 8: Releasing Foot Brake

Courtesy of NISSAN MOTOR CO., U.S.A.

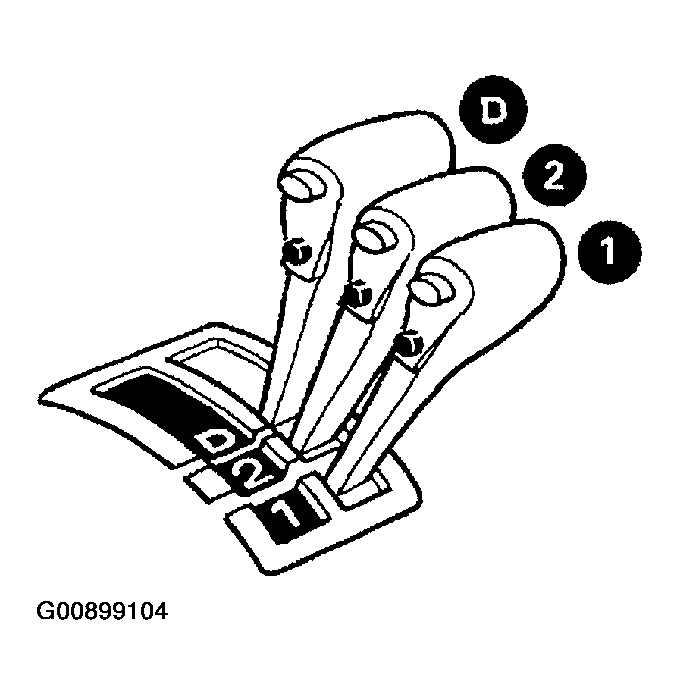

1. Move A/T selector lever to "D", "2" and "1" positions and check if vehicle creeps forward.
2. Does vehicle creep forward in all three positions?

Yes or No

1. Yes: Go to "3. CRUISE TEST ".
2. No: Mark the box on the DIAGNOSTIC WORKSHEET. Go to "7. VEHICLE DOES NOT CREEP FORWARD IN "D""2" Or "1" POSITION ". Continue ROAD TEST.
