2. Engine Cannot Be Started In "P" and "N" Position

SYMPTOM:

• Engine cannot be started with selector lever in "P" or "N" position.
• Engine can be started with selector lever in "D""2", "1" or "R" position.

1. CHECK PNP SWITCH CIRCUIT

   With CONSULT-II

   Does "TCM INPUT SIGNALS" in "DATA MONITOR" show damage to PNP switch circuit?

   Without CONSULT-II

   Does self-diagnosis show damage to PNP switch circuit?

   Yes or No

   1. Yes: Check PNP switch circuit. Refer to "DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH ".
   2. No: GO TO 2.

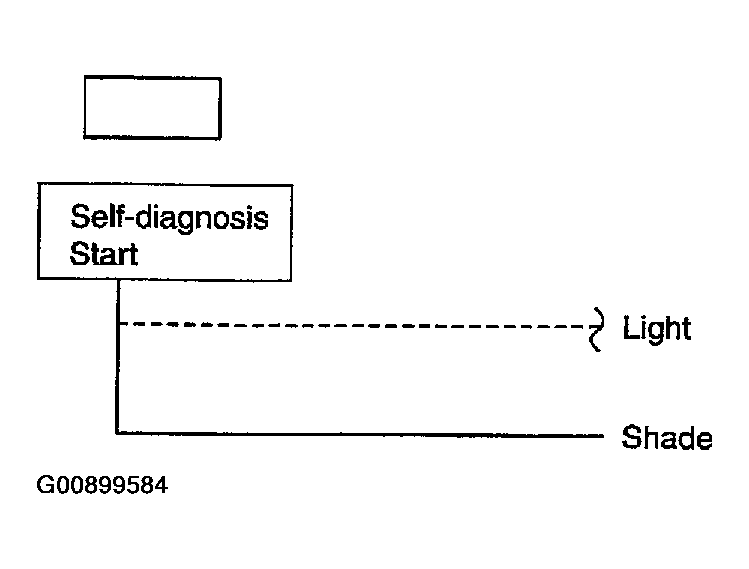

   Fig 1: Checking PNP Switch Circuit With Consult II

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. CHECK PNP SWITCH INSPECTION

   Check for short or open of PNP switch harness connector terminals 1 and 2.

   Refer to "DIAGNOSTIC PROCEDURE ".

   OK or NG

   1. OK: GO TO 3.
   2. NG: Repair or replace PNP switch.
3. CHECK CONTROL CABLE

   Check control cable. Refer to "CONTROL CABLE ADJUSTMENT "

   OK or NG

   1. OK: GO TO 4.
   2. NG: Adjust control cable. Refer to "CONTROL CABLE ADJUSTMENT ".

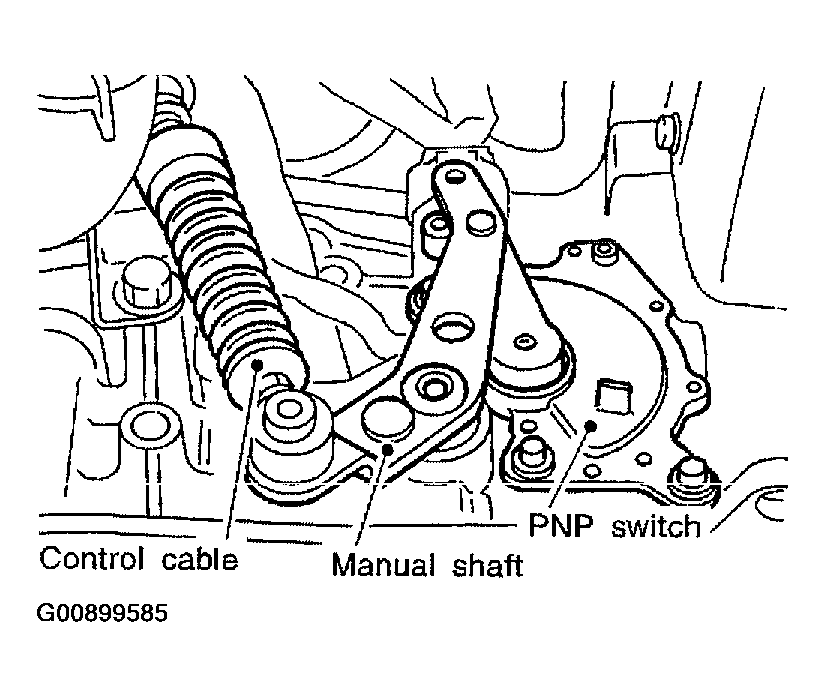

   Fig 2: Identifying Control Cable

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. CHECK STARTING SYSTEM

   Check starting system. Refer to GENERATORS & REGULATORS .

   OK or NG

   1. OK: INSPECTION END
   2. NG: Repair or replace damaged parts.
