3. In "P" Position, Vehicle Moves Forward Or Backward When Pushed

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

SYMPTOM:

Vehicle moves when it is pushed forward or backward with selector lever in "P" position.

  1. CHECK CONTROL CABLE

    Check control cable. Refer to "CONTROL CABLE ADJUSTMENT "

    OK or NG

    1. OK: GO TO 2.
    2. NG: Adjust control cable. Refer to "CONTROL CABLE ADJUSTMENT ".

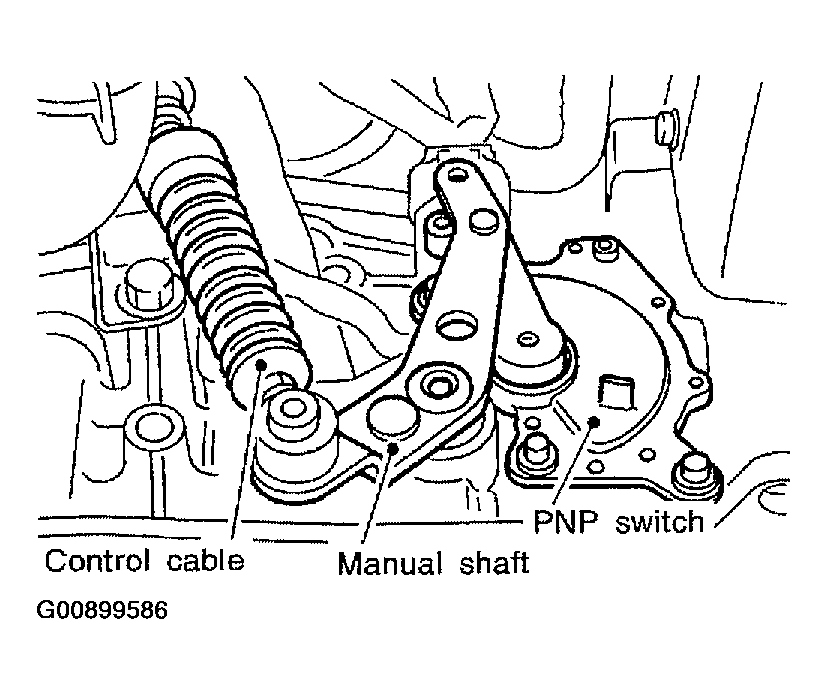

    Fig 1: Identifying Control Cable
    G00899586Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK PARKING COMPONENTS

    Check parking components. Refer to "COMPONENTS ".

    OK or NG

    1. OK: INSPECTION END
    2. NG: Repair or replace damaged parts.

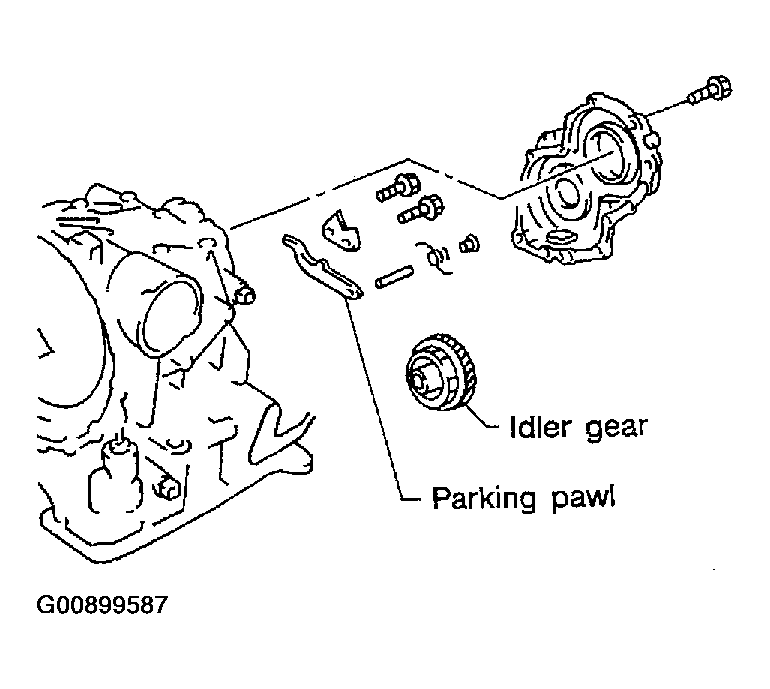

    Fig 2: Checking Parking Components
    G00899587Courtesy of NISSAN MOTOR CO., U.S.A.
