Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Remove drain plug and drain the oil from transaxle. Refer to . "DRAINING ".
Remove drive shafts. Refer to DRIVE SHAFT .
Remove differential oil seal using Tool.

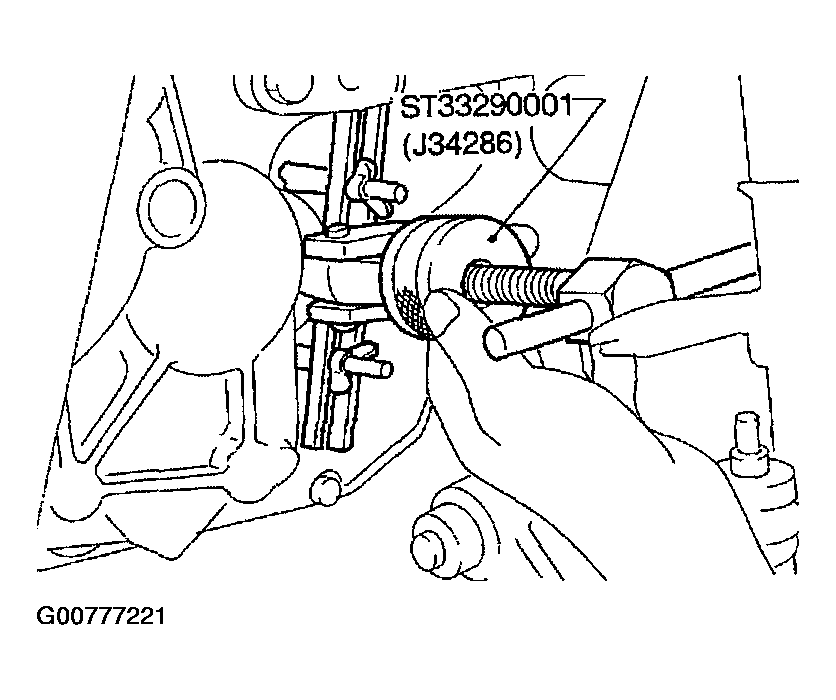

Fig 1: Removing Differential Oil Seal Using Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Install differential oil seal with a suitable tool (drift).
- Apply multi-purpose grease to seal lip of oil seal before installing.

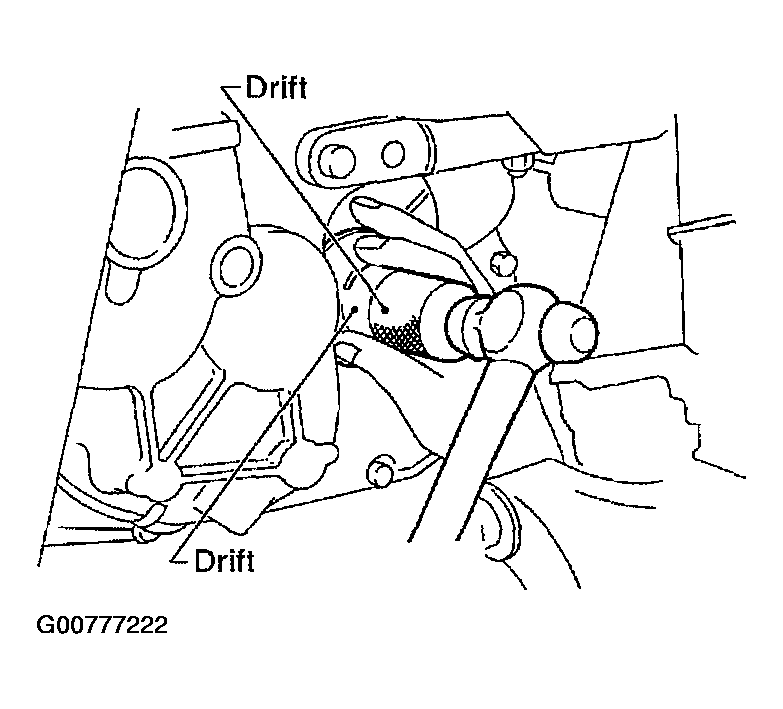

  Fig 2: Installing Differential Oil Seal With A Suitable Tool (Drift)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install drive shafts. Refer to DRIVE SHAFT .
- Install differential oil seal so that dimensions "A" and "B" are within specifications.

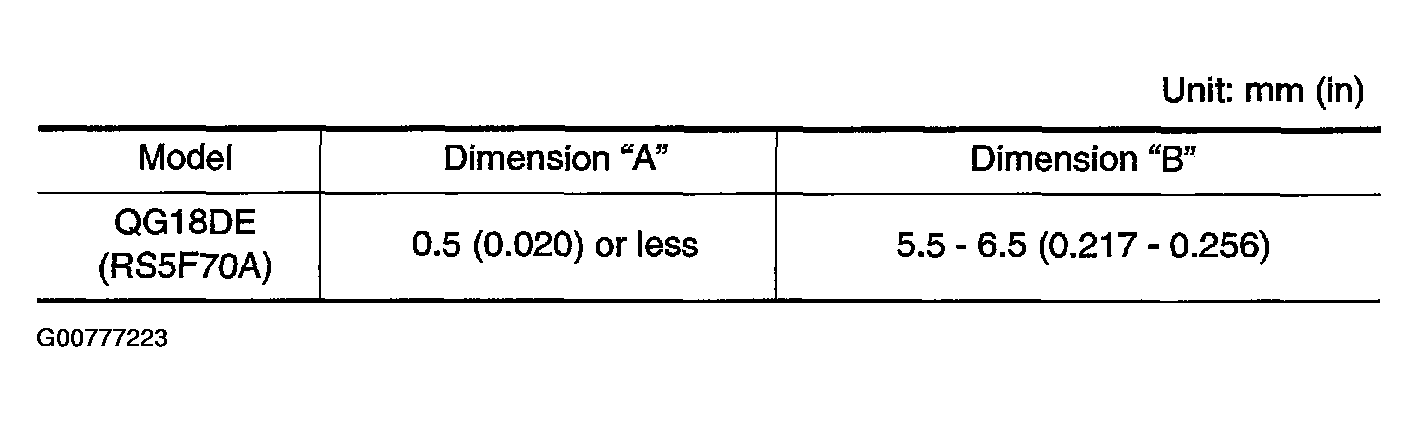

  Fig 3: Identifying Dimensions Of Oil Seal (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

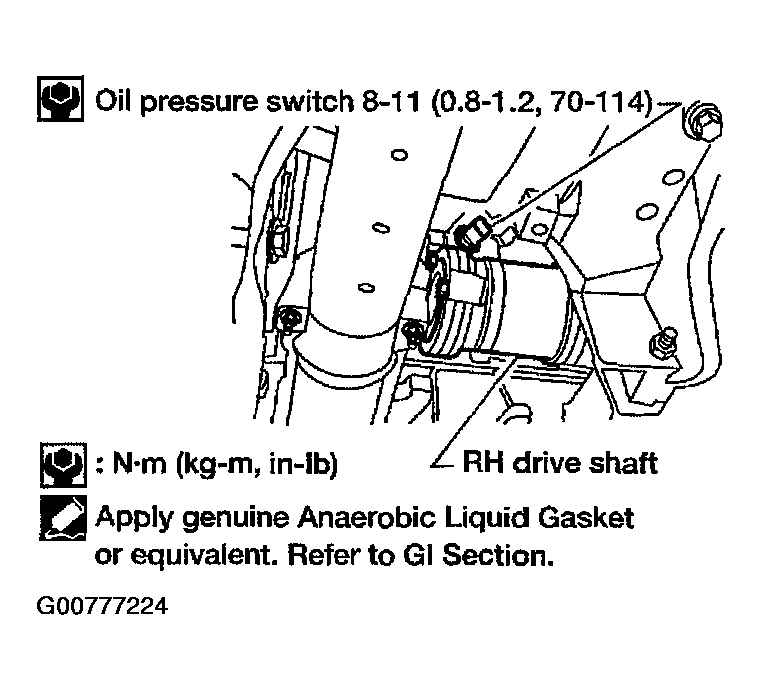

Fig 4: Identifying Dimensions Of Oil Seal And Tightening Specifications (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Refill the transaxle oil and install the drain plug using a new gasket. Refer to . "FILLING ".
