M/T Oil: Replacement: Draining

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start the engine and let it run to warm up the transaxle.
  2. Stop the engine. Remove drain plug and drain oil.
  3. Set a gasket on the drain plug and install it on the transaxle.

    Drain plug: 10 - 19 N.m (1.0 - 2.0 kg-m, 87 - 173 in-lb)

    CAUTION: Do not reuse gasket.

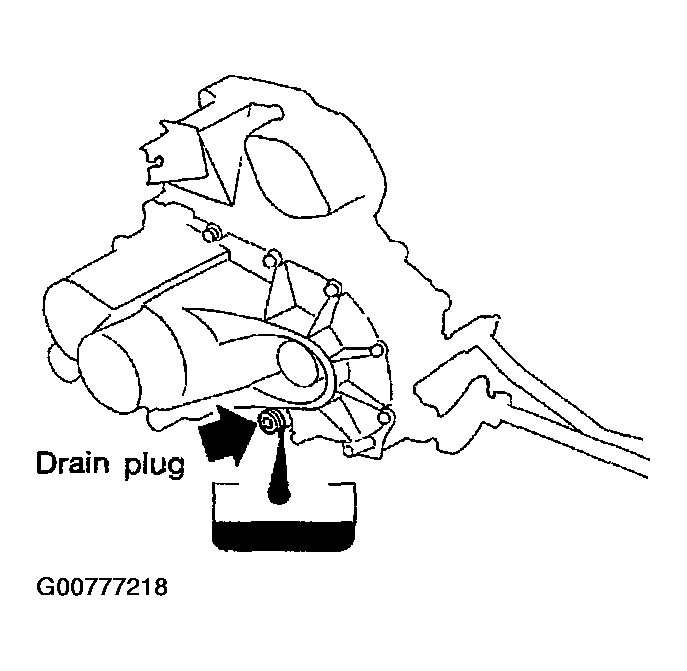

    Fig 1: M/T Oil Draining
    G00777218Courtesy of NISSAN MOTOR CO., U.S.A.
