Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For component inspection, see COMPONENT INSPECTION , for vacuum cut valve, see COMPONENT INSPECTION  under DTC P1491: VACUUM CUT VALVE BY-PASS VALVE, for EVAP control system pressure sensor, see COMPONENT INSPECTION (2.5L)  or COMPONENT INSPECTION (3.5L)  under DTC P0452: EVAP CONTROL SYSTEM PRESSURE SENSOR
and for intermittents, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

For diagnostic procedure, see Fig 1-Fig 3 .

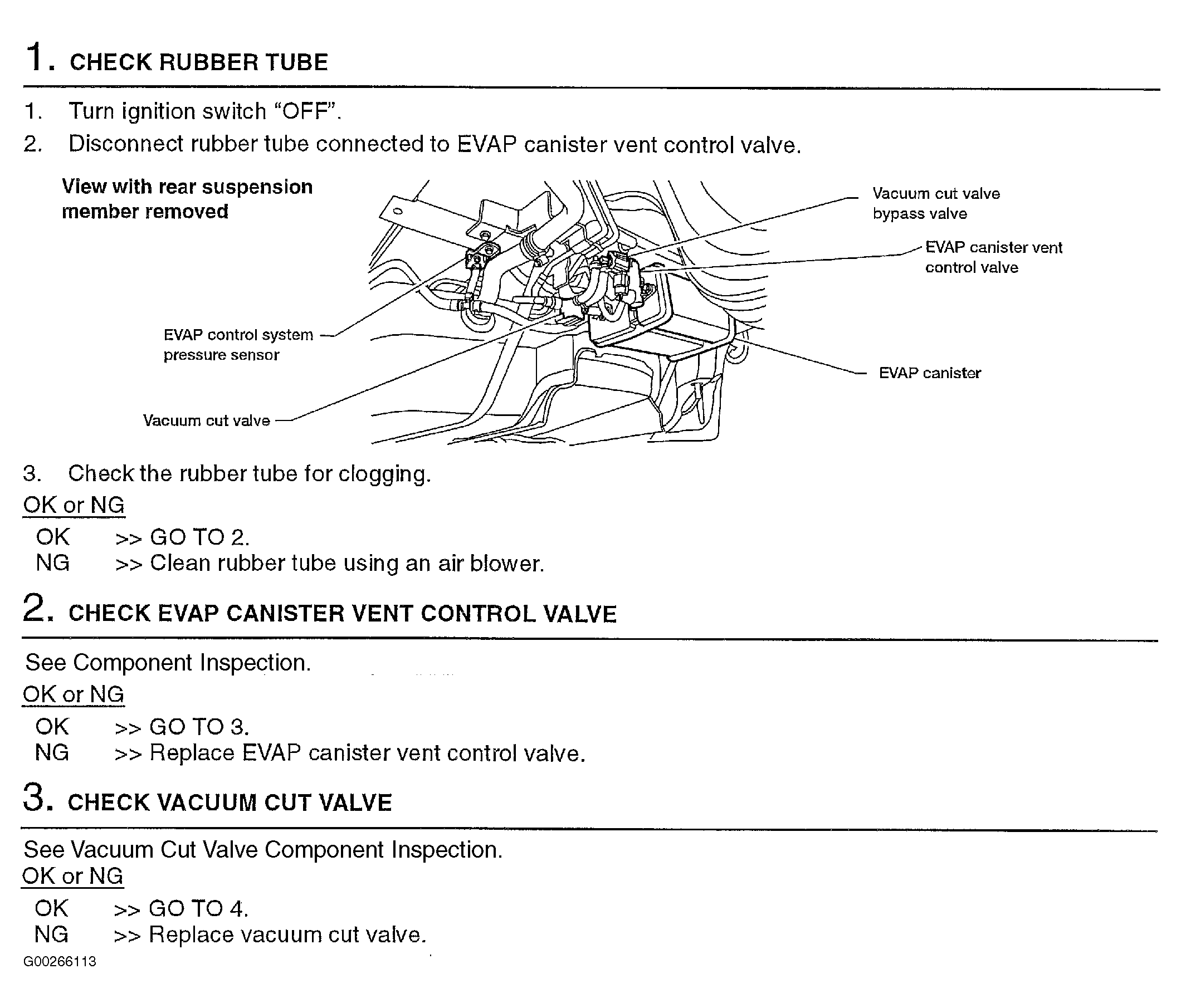

Fig 1: Identifying Diagnostic Procedure For DTC P1448: EVAP Canister Vent Control Valve (Steps 1-3 Of 10)
G00266113Courtesy of NISSAN MOTOR CO., U.S.A.

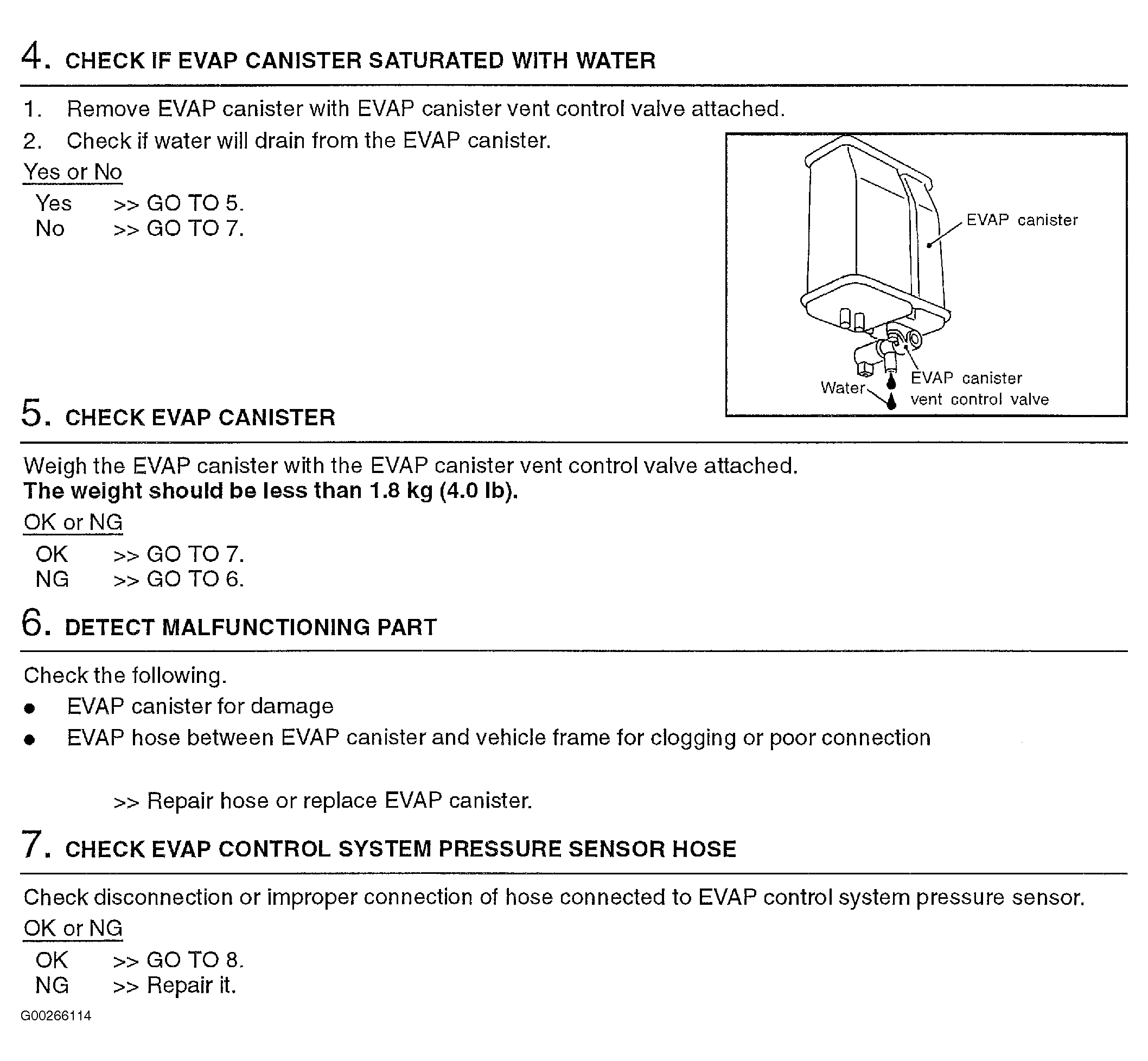

Fig 2: Identifying Diagnostic Procedure For DTC P1448: EVAP Canister Vent Control Valve (Steps 4-7 Of 10)
G00266114Courtesy of NISSAN MOTOR CO., U.S.A.

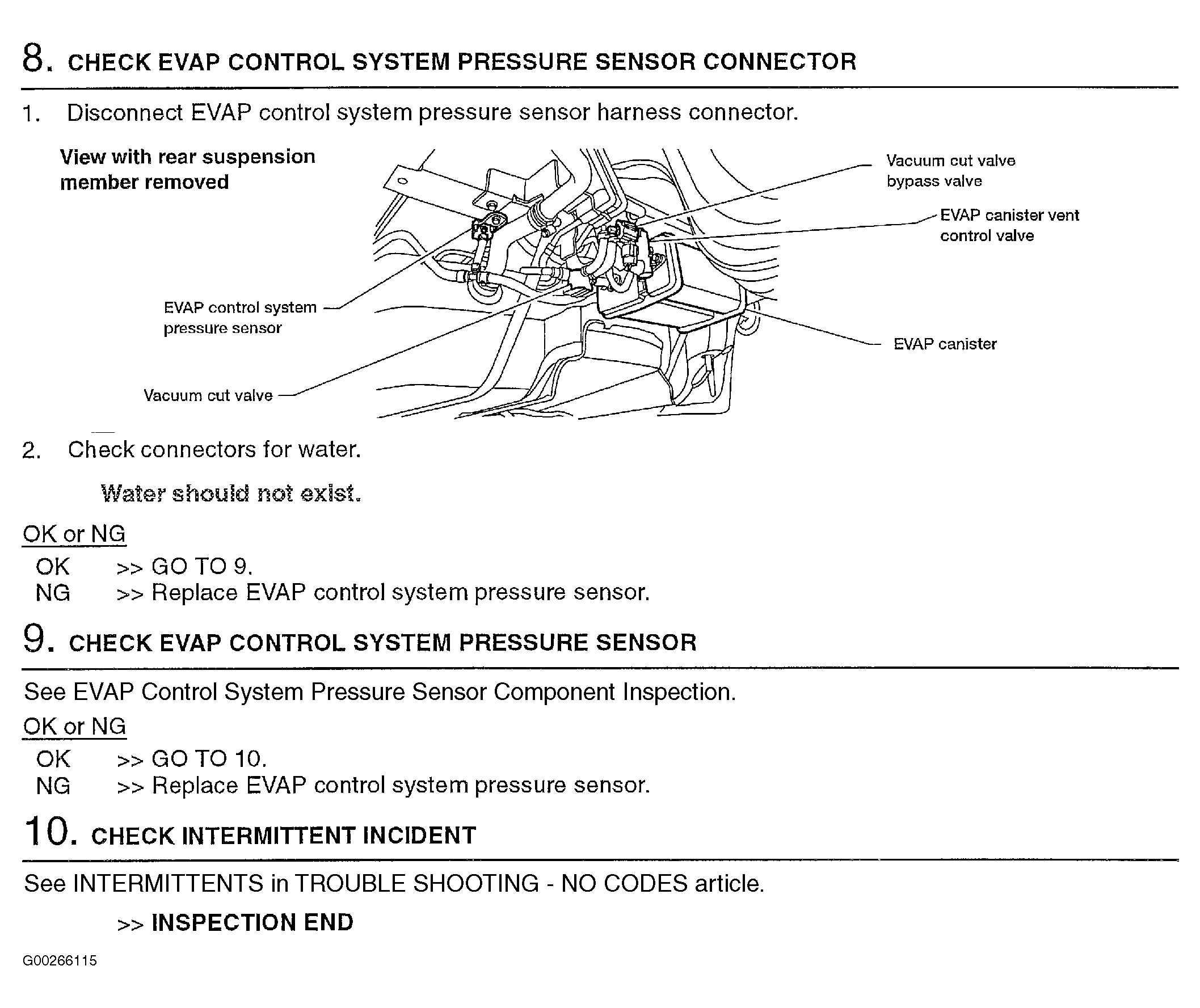

Fig 3: Identifying Diagnostic Procedure For DTC P1448: EVAP Canister Vent Control Valve (Steps 8-10 Of 10)
G00266115Courtesy of NISSAN MOTOR CO., U.S.A.
