Component Inspection (2.5L)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

EVAP Control System Pressure Sensor

For component inspection, see Fig 1.

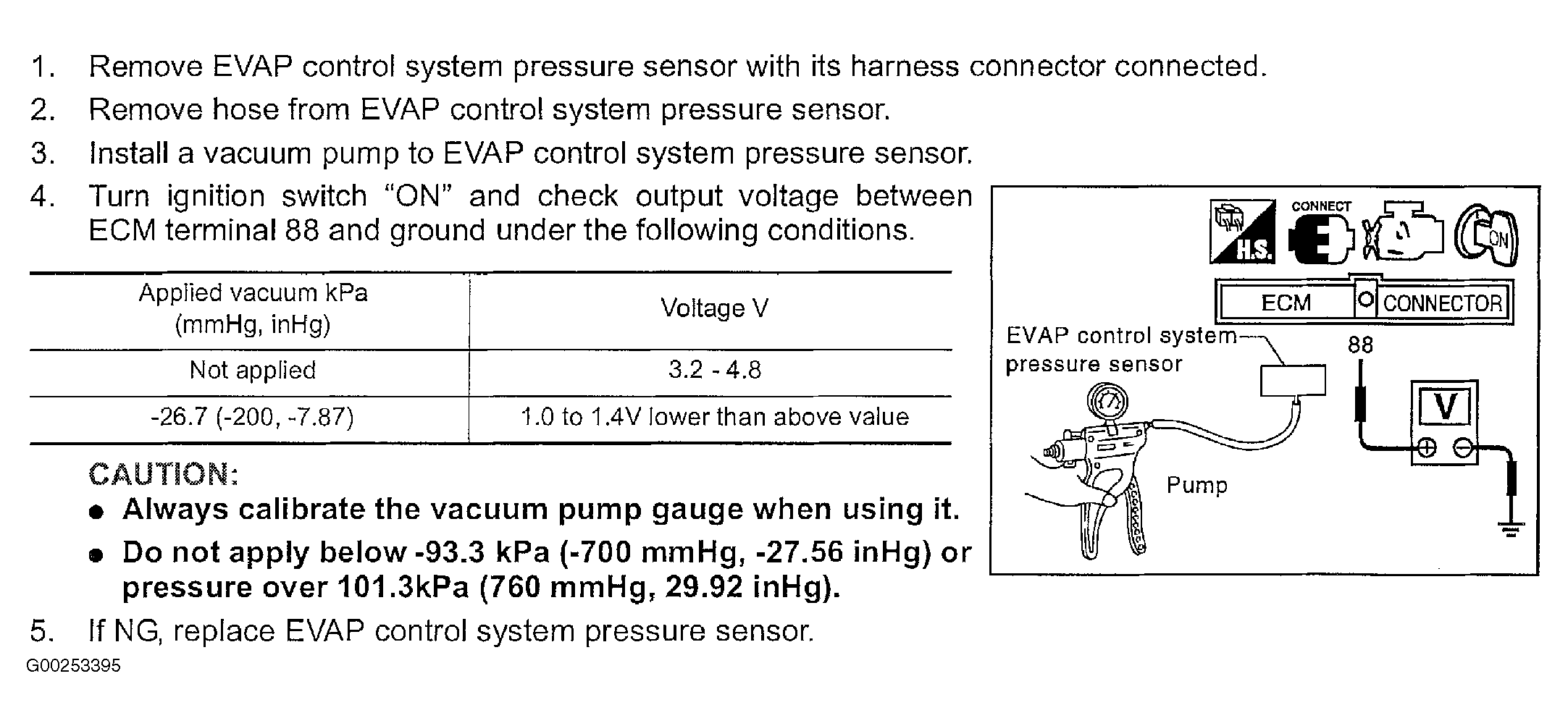

Fig 1: Component Inspection For DTC P0452: EVAP Control System Pressure Sensor (2.5L)
G00253395Courtesy of NISSAN MOTOR CO., U.S.A.
