Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

EVAP Canister Vent Control Valve

Fore component inspection, see Fig 1.

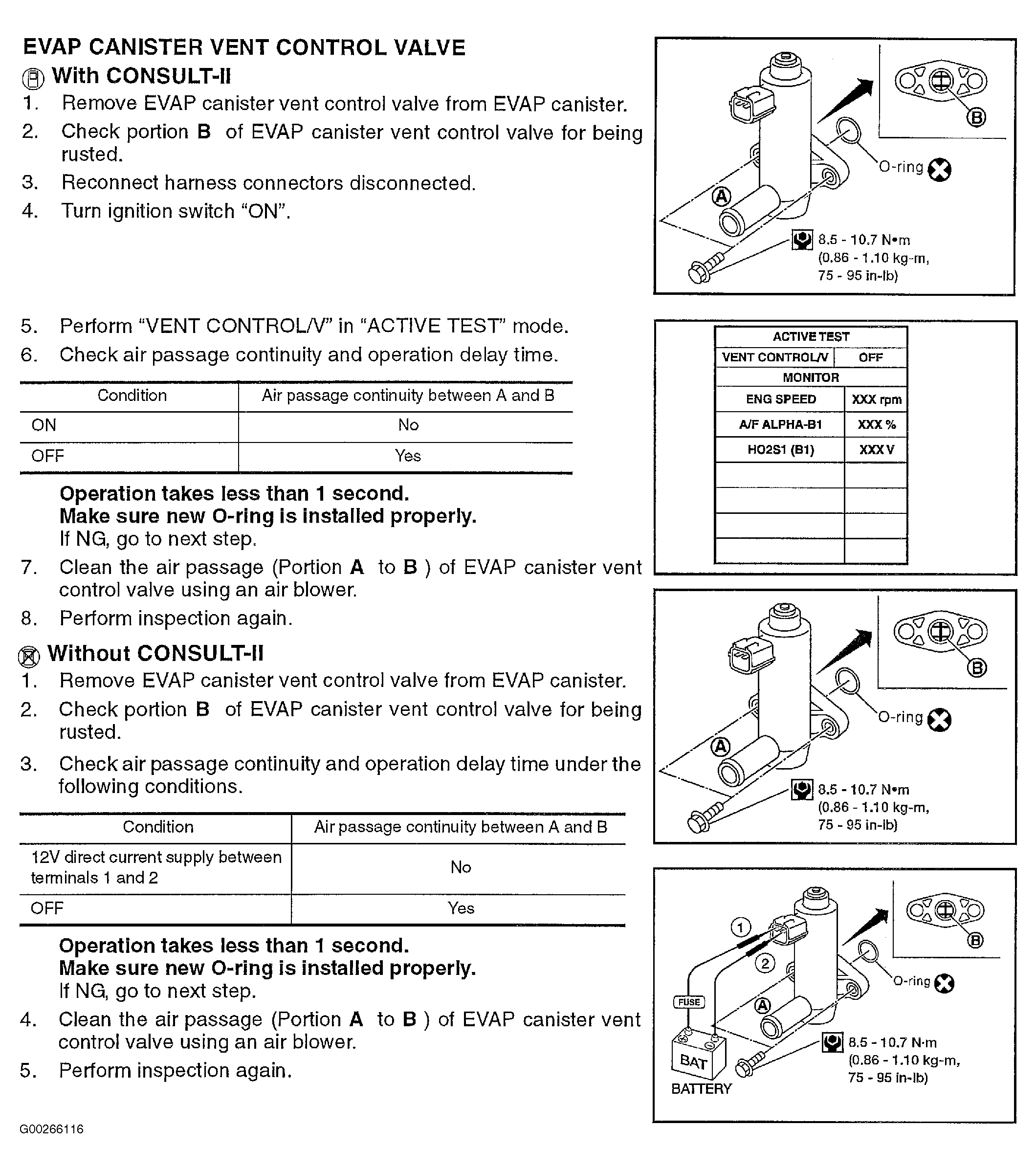

Fig 1: Identifying Component Inspection For DTC P1448: EVAP Canister Vent Control Valve
G00266116Courtesy of NISSAN MOTOR CO., U.S.A.
