Diagnostic Procedure (3.5L)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For EVAP control system pressure sensor component inspection, see COMPONENT INSPECTION (3.5L) , for component inspection, see COMPONENT INSPECTION for EVAP canister vent control valve, see COMPONENT INSPECTION under DTC P0447: EVAP CANISTER VENT CONTROL VALVE and for intermittents, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

For diagnostic procedure (3.5L), see Fig 1-Fig 4 .

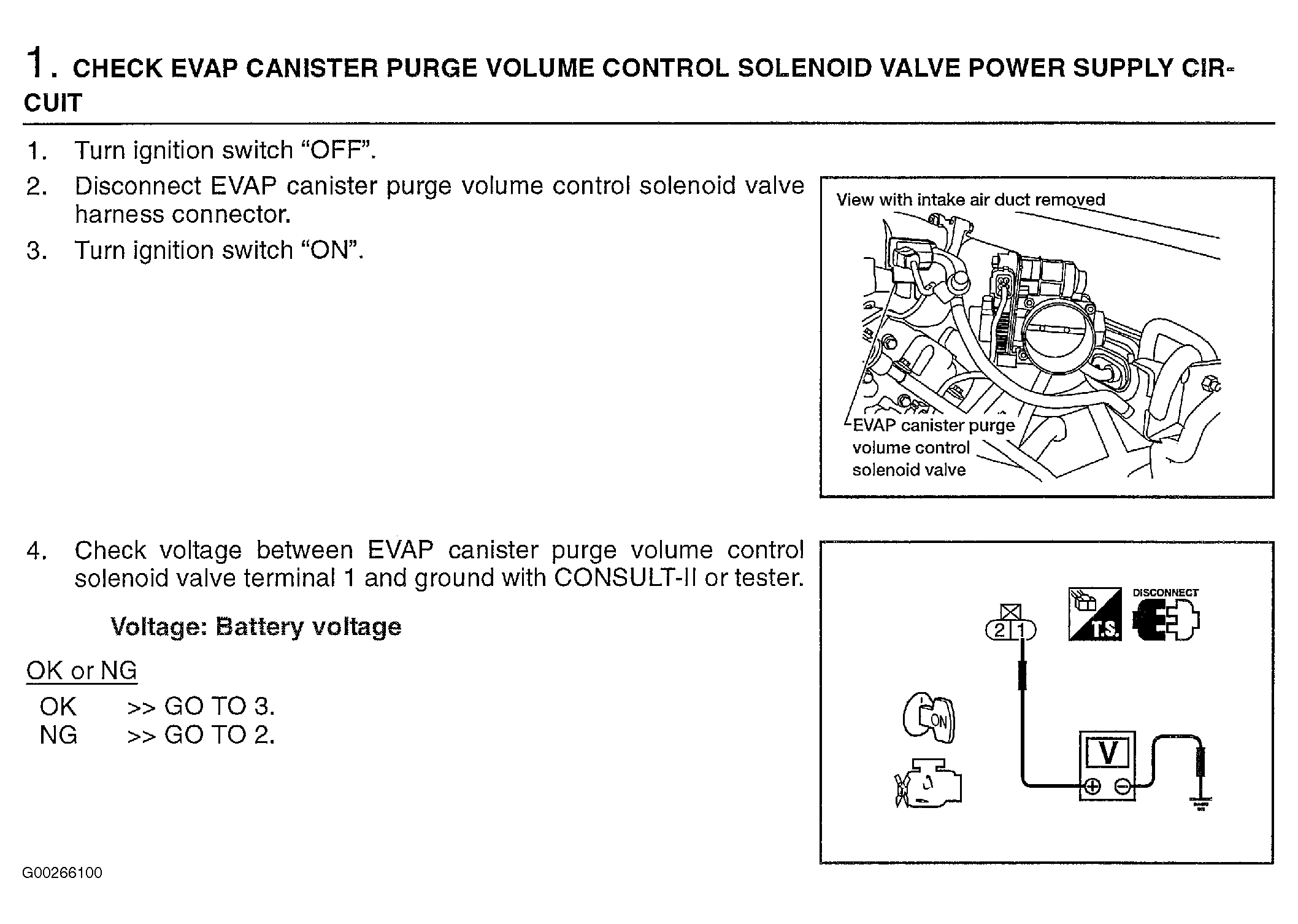

Fig 1: Identifying Diagnostic Procedure For DTC P1444: EVAP Canister Purge Volume Control Solenoid Valve (Step 1 Of 15 - 3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

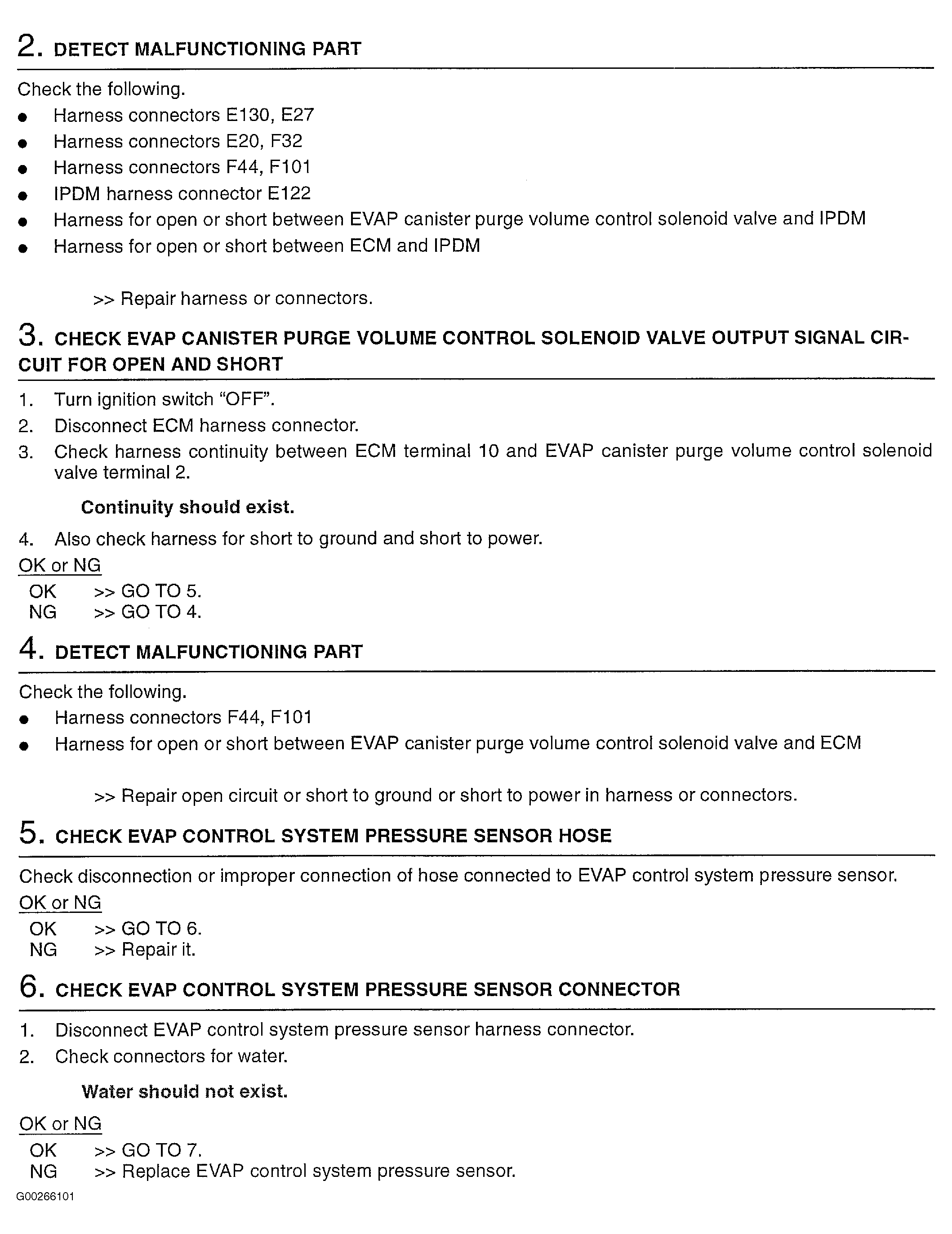

Fig 2: Identifying Diagnostic Procedure For DTC P1444: EVAP Canister Purge Volume Control Solenoid Valve (Steps 2-6 Of 15 - 3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

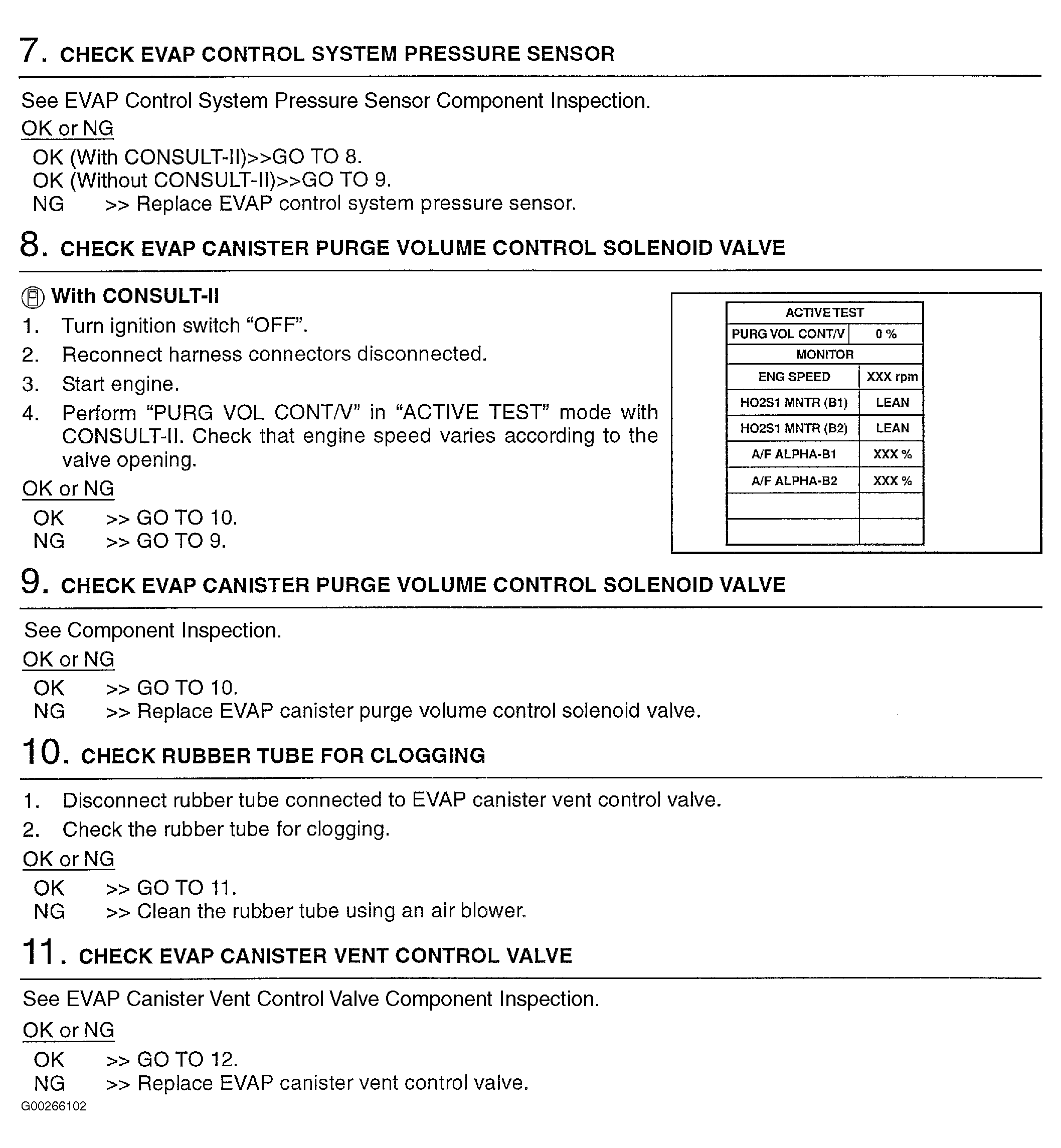

Fig 3: Identifying Diagnostic Procedure For DTC P1444: EVAP Canister Purge Volume Control Solenoid Valve (Steps 7-11 Of 15 - 3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

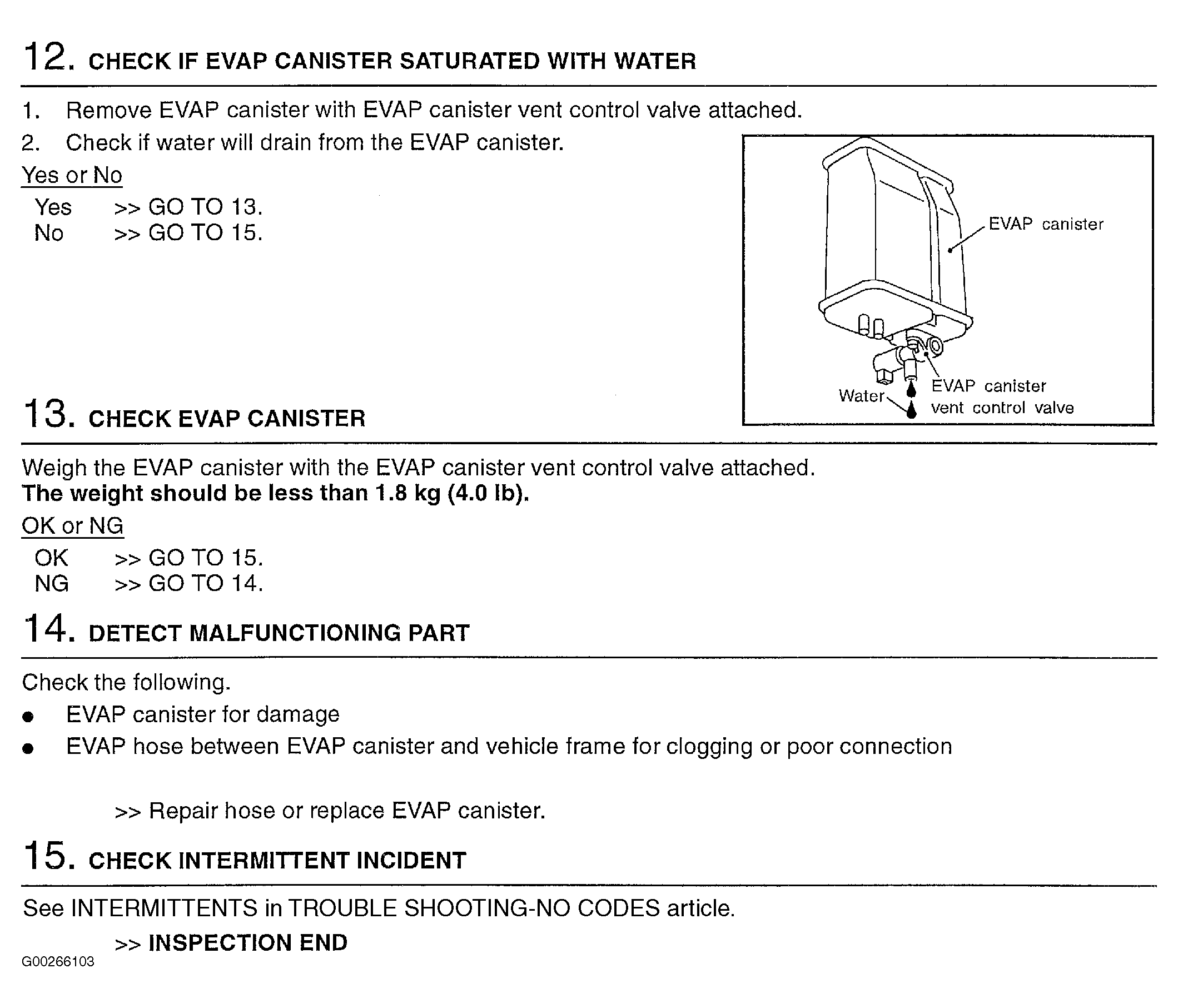

Fig 4: Identifying Diagnostic Procedure For DTC P1444: EVAP Canister Purge Volume Control Solenoid Valve (Steps 12-15 Of 15 - 3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.
