Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

For component inspection, see Fig 1 - Fig 2 .

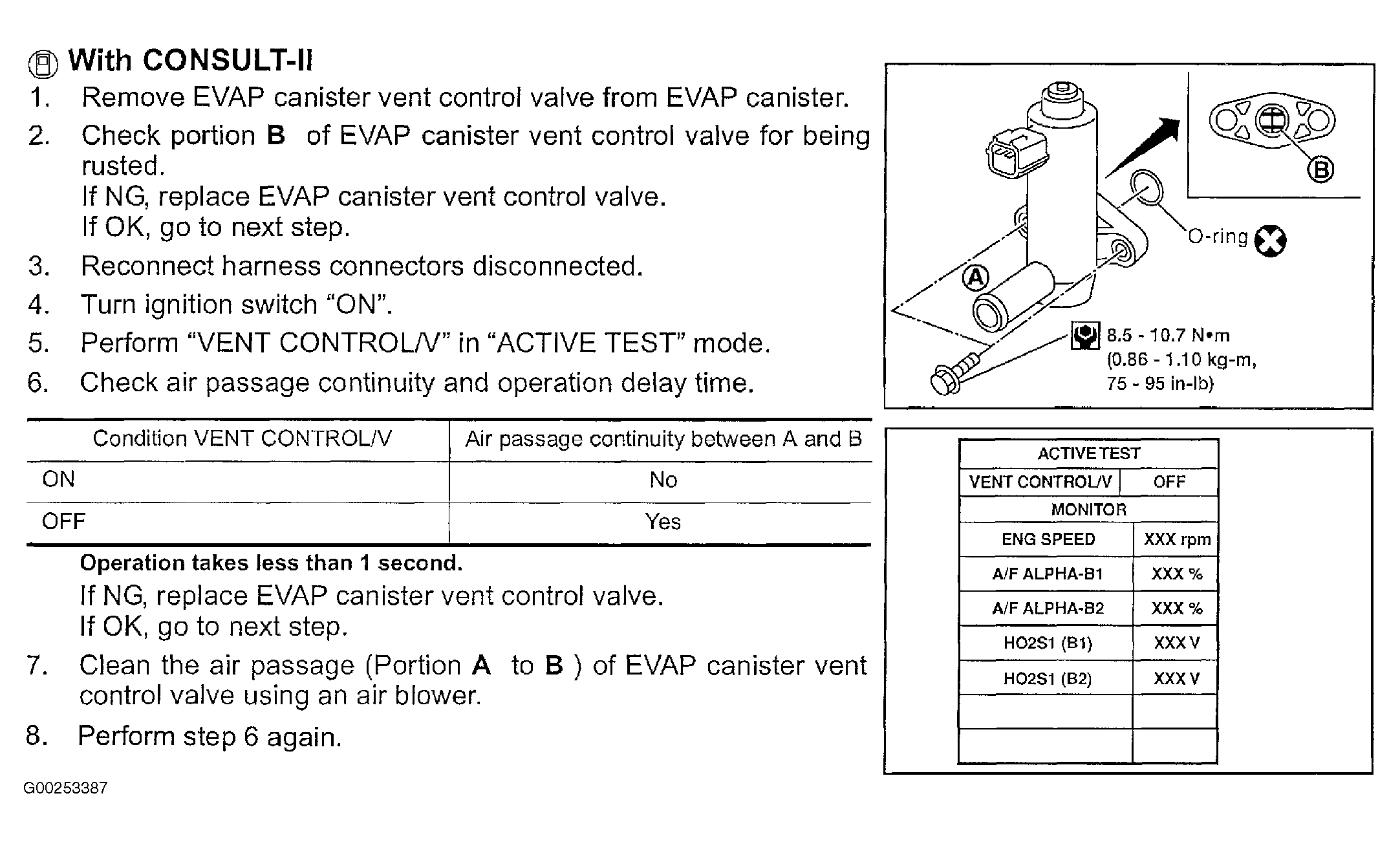

Fig 1: Component Inspection For DTC P0447: EVAP Canister Vent Control Valve (With CONSULT-II)

Courtesy of NISSAN MOTOR CO., U.S.A.

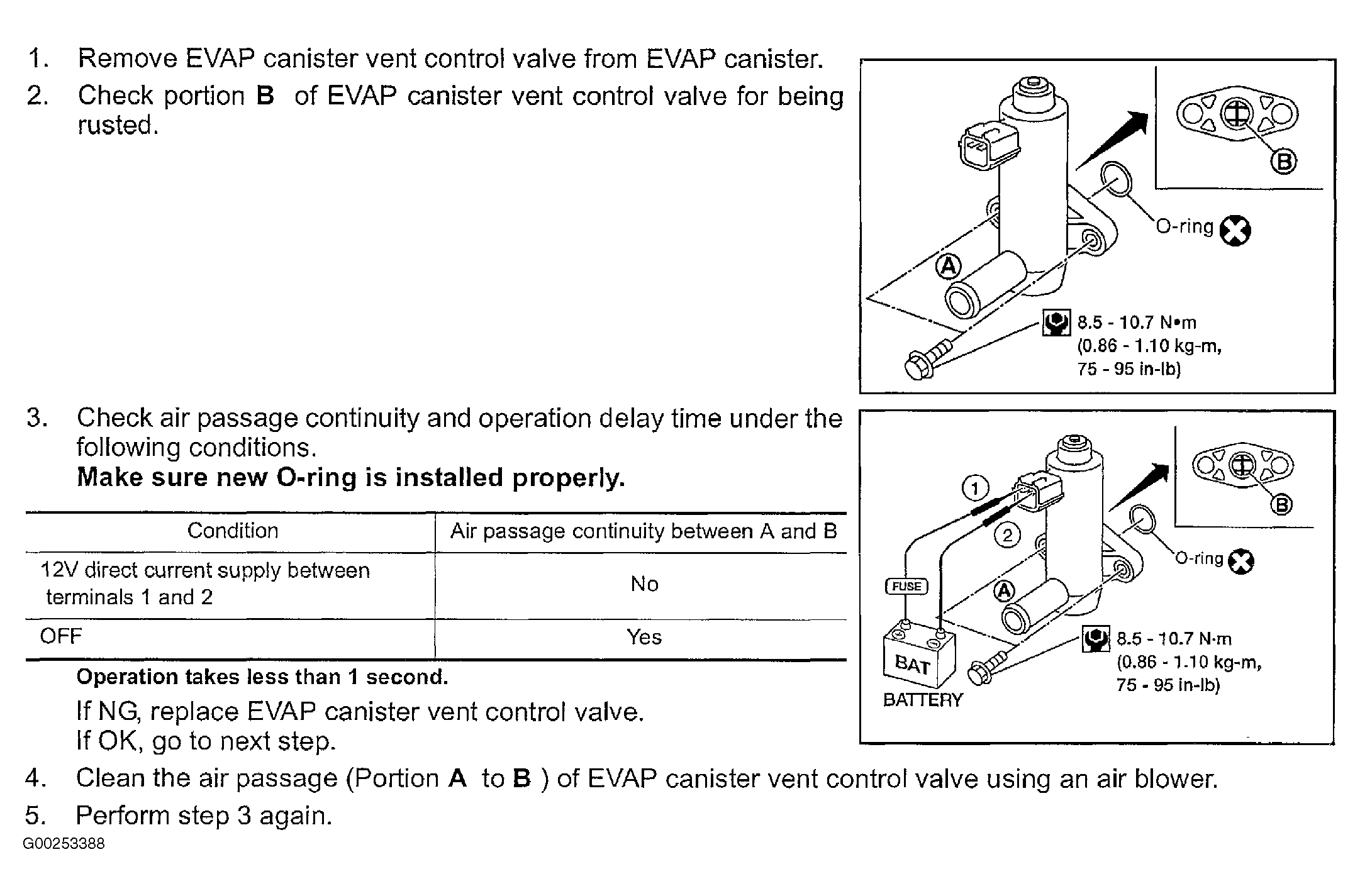

Fig 2: Component Inspection For DTC P0447: EVAP Canister Vent Control Valve (Without CONSULT-II)

Courtesy of NISSAN MOTOR CO., U.S.A.
