Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

EVAP Canister Purge Volume Control Solenoid Valve

For component inspection, see Fig 1.

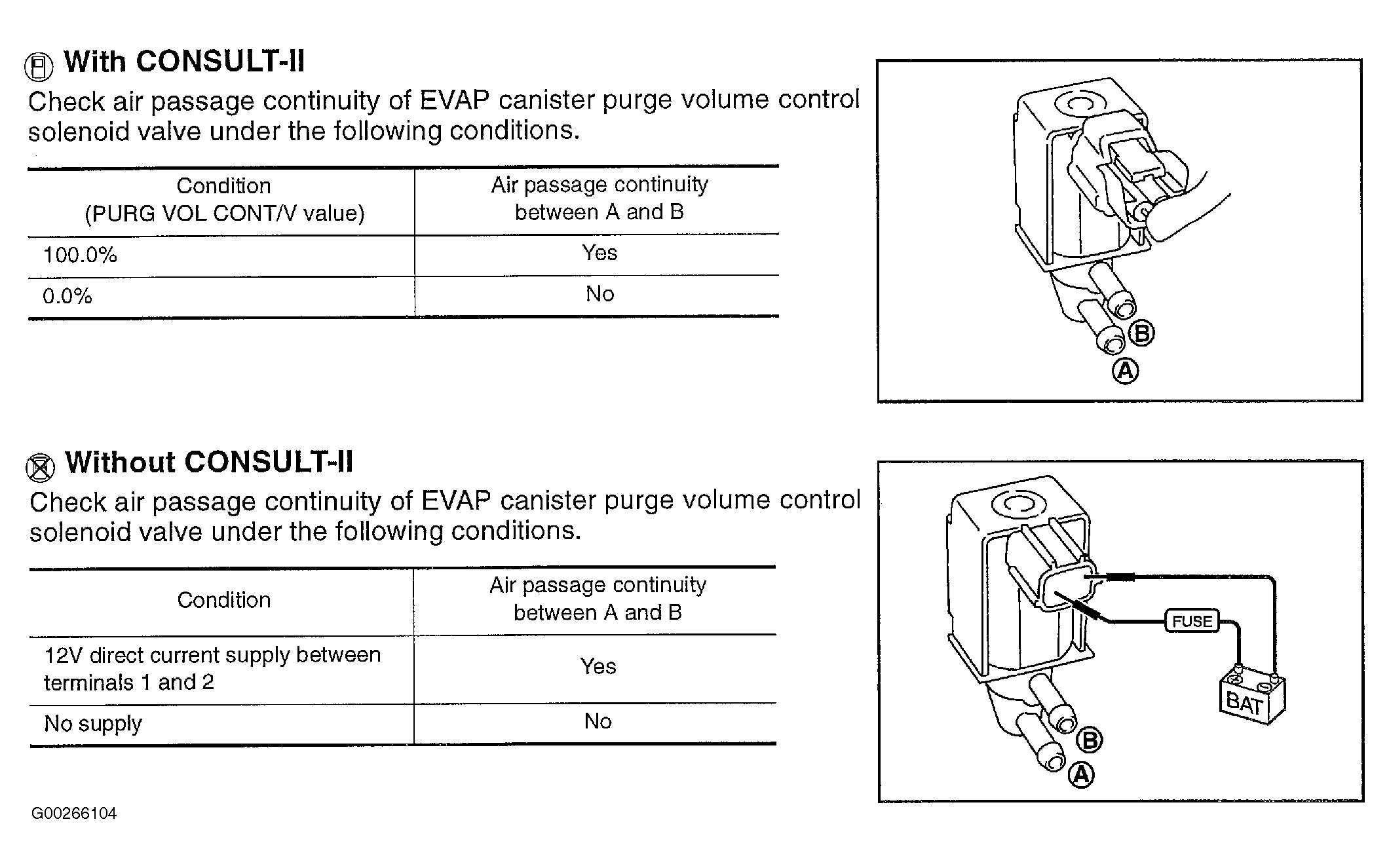

Fig 1: Component Inspection For DTC P1444: EVAP Canister Purge Volume Control Solenoid Valve
G00266104Courtesy of NISSAN MOTOR CO., U.S.A.
