Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For procedure "A", see PROCEDURE "A" , for procedure "B", see PROCEDURE "B" , for component inspection, see COMPONENT INSPECTION and for main 12 causes of overheating, see MAIN 12 CAUSES OF OVERHEATING .

For diagnostic procedure, see Fig 1-Fig 3 .

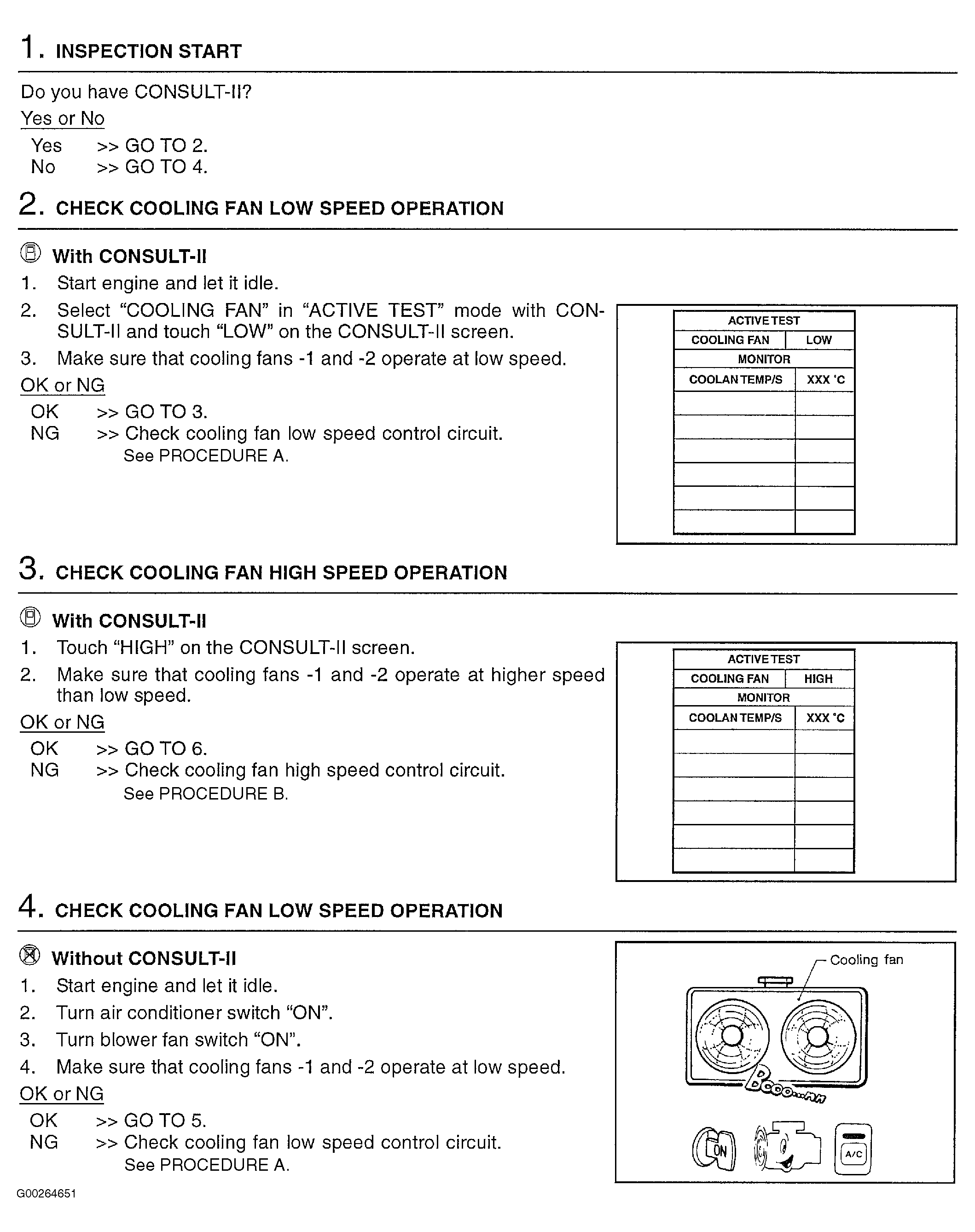

Fig 1: Identifying Diagnostic Procedure For DTC P1217: Engine Over Temperature (Steps 1-4 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

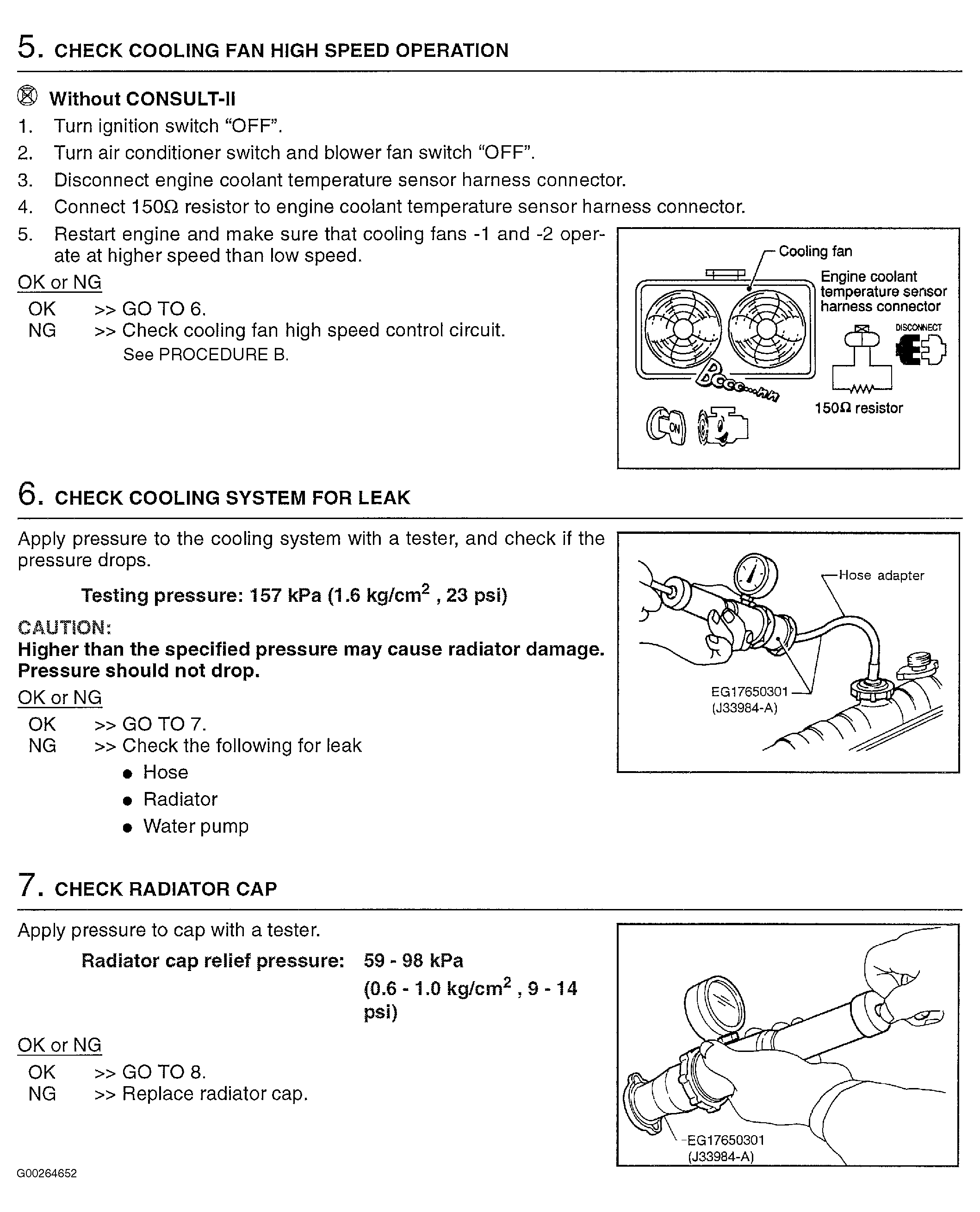

Fig 2: Identifying Diagnostic Procedure For DTC P1217: Engine Over Temperature (Steps 5-7 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

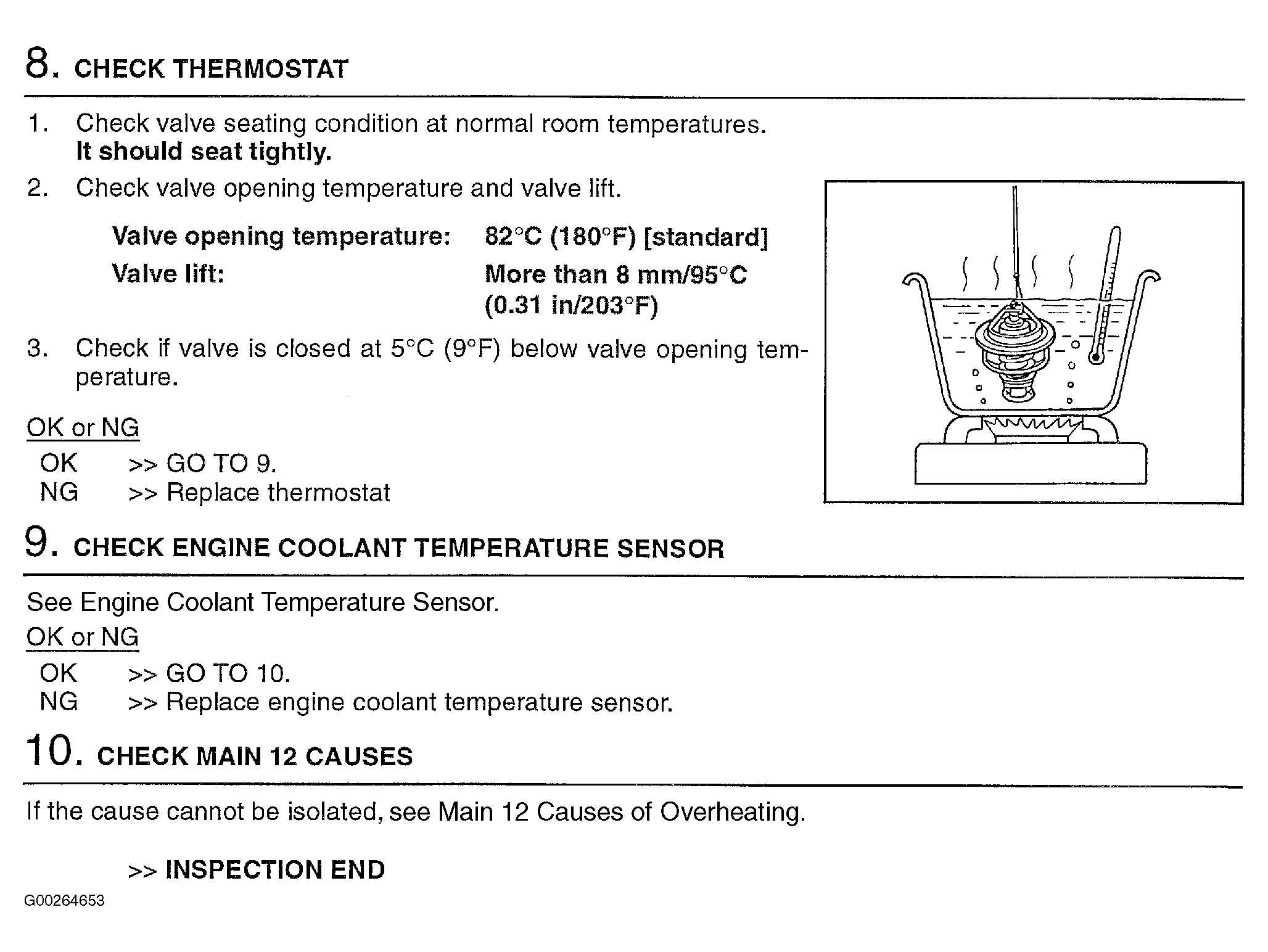

Fig 3: Identifying Diagnostic Procedure For DTC P1217: Engine Over Temperature (Steps 8-10 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.
