Procedure "B"

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For component inspection, see COMPONENT INSPECTION , for intermittents, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article and for intelligent power distribution module, see INTELLIGENT POWER DISTRIBUTION MODULE article in ACCESSORIES & EQUIPMENT.

For procedure "B", see Fig 1.

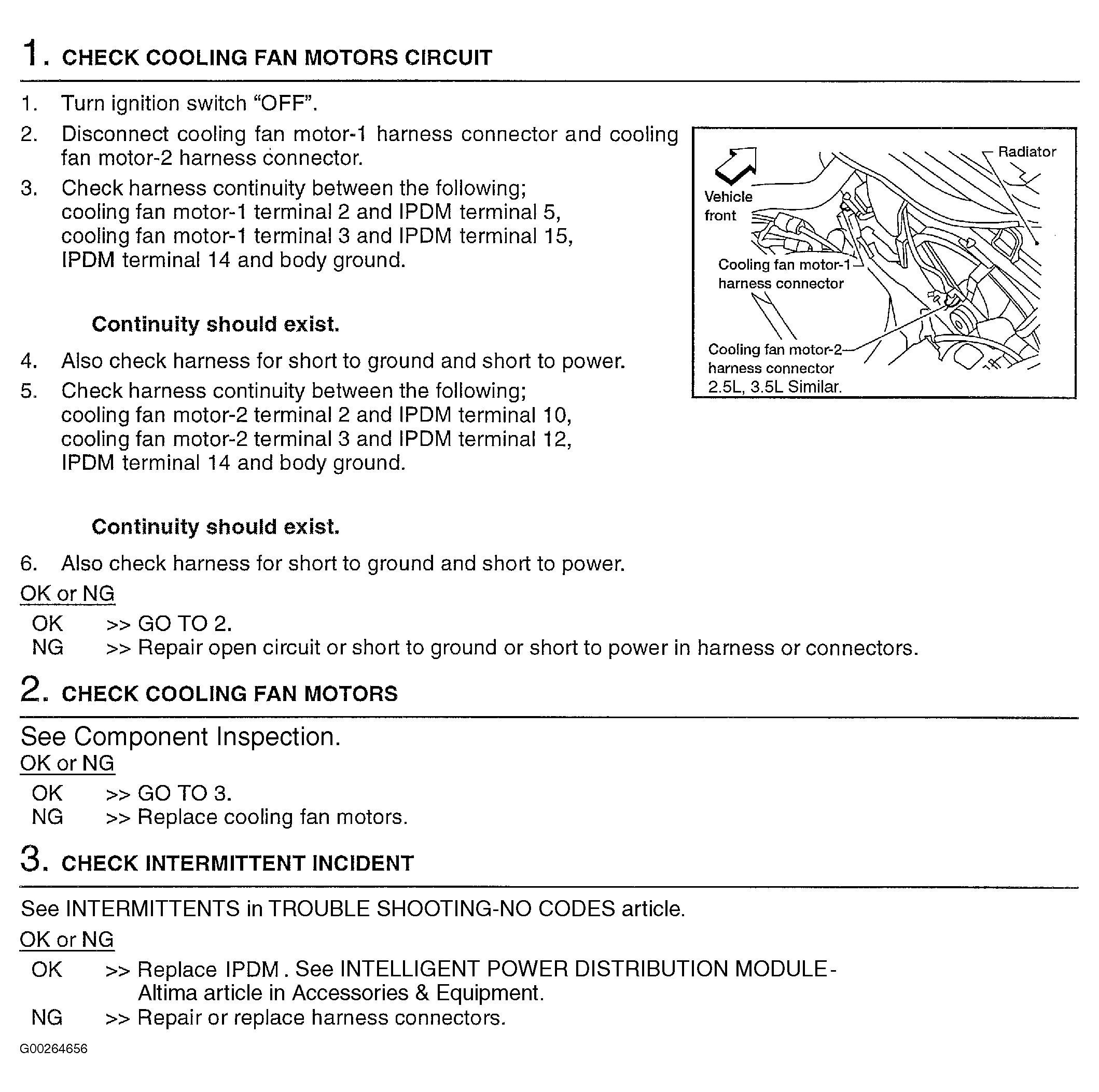

Fig 1: Identifying Procedure "B" For DTC P1217: Engine Over Temperature (Steps 1-3 Of 3)
G00264656Courtesy of NISSAN MOTOR CO., U.S.A.
