Procedure "A"

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For component inspection, see COMPONENT INSPECTION , for intermittents, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article and for intelligent power distribution module, see INTELLIGENT POWER DISTRIBUTION MODULE article in ACCESSORIES & EQUIPMENT.

For procedure "A", see Fig 1 - Fig 2.

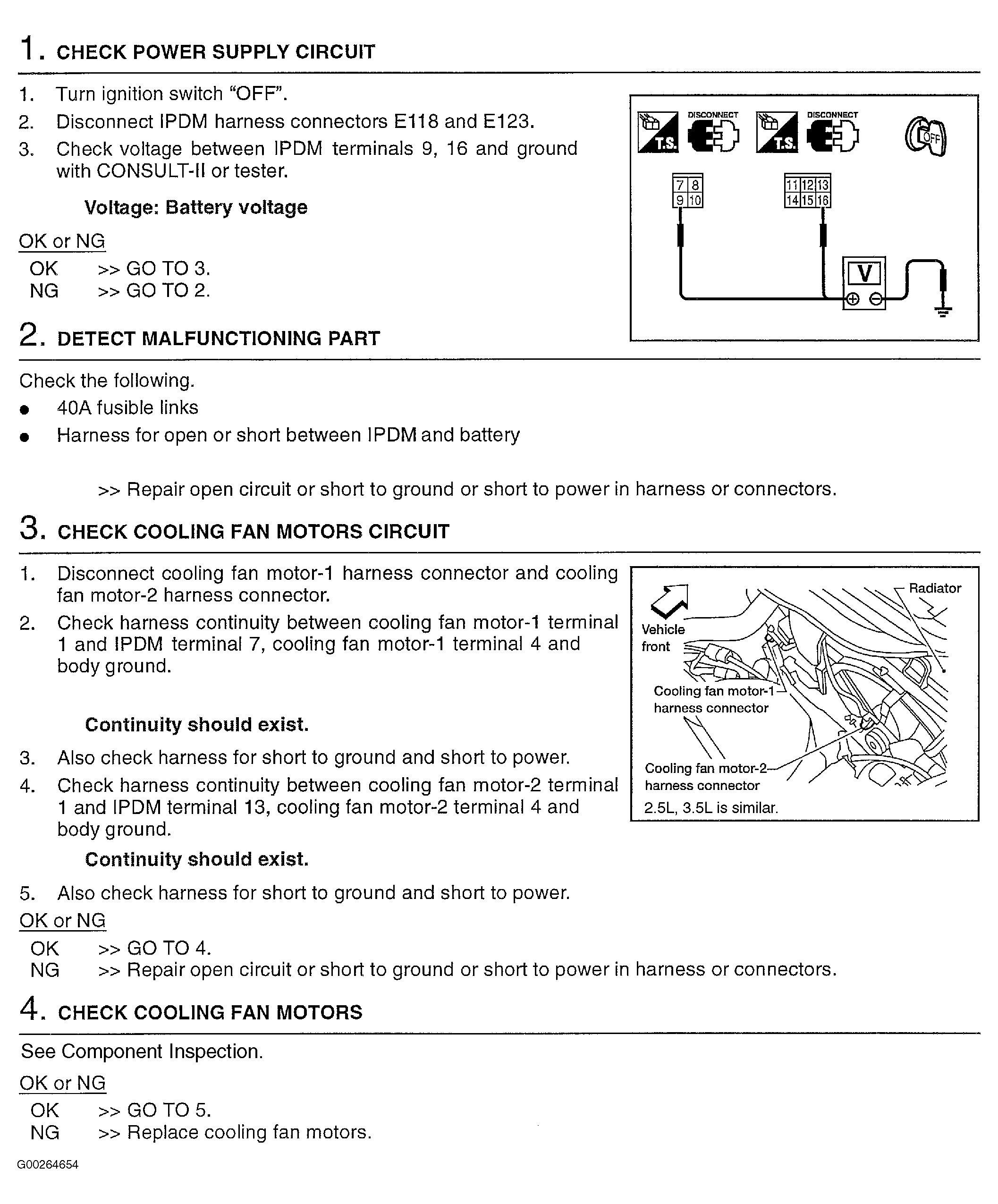

Fig 1: Identifying Procedure "A" For DTC P1217: Engine Over Temperature (Steps 1-4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

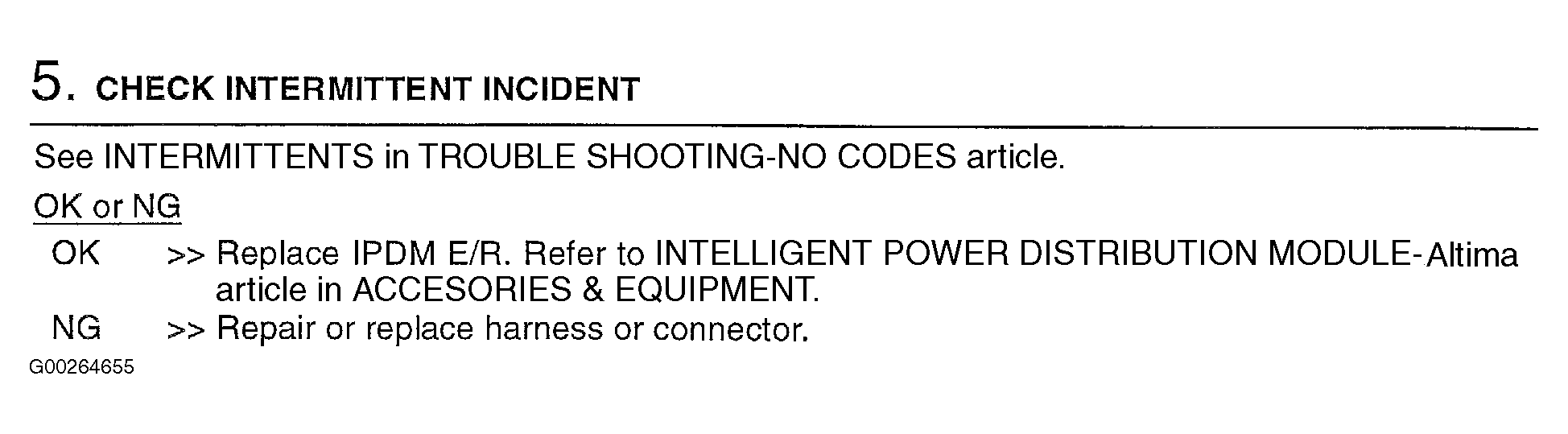

Fig 2: Identifying Procedure "A" For DTC P1217: Engine Over Temperature (Step 5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
