Diagnostic Procedure (2.5L)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For EVAP canister purge volume control solenoid valve component inspection, see COMPONENT INSPECTION under DTC P0444 OR DTC P0445: EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE, for DTC confirmation procedure for DTC P0452, see DTC CONFIRMATION TEST (WITH CONSULT-II) under DTC P0452: EVAP CONTROL SYSTEM PRESSURE SENSOR, For DTC confirmation procedure for DTC P0453, see DTC CONFIRMATION PROCEDURE under DTC P0453: EVAP CONTROL SYSTEM PRESSURE SENSOR, for EVAP canister vent control valve component inspection, see COMPONENT INSPECTION under DTC P0447: EVAP CANISTER VENT CONTROL VALVE and for intermittents, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

For diagnostic procedure, see Fig 1- Fig 4 .

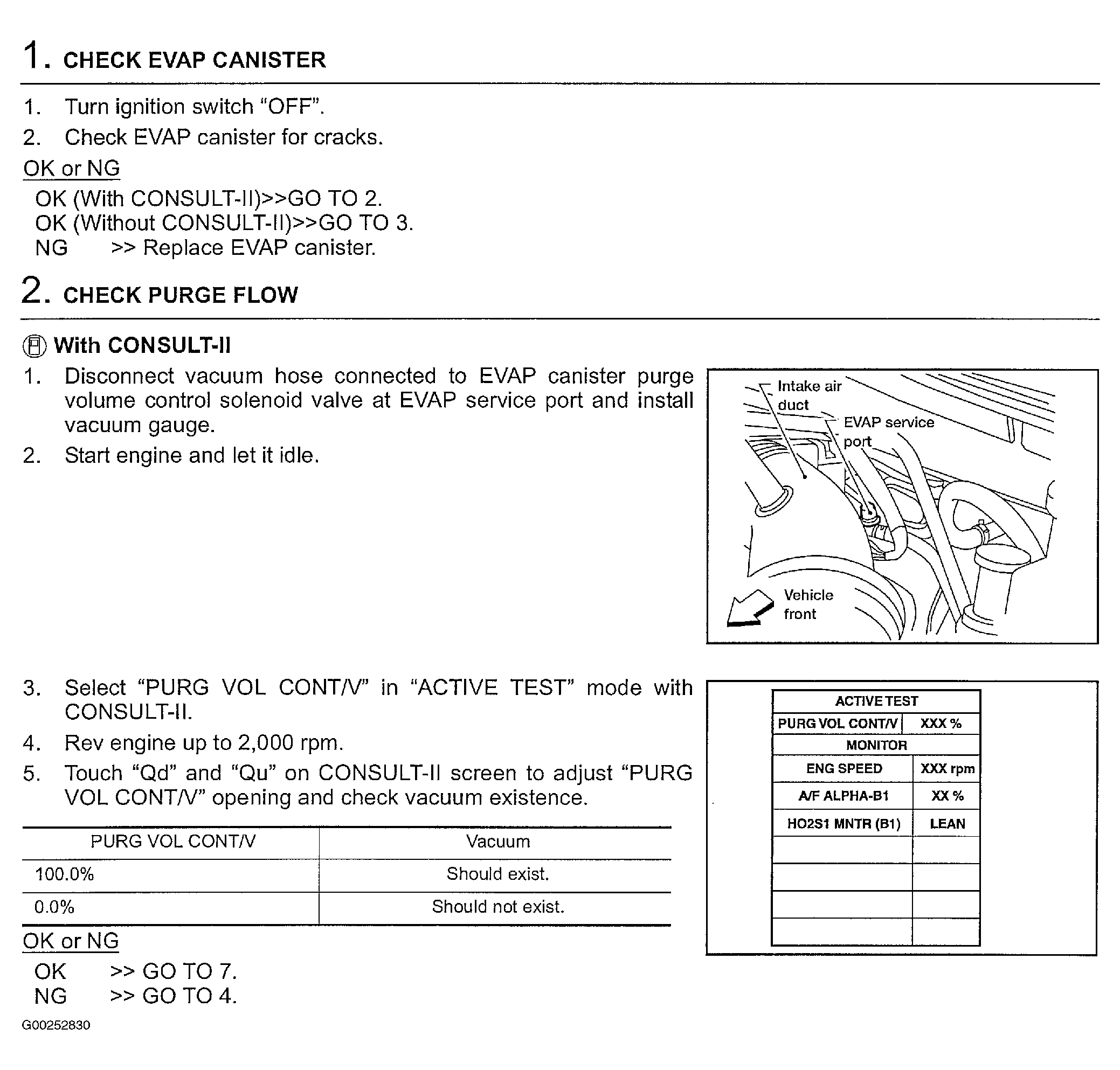

Fig 1: Identifying Diagnostic Procedure For DTC P0441: EVAP Control System (Steps 1-2 Of 15 - 2.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

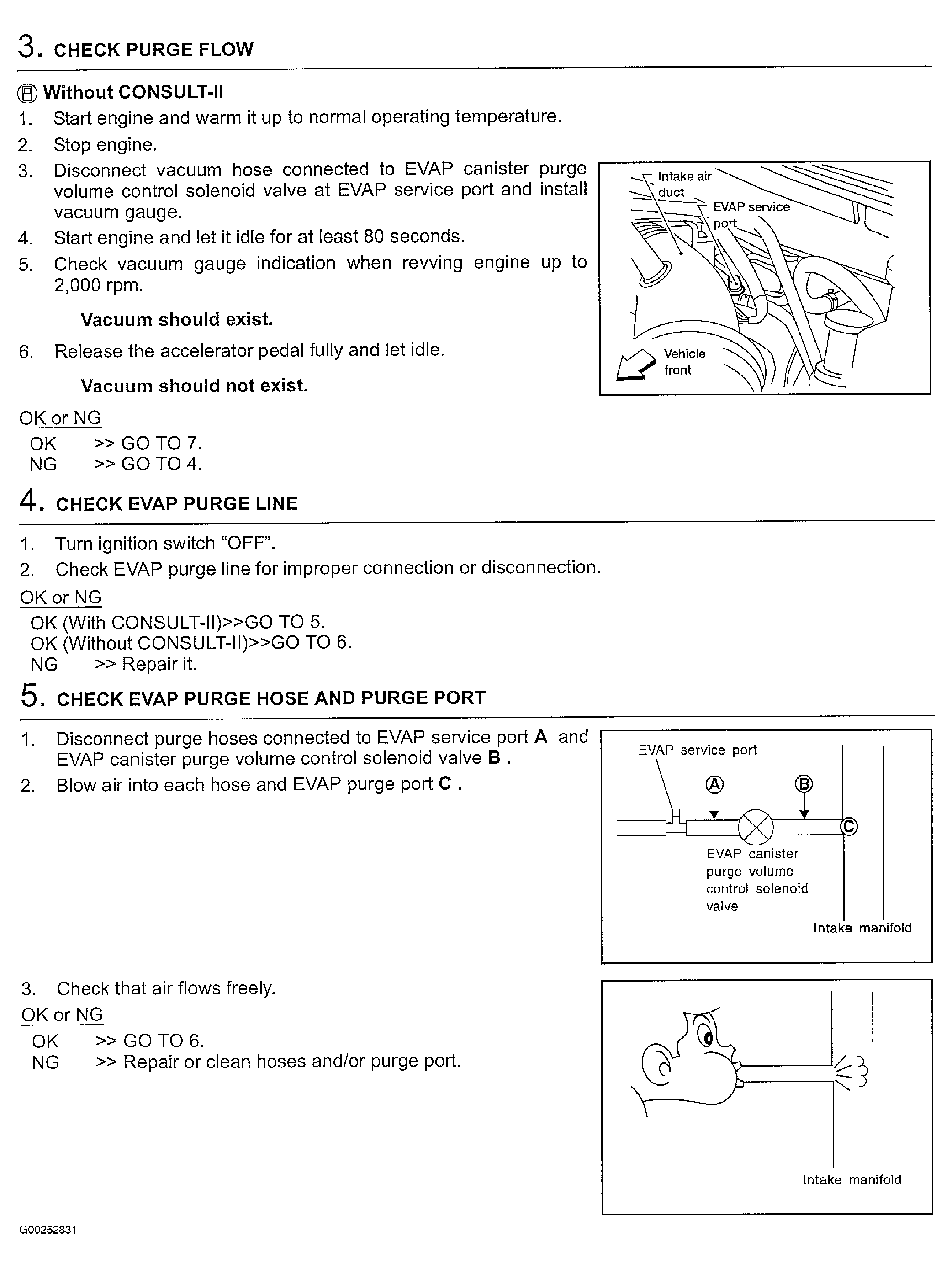

Fig 2: Identifying Diagnostic Procedure For DTC P0441: EVAP Control System (Steps 3-5 Of 15 - 2.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

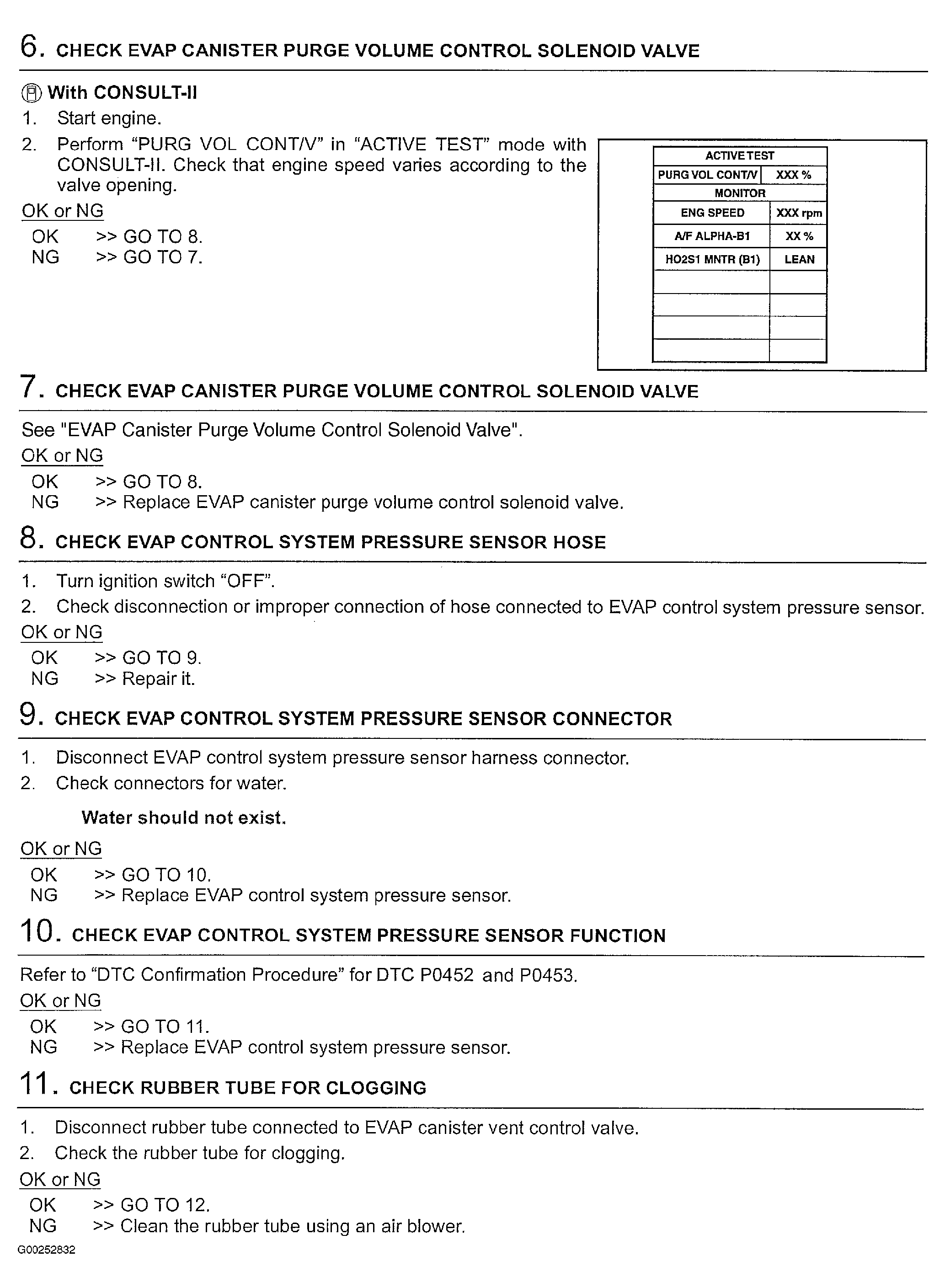

Fig 3: Identifying Diagnostic Procedure For DTC P0441: EVAP Control System (Steps 6-11 Of 15 - 2.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

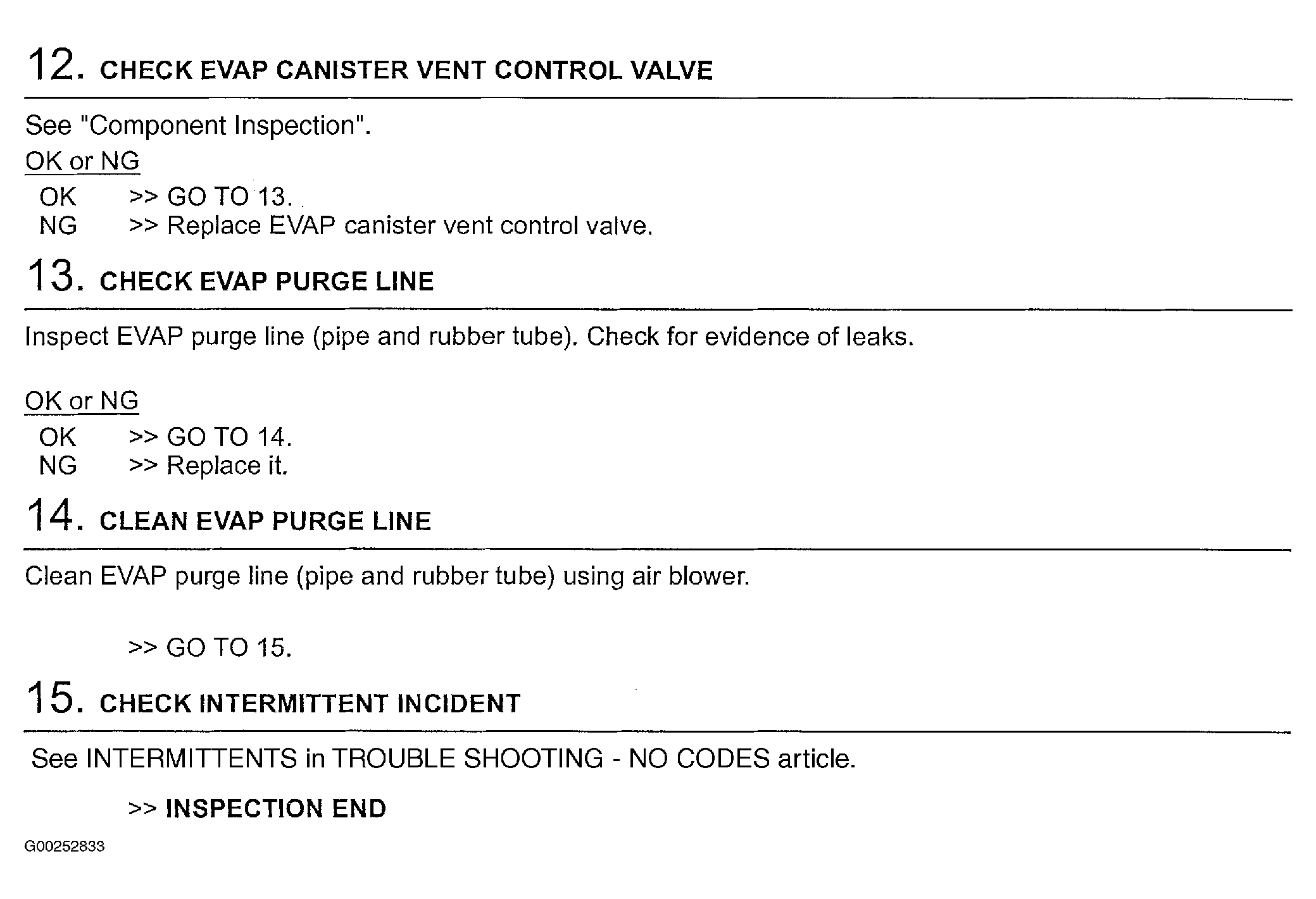

Fig 4: Identifying Diagnostic Procedure For DTC P0441: EVAP Control System (Steps 12-15 Of 15 - 2.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.
