Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

EVAP Canister Purge Volume Control Solenoid Valve

For component inspection, see Fig 1.

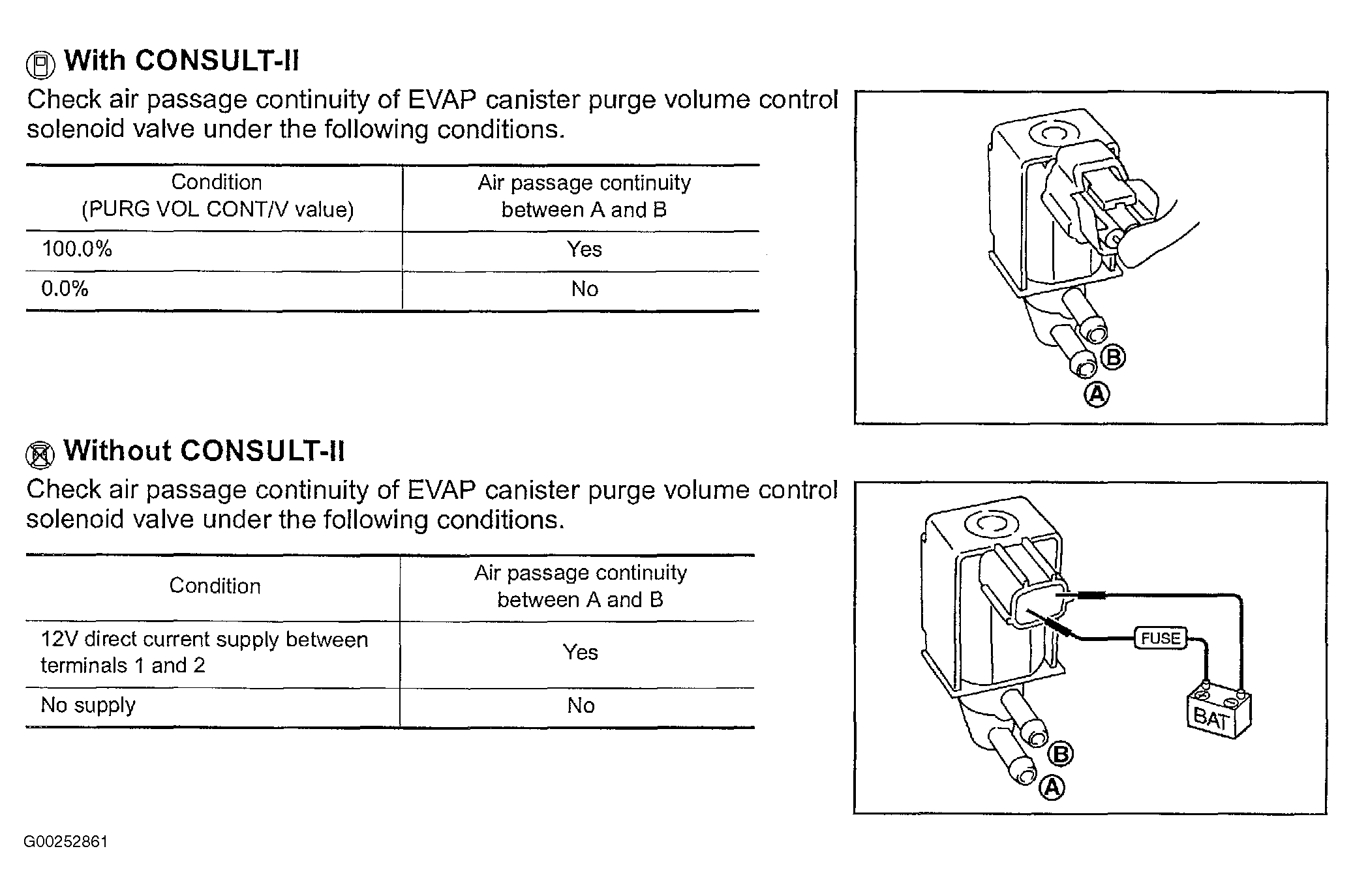

Fig 1: Identifying Component Inspection For DTC P0444 Or DTC P0445: EVAP Canister Purge Volume Control Solenoid Valve
G00252861Courtesy of NISSAN MOTOR CO., U.S.A.
