Inspection Procedure 1: None of headlights (low-beam) illuminates: Diagnosis

Required Special Tools:

• MB992006: Extra fine probe
• MB991223: Harness set
• MB991958 Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824: Vehicle Communication Interface (V.C.I.)
  • MB991827 M.U.T.-III USB Cable
  • MB991910 M.U.T.-III Main Harness A (Vehicles with CAN communication system)

1. STEP 1. Using scan tool MB991958, read the diagnostic trouble code.
   CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

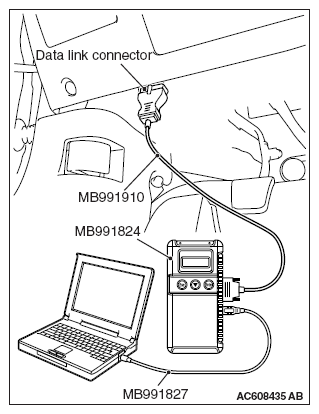

   1. Connect scan tool MB991958. Refer to "HOW TO CONNECT SCAN TOO (M.U.T.-III)  ."
   2. Turn the ignition switch to the "ON" position.
   3. Check whether the ETACS-ECU related DTC is set.
   4. Turn the ignition switch to the "LOCK" (OFF) position.

   Q: Is the DTC set?

   1. YES:  Diagnose the ETACS-ECU. Refer to DIAGNOSIS .
   2. NO:  Go to Step 2.
      Fig 1: Identifying Special Tools

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. STEP 2. Using scan tool MB991958, check data list

   Use the ETACS-ECU service data to check the signals related to the operation of headlight function.

   • Turn the headlight switch to the ON position.

     Item No.	Item name	Normal condition
     Item 341	Headlight switch	ON

   Q: Do scan tool MB991958 display the items "Headlight switch" as normal condition?

   1. YES:  Go to Step 3.
   2. NO:  Troubleshoot the ETACS-ECU. Refer to DIAGNOSIS .
3. STEP 3. Check headlight relay (LOW) connector A-25X for loose, corroded or damaged terminals, or terminals pushed back in the connector.

   Q: Is headlight relay (LOW) connector A-25X in good condition?

   1. YES < Halogen type >:  Go to  Step 5.
   2. YES < Discharge type >:  Go to Step 4.
   3. NO:  Repair the damaged parts.
4. STEP 4. Check of headlight relay (LOW)

   Refer to HEADLIGHT RELAY (LOW) CHECK < VEHICLES WITH DISCHARGE HEADLIGHT >  .

   Q: Is the headlight relay (LOW) in good condition?

   1. YES:  Go to Step 5.
   2. NO:  Replace the headlight relay (LOW). Verify that the high-beam headlights illuminate normally.
5. STEP 5. Check the battery power supply circuit to the headlight relay (LOW). Measure the voltage at headlight relay (LOW) connector A-25X.
   CAUTION: The top and bottom of the headlight relay (LOW) are difficult to identify. Prior to inspection, confirm the triangle mark on the relay box.
   1. Disconnect headlight relay (LOW) connector A-25X and measure the voltage available at the relay box side of the connector.
   2. Measure the voltage between terminal 4 and ground.

      OK: The voltage should measure approximately 12 volts (battery positive voltage).

   Q: Is the measured voltage approximately 12 volts (battery positive voltage)?

   1. YES:  Go to Step 6.
   2. NO:  Go to  Step 8.
6. STEP 6. Check ETACS-ECU connector C-312 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

   Q: Is ETACS-ECU connector C-312 in good condition?

   1. YES:  Go to Step 7.
   2. NO:  Repair the damaged parts.
7. STEP 7. Check the wiring harness between headlight relay (LOW) connector A-25X (terminal 1) and ETACS-ECU connector C-312 (terminal 6).
   • Check the output line for open circuit.

   Q: Is the wiring harness between headlight relay (LOW) connector A-25X (terminal 1) and ETACS-ECU connector C-312 (terminal 6) in good condition?

   1. YES:  Go to  Step 9.
   2. NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the low-beam headlights illuminate normally.
8. STEP 8. Check the wiring harness between headlight relay (LOW) connector A-25X (terminal 4) and the fusible link (36).
   • Check the power supply line for open circuit.

   Q: Is the wiring harness between headlight relay (LOW) connector A-25X (terminal 4) and fusible link (36) in good condition?

   1. YES:  Go to Step 9.
   2. NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the low-beam headlights illuminate normally.
9. STEP 9. Temporarily replace the headlight relay (LOW), and retest the system.

   Temporarily replace the headlight relay (LOW), check that the headlights (low-beam) illuminate normally.

   Q: Does the headlights (low-beam) do not illuminate in good condition?

   1. YES:  Replace the headlight relay (LOW).
   2. NO:  Replace the ETACS-ECU.
