Headlight Relay (Low) Check (Vehicles With Discharge Headlight)

WARNING: This page is about a different car, the 2015 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

Battery voltage	Terminal number	Normal conditions
Not energized	3 - 4	No continuity
With current supply [terminal 2 (+), terminal 1 (-)]	3 - 4	Continuity exists (2 ohms or less)

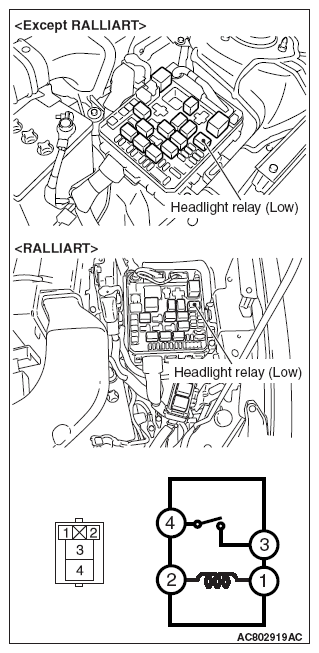

Fig 1: Identifying Low Headlight Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
