Removal And Installation: Notes

Pre-removal operation

Engine Room Under Cover Front B and Engine Room Side Cover (RH) Removal (Refer to REMOVAL AND INSTALLATION ).

Post-installation operation

Drive Belt Tension Check (Refer to DRIVE BELT TENSION CHECK ).
Engine Room Under Cover Front B and Engine Room Side Cover (RH) Installation (Refer to REMOVAL AND INSTALLATION ).

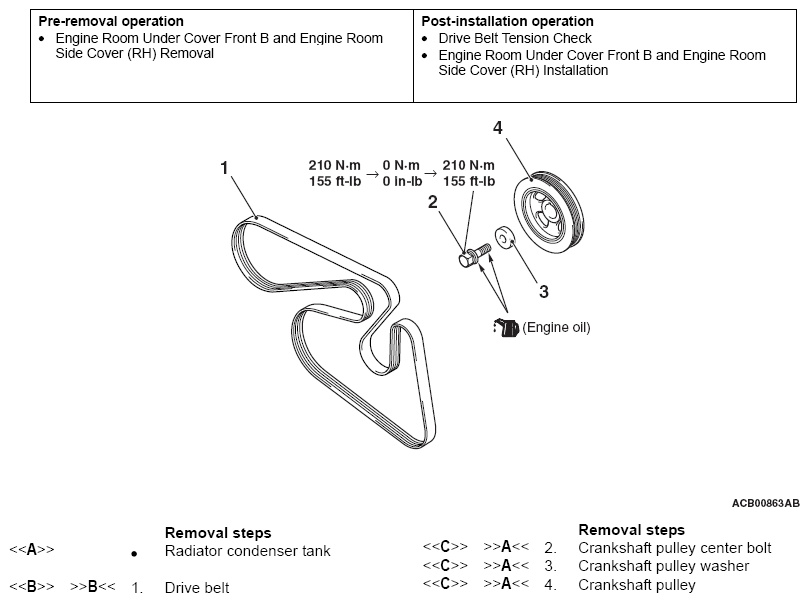

Fig 1: Crankshaft Pulley And Mounting Bolt With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
