Removal And Installation

FRONT BUMPER ASSEMBLY: Type A < RALLIART >

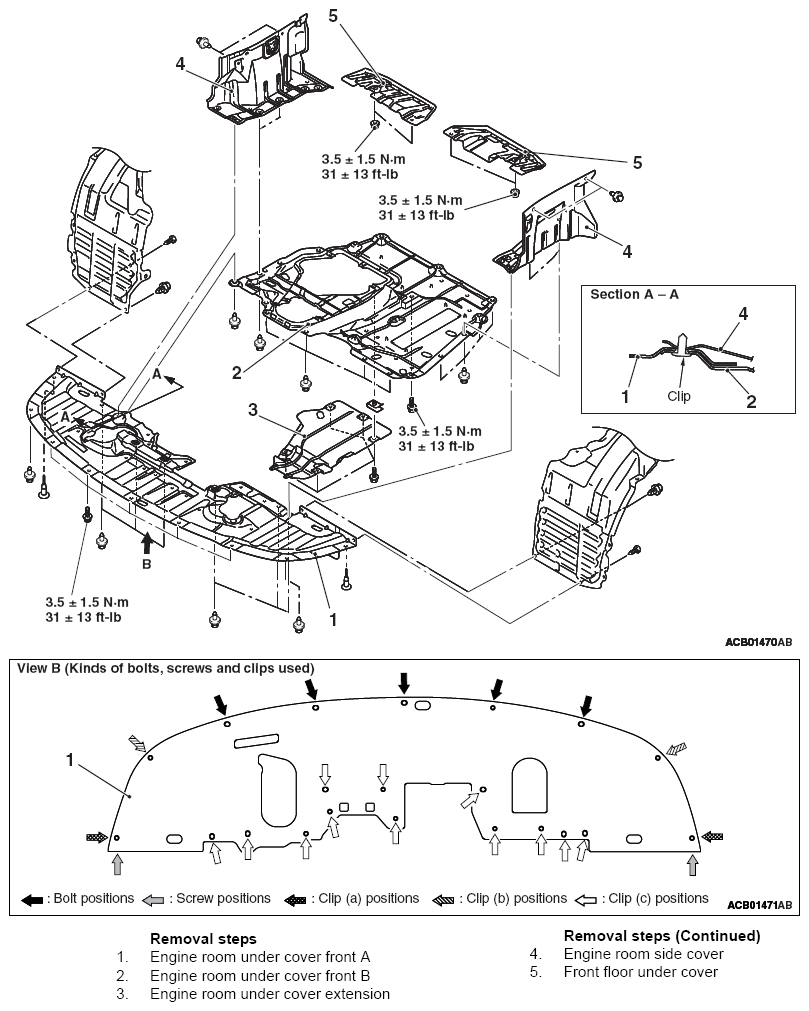

Fig 1: Exploded View Of Front Bumper Assembly Under Cover With Torque Specifications - Type A (Ralliart)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

FRONT BUMPER ASSEMBLY: Type A < Except RALLIART >

Fig 2: Exploded View Of Front Bumper Assembly Under Cover With Torque Specifications - Type A (Except Ralliart)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

FRONT BUMPER ASSEMBLY: Type B

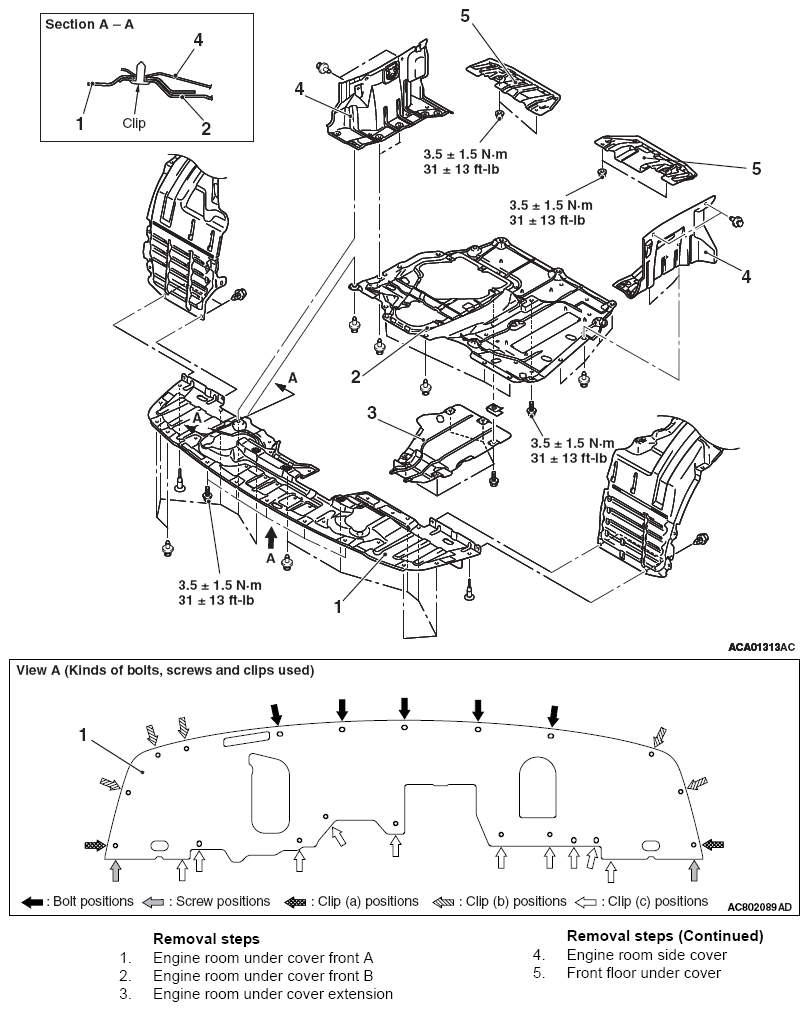

Fig 3: Exploded View Of Front Bumper Assembly Under Cover With Torque Specifications - Type B (Except Ralliart)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
