Removal And Installation: Notes

Pre-removal Operation

Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Removal (Refer to REMOVAL AND INSTALLATION .)
Air Cleaner Assembly Removal (Refer to AIR CLEANER .)

Post-installation Operation

Air Cleaner Assembly Installation (Refer to AIR CLEANER .)
Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Installation (Refer to REMOVAL AND INSTALLATION .)

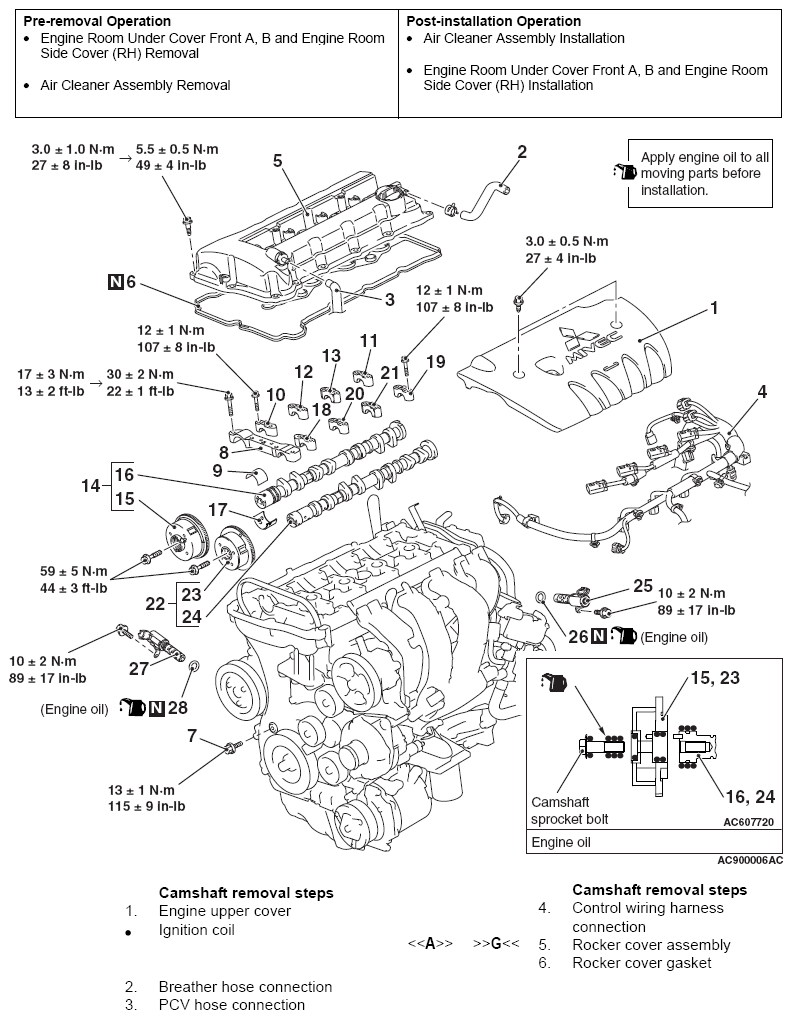

Fig 1: Camshaft Related Components With Torque Specifications (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

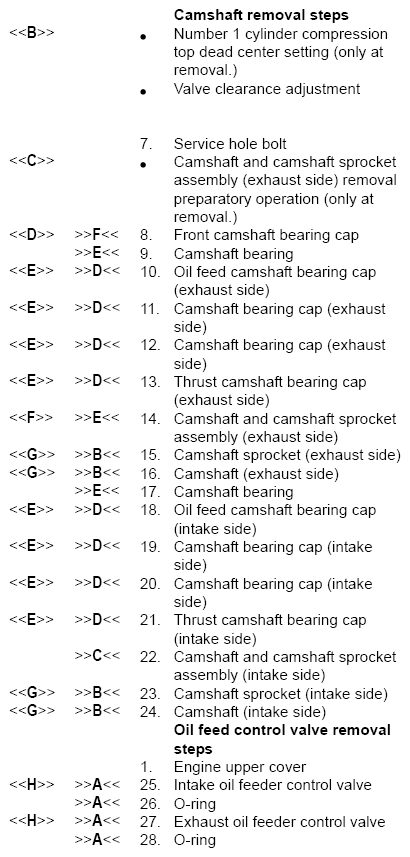

Fig 2: Camshaft Related Components With Torque Specifications (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
