Install rear window wiper motor

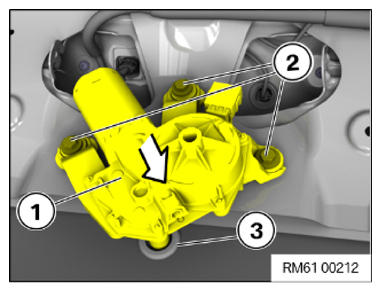

• Feed in the rear window wiper motor (1) through the grommet (3) and fasten with the screws (2).
• Tighten down screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock the plug connection (1) on the rear window wiper motor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TAILGATE TRIM PANEL .
• Refer to INSTALLING BOTH TRIM PIECES FOR THE REAR WINDOW FRAME .
• Refer to INSTALLING THE TRIM FOR THE TOP REAR WINDOW FRAME .
• Refer to INSTALLING THE SWITCH FOR THE AUTOMATIC TAILGATE OPERATION .
• Refer to INSTALLING WIPER ARM FOR REAR WIPER .
• Refer to CLOSE THE PROTECTIVE CAP .
