Installing both trim pieces for the rear window frame

NOTE: Description is for left component only. Procedure on the right side is identical.

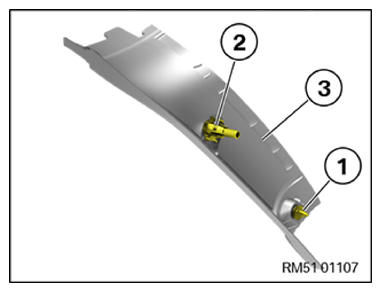

Check the clip (1) on the trim (3) for the rear window frame for damage and replace as needed.

Courtesy of BMW OF NORTH AMERICA, INC.

Check
Check the mounting (2) on the trim (3) for the rear window frame for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The mounting (2) on the trim (3) for the rear window frame is damaged.

Measure
- Replace the trim (3) for the rear window frame.
- Position the trim (3) for the rear window frame as shown and clip it in at the detent (2).
- Clip in the suspension of the rear deck (1).
Courtesy of BMW OF NORTH AMERICA, INC.
