Installing the tailgate trim panel

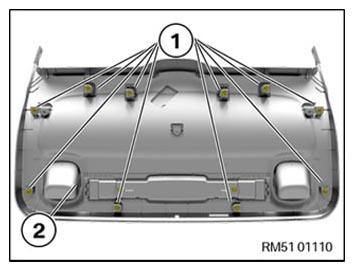

• Check the clips (1) on the tailgate trim panel (2) for damage and renew if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the tailgate trim panel (2) on the detents (1) and clip it in.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the bolts (1) at the tailgate trim panel (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Tailgate trim inner
  Sheet metal screw
  	1.8Nm

• If necessary, mount the warning triangle on the tailgate trim panel (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING BOTH TRIM PIECES FOR THE REAR WINDOW FRAME .
• Refer to INSTALLING THE TRIM FOR THE TOP REAR WINDOW FRAME .
• Refer to INSTALLING THE SWITCH FOR THE AUTOMATIC TAILGATE OPERATION .
