61 31 008 Removing and installing (replacing) steering column switch cluster (Countryman 2017-2023, except PHEV)

IMPORTANT: Shift wheels into straight-ahead position and do not alter this position during the repair work.
Do not under any circumstances turn the steering column switch cluster when the steering wheel is removed.

Preliminary work needed:

Remove STEERING WHEEL .
Remove THE TOP SECTION OF STEERING COLUMN CASING .
Remove STEERING COLUMN SHROUD LOWER SECTION .

Removal:

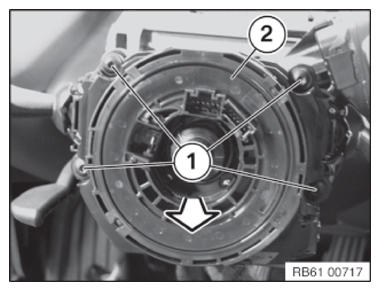

Unscrew the screws (1).

Remove steering column switch cluster (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

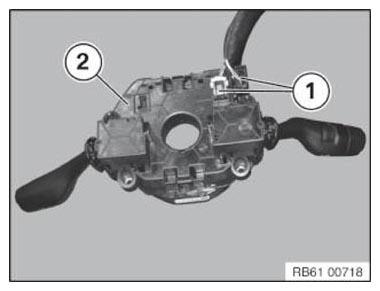

Unlock and disconnect connector (1) on steering column switch cluster (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect connector (1) to steering column switch cluster (2).

Courtesy of BMW OF NORTH AMERICA, INC.

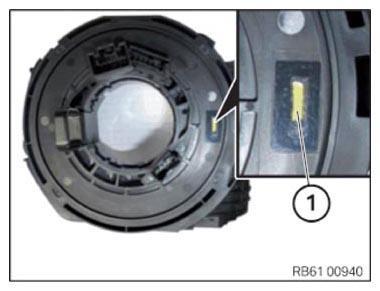

NOTE: Check neutral position of coil spring on steering column switch cluster.
Neutral position is correct only when the green or yellow mark (1) is clearly visible!

Courtesy of BMW OF NORTH AMERICA, INC.

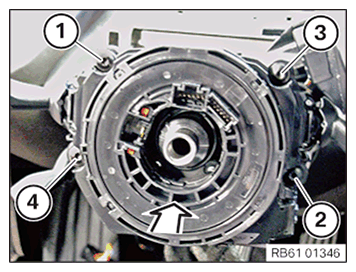

Install steering column switch cluster in arrow direction.

Retain steering column switch cluster pressed firmly against the steering column.

Tighten screws (1 to 4) in the order displayed.

Tightening torque 61 31 3AZ .

Fig 1: Steering Column Switch Cluster Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install STEERING COLUMN SHROUD LOWER SECTION .
Install STEERING COLUMN SHROUD UPPER SECTION .
Install STEERING WHEEL .
