32 31 004 Removing and installing/replacing steering column shroud upper section (Countryman 2017-2023, except PHEV)

Preliminary work needed:

• Shift steering column into "Extended" position.

Removal:

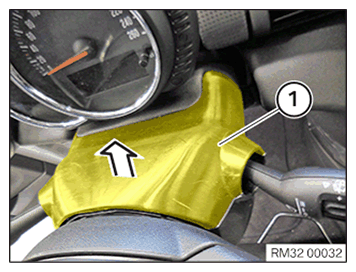

Unclip steering column shroud (1) in upward direction.

Courtesy of BMW OF NORTH AMERICA, INC.

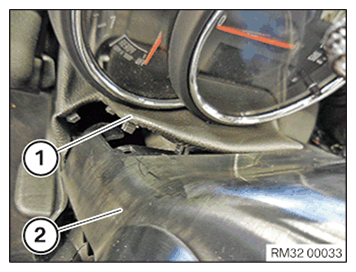

Unclip trim (1) from steering column shroud (2).

Remove steering column shroud.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position steering column shroud.

Clip trim (1) into steering column shroud (2).

Courtesy of BMW OF NORTH AMERICA, INC.

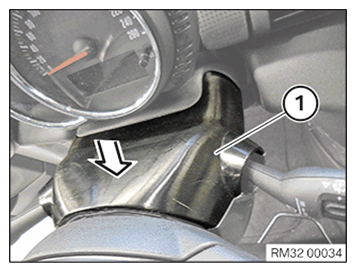

Clip in steering column shroud (1).

Courtesy of BMW OF NORTH AMERICA, INC.
